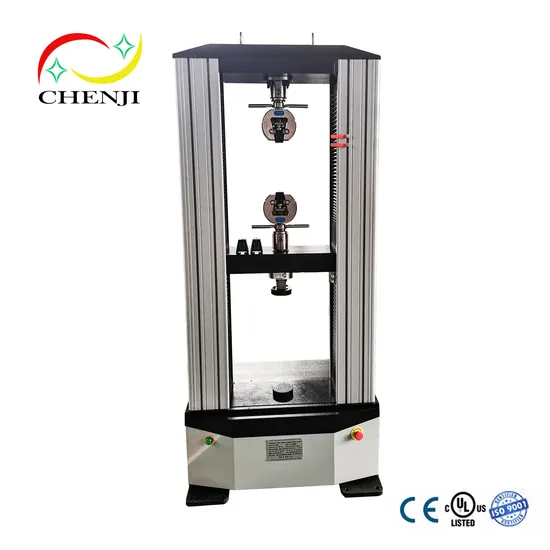

Double Column Steel Plastic Rubber Material Tensile Testing Machine Universal Testing Machine for Force Strength Testing

Product Description

ETM-100KN 10 Ton Double Column Steel Plastic Rubber Material Universal Testing Machine for Force Strength Testing Product Description
10kN - 100kN 10Ton Computer Controlled Electronic Universal Tensile strength Testing Machine
50KN 100KN Tensile Tester Price
Electric Loading Tensile Testing Machine 50kn 30kn 100kn traction Tester
1. Applications & functions
WDW series computer control electronic universal testing machine are suitable for tensile, compression, bending test of metal, steel, alloy, rubber, plastic, electrical wire and cable, composite, plastic profiled bar, waterproof roll, etc. They are essential testing instrument for quality testing section, university and college, research institution and industrial and mining enterprise.
2. Main Features
This machine adopts the most advanced and reliable load frame structure of ball screw electric mechanical universal testing machine, which equips alternating servomotor for driving crosshead, photoelectric encoder for displacement measure and high precision load cell to assure the high resolution of test.
Equipped with the computer &Software & printer, it can display, record, process and print the test results, and control test procedures as the set program and can draw test curves automatically in real time. Control software can automatically finger out routine data, such as tensile modulus of elasticity, extend rate after rupture, non-proportional extend strength Rp0.2, etc.
They can conform to the requirements of testing standards ASTM A370, ASTM E4, ASTM E9, ISO6892, ISO7438, ISO7500-1, EN 10002-4, GB/T228-2002, etc.
3. Main Technical Specifications:

Model	WDW-5/10/20	WDW-50	WDW-100	WDW-200/300	WDW-500/600
Max Load Capacity	5kN/10kN/20Kn	50kN	100kN	200kN/300kN	500kN/600kN
Load amplification	no range
Class of Machine	0.5
Load Range	0.4%-100%FS
Load Accuracy	Within ±0.5% of indicating load
Load Resolution	1/300000
Range of Deformation	4%-100%FS
Resolution of Deformation	0.01mm
Accuracy of Displacement	Within ±0.5%of indicating load
Resolution of Displacement	0.01mm
Range of Testing Speed	0.005 mm/min -500 mm/min, stepless and arbitrary setting
Effective Tensile Space	600mm
Max Compression Space	600-800mm
Power supply	1-phase, 220V-240V, 50Hz/60Hz Or specified by users			3-phase, 380V-415V, 50Hz/60Hz Or specified by users

Smart Software for Tensile /Compression/3 point bending Testing /Customized Auto Software Control Computerized 20kn 50kn 100kn tensile testing machineServo motor installed with high accuracy, 24months for quality guarantee. /Customized Auto Software Control Computerized 20kn 50kn 100kn tensile testing machine
Load cell with 0.5 accuracy and the 1 accuracy , US Transcell Brand / also we have China Local Brand.
China Factory Auto Software Control 100kn Universal Test Machine for Material Mechanical Testing
Workshop display, quality inspection, package and delivery
4. Standard Accessories

Description	Remarks
Control PC	Dell brand
Control card & software
Printer	HP Color Inkjet printer
Servo motor & servo driver	Imported Japanese Panasonic Brand
High-precision Load Cell	Imported American Celtron Brand
High-precision Photoelectric Encoder
High-precision Ball Screw Lead
Tension Test Accessories	Wedge grips for round and flat specimen
Compression Test Accessories	Round Compression Plate
Bending Test Accessories	3-point bending flexure
Electronic Extensometer

5. Widely Used for rubber /plastic material / steel bar/steel Rebar etc... By brand as the measuring system by computer host, complete set of machine test, the working state control, data acquisition, processing, display the print test results, and other functions; Equipped with testing machine for Chinese intelligent test package, according to national standards, international standards, or provide the standard method of measurement of various materials, the mechanical property parameters of bin to statistics and data processing; Then the output of various format required reports and curve pattern.
Customized Auto Software Control Computerized 20kn 50kn 100kn tensile testing machine
The most Popular Model WDW-100kn Material Yield Strength universal testing machine Price
6. Related Products:
(Click the picture for reading more of its specification introduction )
Click the picture
Click the picture
Click the picture
Click the picture Packaging & Shipping
7. Machinery Delivery
Electronic Loading Auto Control ASTM ISO GB JIS 100kn universal testing machine
We prepare the ocean delivery to your port, and we supply online teaching video for operating the universal Tensile Tester .
China Jinan 300kN 30ton universal test machine ASTM GB ISO JIS Steel Plastic Wood Composite Material Strength Testing

---
