Multi 3-Core Flat Cable Wire Stripping Machine

Product Details

Product Details

Product Description

Product Description

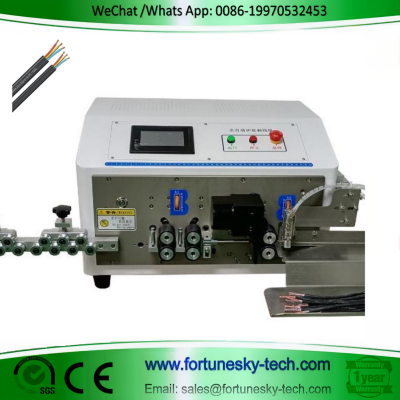

Introducing the JT-504: The All-in-One Flat Cable Processing MachineThe JT-504 Automatic Multi 3-Core Flat Cable Stripping Machine revolutionizes cable processing with its advanced features and unmatched versatility. This user-friendly machine tackles various cable types, maximizing efficiency and precision for flat cable applications.
Intelligent Control and User-Friendly Design:
Smart Processing: The cutting-edge 64-bit intelligent control system simplifies operation with a user-friendly touchscreen interface (available in Chinese and English).
Streamlined Workflow: Store hundreds of presets for frequently used settings, allowing for quick retrieval and lightning-fast operation.
Unmatched Versatility for Flat Cables:
Broad Cable Compatibility: Handles a wide range of cables, including 3-core flat cables, electronic wires, new energy wires, silicone wires, high-temperature wires, Teflon wires, and insulated wires.
Arbitrary Peeling Adjustments: Fine-tune stripping depths for any cable, ensuring precise results for various applications.
Double Your Efficiency: Strip both the inner and outer layers of 3-core flat cables simultaneously, saving you valuable time.
Technical Specifications:
Model: JT-504
Dimensions: 600mm x 455mm x 380mm
Weight: 45kg
Display: 4.3-inch Touchscreen (Chinese and English)
Power Supply: AC175V-250V, 50/60Hz
Power Consumption: 200W-680W
Cutting Length: 0.1mm-99999.9mm
Stripping Length: Head: 0.1-250mm, Tail: 0.1-80mm
Cutting Core Wire Outer Diameter: 1-10mm
Cutting Tolerance: 0.002 x L mm
Intermediate Stripping: 12 positions (Can be added)
Conduit Diameter: 1mm-10mm
Tool Material: Tungsten Steel/Imported High-Speed Steel
Drive Mode: 6-wheel Drive
Wire Stripping Rate: 1500-2500 strips per hour (adjustable)
Wire Pressure Adjustment: Manual Skate Adjustment
Pulse Equivalent: 1 pulse = 1 step
In-line Error: 0.02mm
Blade Motor Accuracy: 0.1mm per step (Silent Hybrid Stepper Motor)
Additional Features: Automatic outgoing line, automatic incoming line, timing start
The JT-504 is a powerful and versatile solution for all your flat cable processing needs. This innovative machine offers intelligent control, unmatched versatility for flat cables, and user-friendly features, ensuring efficient, precise, and high-quality results.
