Pre- Engineering Processing Machine Steel Structure Workshop Manufacture CNC Beam Drilling Machine

Product Description

Pre- Engineering Processing Machine Steel Structure Workshop Manufacture CNC Beam Drilling Machine
MACHINE APPLICATION

1.The machine is mainly used for the drilling processing of H-shape steel, box beam and channel steel of steel structure, bridge, three dimensional garage and petrol platform
MACHINE FEATURES

MAIN FEATURES: Seven CNC axis control

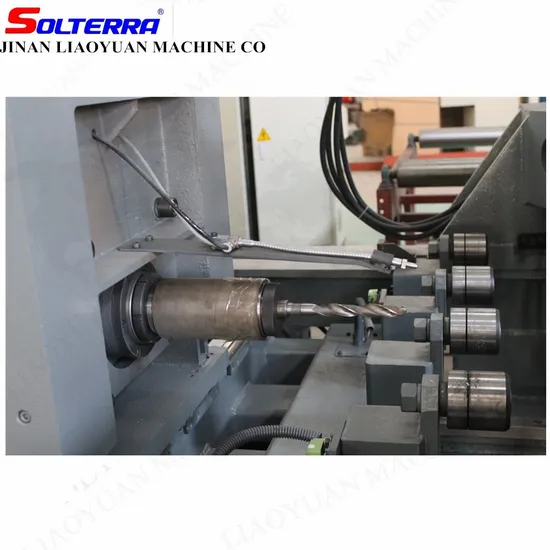

Simultaneously drilling on three sides of H-beam
Direct conversion between CAD and CAM is available.
Ideal equipment used for steel structure processing.

TECHNICAL PARAMETERS

TECHNICAL INFORMATION:

Model		TDD1250
H beam size (Web Height x flange width ) mm	Max.	1250 x 600
	Min.	150 x 75
Length (mm)	Auto feeding	≥2700
	Manual feeding	≥610
Feeding stroke(mm)	Vertical drilling unit	325
	Left and right drilling unit	140
Displacement of horizontal spindle(mm)	In the direction of workpiece length	520
	Above vertical base level	20~480
Rated power(KW)		28
Overall dimension(L x W x Hmm)		4450 x 3050x 3520
Weight(Kg)		≈7500 (Appr.)

PACKAGES AND DELIVERY

LIAOYUAN CO' SERVICE
Our Service

Pre-Sales Service After-Sales Service
* Inquiry and consulting support. * Training how to instal the machine,
* 24 Hours on services Phone, email and in person support training how to use the machine.
* View our Factory. * Stay in touch with the customers even after
* Electrical & mechanical technical support the deal. never ignore their calls.
* Parts ordering * Engineers available to service machinery
overseas.
LIAOYUAN COMPANY PROFILE
JINAN LIAOYUAN MACHINE COMPANY INFORMATION
Jinan Liaoyuan Machine Co is located in Jinan, Shandong province of China. Our company is a one of the world leader Manufacturers in CNC machine tools. Jinan Liaoyuan has focused on top quality CNC machine products for over 20 years in China. We started as a small operation, but now have become one of the leading suppliers in the CNC machine industry in Shandong. We are a manufacturer and trader specialized in the research, development and production of all kinds of CNC machine, such as: CNC Angle Steel Punching machine, CNC Angle Steel drilling machine, CNC Plate Drilling Cutting machine, CNC Beam Drlling Marking Beveling machine, CNC Band Saw Cutting Machine and all kinds of CNC machine center and so on. Jinan Liaoyuan Machine provide turkey solution and perfect service to satisfy your production needs.
JINAN LIAOYUAN CNC HISTORY * Founding period (1991-2008)
* Continuous growth (2008-2013)
* Innovation expansion (2013-2017)
* JINAN LIAOYUAN MACHINE today

LIAOYUAN MACHINE QUALIFICATION
The machines manufactured by JINAN LIAOYUAN are being used in the fields from steel structure to angle towers, metal construction, pipe, pressure vessels, ship construction, bridge construction, wind-energy, heat exchanger industry fields, and they are also offered for usage in many other different fields.

FAQ


Question 1. Are you a Manufacturer or a trading company?
Answer 1. We are not a trading company. We are the top Machine Manufacturer, which involves Raw material casting,Machine body processing,Machine assembling,Painting,Machine quality Inspection, and more.
Q 2. What is the minimum quantity for order ?
A2: Normaly One Set. and We will give some discounts if you can buy one complete set of Machine.
Q3. Do you have stock product ready to deliver?
A 3. We have many machines in stock, So We can guarantee the fast delivery time
Q4. How do you deliver the finished products?
A 4, For FCL, We delivered by Sea
For LCL, We delivered by Sea and by Plane for only urgent requirement
For Spare Parts,We delivered by Courier,TNT, FEDEX,DHL,UPS,EMS, and Etc.

---
