Plastic Clamshell Dome Lid Punnet Vacuum Forming Thermoforming Machine

Product Description

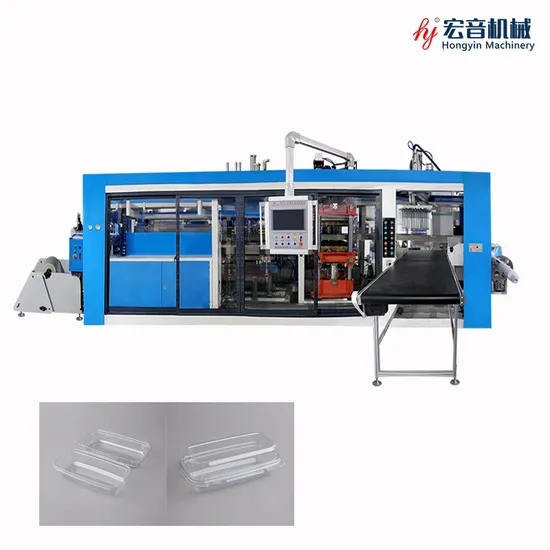

Fully-Automatic Vacuum Thermoforming Machine for Plastic Container
The vacuum machine overview:
HY-72/76 Plastic vacuum forming machine is designed by the principle of mechanical-electrical-pneumatic integration. It adopts PLC control system, panel and digital power control. This full-automatic forming equipment for thermoforming plastic sheet includes feeding, heating, forming, cooling, mold ejecting, cutting by one process.
Application:
HY-72/76 vacuum machine is mainly applied to plastic sheet material molding, such as PS, HIPS, PVC, PET, PP and flocking sheet, etc. which produce all kinds of trays, trays for medicine injection, oral liquid, vegetables, telephones, cookies, tool, hardware, electron and disposable tableware, etc.

Prameters:

1.Max Forming area	720*760mm
2.Sheet width	610-760mm
3.Forming height	0-150mm
4.Thickness of sheet	0.2-2.0mm
5.Production speed	15-20 times/min
6.Mould-up move	Electromotion
7.Vacuum pump(outlay)	4kw/150m3
8.Air source(Air vol.(m3/min))	6.5kg/cm 1-1.5m3 /min
9.Air source(Pressure(mpa))	0.6~0.8mpa
10.Heater power(kw)	25KW
11.General power max(kw)	15-20 KW
12.Power	380V 50/60HZ three phases
13.Air compressor	15KW/20HP (remarked by customer)
14.Dimension	(L)8800*(W)1500*(H)2500mm
15.Weight	3000kg

About Ruian Hongyin Machinery Co., Ltd Service.
1. Pre-sales Service
Hongyin MACHINERY has a specialized and efficiency working team. If you are new on the plastic forming machine area, we are glad to give you specialized suggestion of the whole work.
2. Shipping Service
Hongyin MACHINERY has a specialized and independent department to arrange the shipment. We will prepare all the necessary documents so as to arrange the delivery smoothly.
We cooperate with the most famous shipping company in China, they could provide the best and economic shipping ways to the destination.
3. Installation Services
Installation Services are available with all Hongyin Company machines. We could dispatch technician to the Buyer's factory for installation and preparation of the machines.
The buyer needs to supply the round trip tickets, food, hotel cost and daily salary.
4. Clients Training Services
The buyer could also send your own technician come to Hongyin factory to learn how to operate machines. Our technician will teach and train the learners hand by hand till he can operate machine by himself.
5. After Sales Service
Hongyin Company machines guarantee time is one year.
Many easy broken spare parts will be prepared in the tool box together with machines.
If you are interested in our machine, please feel free and contact me.
