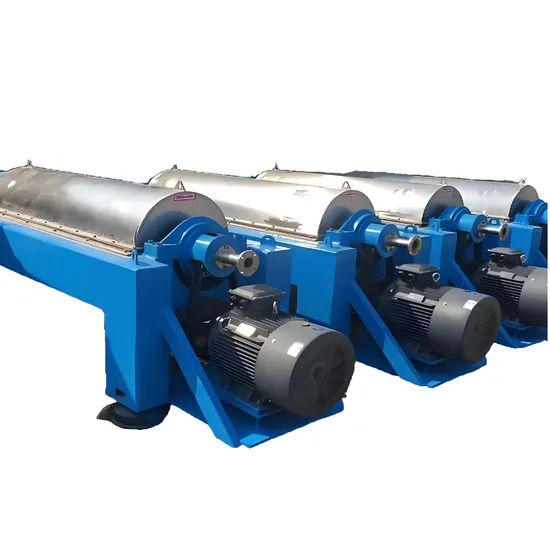

Three Phase Separation Decanter Separator

Product Description

Product Description Application
The LWS Three Phase Decanter is a new type of three phase horizontal screw decanter centrifuge mainly suitable for three phase separation oil,water and slag in the oil production line,and also applicable to three phase separation of liquid-liquid-solid from olive oil,palm oil,coal tar and other similar materials.
This decanter centrifuge continuously produce with a high production capacity and small energy consumption per unit,but also has the best separation effect,minimum material loss,most convenient operation and most economical installation and maintenance costs,the new light and heavy liquid phase distribution devices and reliable labyrinth seal structure are used to achieve the best oil and water separation,the advanced slag-discharge structure is also used to achieve the continous and smooth solid phase slag discharge avoiding the occurrence of blocking materials,while eliminating solid phase and water mixing in downtime.
The decanter centrifuge adopts double variable-frequency stepless speed regulation for start and speed control with simple debugging and high adaptability.

Reference standard
1. Main standard of the national machinery industry.
JB/T502-2004 "spiral discharge sedimentation centrifuge"
JB/T9095-1995 "centrifuge, separator forgings, welding conventional NDT technology standard"
2. The national main standard
GB10894-89 "separation machinery noise sound power level measurement engineering method"
Structure

1. drum; 2. screw pusher; 3. planetary gear differential; 4. base; 5. stainless steel cover; 6. absorber; 7. motor;

Three phase decanter centrifuge specialy used for separate sludge and water.
1.The integral design of the machine adopt international advanced type of structure design in recent years, m
otor puts beside, cover flat on flame structure, it causes that the machine maintenance is more convenient, low
noise, small vibration, easy installation.
2.Stainless steel cover adopts enclosed design, peculiar smell gas of the machine in the work is not be leaked.
It leads that the work environment satisfies the requirements.
3.Drum material adopts stainless steel 304.
4.Vibration system adopts drum high modulus of elasticity of absorbing vibration damping device. Compared to
previous models, the machine vibration is greatly reduced.
5.Electrical control adopts double frequency automatic control system
6.The other main components adopt joint venture or wholly-owned or domestic famous brand products.
Technical Parameters

Model	Diameter (mm)	Bowl Speed (rpm)	G-force	Capacity (m3/h)	Main Power(kw)	Weight(kg)	Overall Size(L × W × H)(mm)
LWS420	420	3300	2550	5~20	30/11	3610	3331 × 990 × 1066
LWS450	450	3300	2739	4~50	30/11	3655	4000 × 1120 × 1239
LWS500	500	3200	2860	5~45	55/11	4213	4489 × 1160 × 1350
LWS540	540	2800	2366	5~50	45/15	5290	4587 × 1285 × 1368

---
