Waterproof 800W 16.8V 29.4V 42V 50.4V 54.6V 58.8V 67.2V 71.4V 84V 10A 15A 20A 25A 30A Lithium Li-ion Lipo Battery Charger

Product Description

Product features:

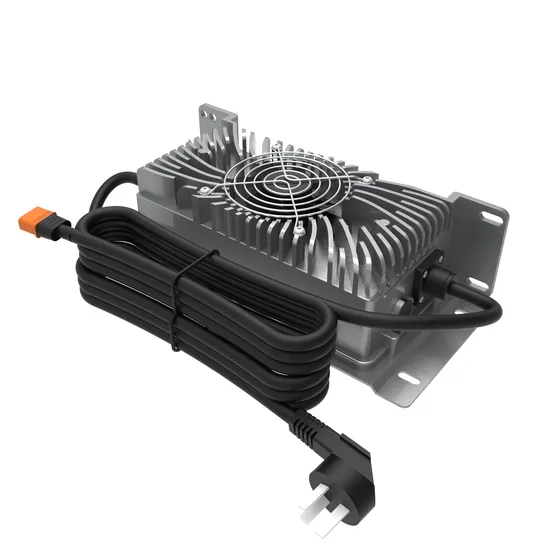

WP800 is a 800W waterproof battery charger with 4 and 3 stage charging curve In addition to the embedded pre-defined charging curves,the default curve is programmable and thus able to accommodate different types of batteries,such as Lead- acid batteries ( SLA, VRLA, GEL, AGM) and Lithium batteries(Li-ion,LiFePO4 and Lithium manganese). WP800 can be set different charging voltage value, charging current value and charging end current value according to customer's own requirements. This charger has aluminium alloy housing and IP68 class water-proof design, high reliability performance.
Intelligent charging programm for different battey type, like Li-Ion , LiFePO4 and Pb-Acid.
800W output power at AC220V~240V input , 500W at AC 100~120V, and 0.98 power factor.
Suitable for 12V~60V Li-Ion, LiPo, LiFePO4 and Pb-Acid (SLA, VRLA, AGM, GEL) battery types.
Multiple protections for overcurrent, overvoltage, and short circuit error.
IP68 class water-proof design, high reliability performance
Safety certifications, cTUVus, CB, CE

Detailed technical indicators:
Rated input: 100~240V
Rated output: 12V~60V 800W (600W@AC100V), see the attached table for output voltage & current
Suitable batteries: 12V~60V li-ion, LiFePO4 battery, 12V~60V lead-acid (VRLA, AGM, GEL) batteries
Charging process: "pre-charge + C.C. charge + C.V. charge + cut-off" 4 stages for Li-Ion/LiFePO4 type;
"pre-charge + C.C. charge + high C.V. charge + low C.V. charge" for Pb-Acid type.
Charging indication: LED Red color--charging; Yellow--80% charged; Green--100% charged
Erros protection: overcurrent, overvoltage, short circuit, battery reverse connection, etc
Power efficiency: 94% @ 220V full load output
Back Drain current: less than 1.5 mA (current flowing from battery to the charger when AC off)
Operating temperature: - 10~+40 ºC
Heat dissipation: fan cooling
AC Input plug: AC cable / plug is defined when order
DC Output plug: standard XT-60/90 plug(20A/40A Max), output wire AWG12/14, length 1.5m
Safety certification: CE, cTUVus, CB
Safety standards: GB/T13837; GB17625; GB8898; EN60335; EN62233; EN55014; EN61000
Dimensions Weight: 288x 130 x 82mm/2500g

P/N of all WP800-xxxyyyy
Models for Li-Ion battery charger:

P/N	Charge Voltage	Charge Current	Cut-off current	Suitable battery
WP800-168400	16.8V +-1%	40A +-7% [30A@AC100V]	3.0A +-0.4A	4S LI-ION 30~300Ah
WP800-294250	29.4V +-1%	25A +-7% [20A@AC100V]	2.5A +-0.2A	7S LI-ION 25~250Ah
WP800-420200	42.0V +-1%	20A +-7% [15A@AC100V]	2.0A +-0.2A	10S LI-ION 20~200Ah
WP800-588150	58.8V +-1%	15A +-7% [10A@AC100V]	1.5A +-0.15A	14S LI-ION 15~150Ah
WP800-714100	71.4V +-1%	10A +-7% [8A@AC100V]	1.0A +-0.15A	17S LI-ION 10~100Ah

Models for LiFePO4 battery charger:

P/N	Charge Voltage	Charge Current	Cut-off current	Suitable battery
WP800-144400	14.4V +-1%	40A +-7% [30A@AC100V]	3.0A +-0.4A	4S LIFEPO4, 30~300Ah
WP800-288250	28.8V +-1%	25A +-7% [20A@AC100V]	2.5A +-0.3A	8S LIFEPO4, 25~250Ah
WP800-432180	43.2V +-1%	18A +-7% [15A@AC100V]	2.0A +-0.3A	12S LIFEPO4, 20~200Ah
WP800-576150	57.6V +-1%	15A +-7% [10A@AC100V]	1.5A +-0.2A	16S LIFEPO4, 15~150Ah
WP800-720100	72.0V +-1%	10A +-7% [8A@AC100V]	1.0A +-0.2A	20S LIFEPO4, 10~100Ah

Models for Pb-Acid (VRLA, AGM, GEL, SLA) battery charger

P/N	Charge Voltage	Charge Current	Floating voltage	Suitable battery
WP800-147400	14.7V+_1%	40A+-7% [30A@AC100V]	13.8V+-1%	12V 100~300Ah
WP800-294250	29.4V +-1%	25A +-7% [20A@AC100V]	27.6V +-1%	24V 80~ 250Ah
WP800-444180	44.1V +-1%	18A +-7% [15A@AC100V]	41.4V +-1%	36V 60~200Ah
WP800-588150	58.8V +-1%	15A +-7% [10A@AC100V]	55.2V +-1%	48V 60~ 200Ah
WP800-735100	73.5V +-1%	10A +-7% [8A@AC100V]	69.0V +-1%	60V 40~150Ah

---
