Product Details
Product Description
Product Description

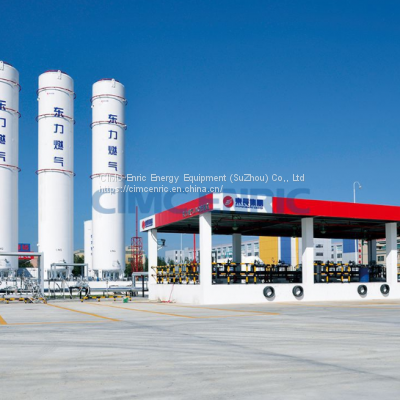

LNG Storage Tank
Cryogenic liquid storage tanks of CIMC ENRIC in strict accordance with the national standard design and manufacture, can also according to customer requirements design and manufacture of volume reached more than 200 m3 after and of the cryogenic liquid storage tank, and can provide various specifications of the carburetor, regulating lever measurement, gas buffer tank, combined pressure regulating device (PCM) PLC station control system (such as unattended) gas application form a complete set of equipment.
DESCRIPTION
Large-Sized Cryogenic Liquid Normal-Pressure Tank
| Cryogenic Liquid Cluster Tanks (One outer tank and several inner tanks)
|
Thermal-insulating mode: Perlite powder accumulation insulation
Capacity: 200m3-50000m3
Working pressure: 10kPa-25kPa
Medium: LOX, LIN, LAr, LNG, LC2H4 and ect
Structure type: Vertical, at bottom, single containment or full containment
| Thermal-insulating mode: Perlite powder accumulation insulation
Capacity: 600m3-3000m3
Working pressure: 0.3MPa-1.0MPa
Medium: LOX, LIN, LAr, LNG, LCO2 and ect
Structure type: Adopt the structure type of inner tank groups & outer tank
|
Cryogenic liquid storage tank, as a cryogenic insulation pressure vessel, servered for LNG, LOX, LIN, LAr, LCO2, LC2H4, LH2 and etc, is designed with double layers and vacuum structure. Inner vessel used to store liquid. Besides, interlayer between inner vessel and outer jacket be filled with perlite or multi-layer insulating materials with heat-insulated property to achieve excellent insulation performance.
Main Technical Parameters
Thermal-insulating mode: Perlite powder accumulation insulation
Capacity: 200m3-50000m3
Working pressure: 10kPa-25kPa
Medium: LOX, LIN, LAr, LNG, LC2H4 and ect
Structure type: Vertical, at bottom, single containment or full containment
| Thermal-insulating mode: Perlite powder accumulation insulation
Capacity: 600m3-3000m3
Working pressure: 0.3MPa-1.0MPa
Medium: LOX, LIN, LAr, LNG, LCO2 and ect
Structure type: Adopt the structure type of inner tank groups & outer tank
|
Cryogenic Sphere Tank
| Vacuum Insulated Storage Tank
|
Thermal-insulating mode: Perlite powder accumulation thermal insulation &
micro-positive Pressure dry nitrogen
Capacity: 500m3-3000m3
Working pressure: 0.3MPa-1.0MPa
Medium: LIN, LOX, LAr, LNG, LCO2, LC2H4 and LPG
Structure type: Both inner sphere & outer sphere or inner sphere & outer
cylinder type
| Volume: ≤350m3
Working Pressure: ≥0.1MPa
Thermal-insulating Type: Vacuum powder insulation, multi
layer thermal insulation
Media: LNG、LOX、LIN、LAr、LCO2、LC2H4、LH2 and etc.
Type: Vertical, horizontal
|
Performance Advantages
Unique high vacuum insulation technology to keep good insulation performance;
Special technology to ensure the stability of vacuum degree;
Modular piping system and high configuration components improve equipment performance and durability;
I-DATA-TANK realizes intelligent monitoring of tank pressure and liquid level.
Certifications
Production license of pressure vessel type A3, C2, B4, D. Installation license of GC1 industrial piping, ISO9001/IATF16949:2016 quality management system certificaiton, ISO14001 environmental protection system certification and GB/T45001 occupational health and safety management system certification, ASME certificate with "U", "S" and "T" stamp, Factory Approval certificate from Classification Society of CCS, BV, DNV and etc.
Main functions
Key Features
Cold-stretched application to reduce material cost
Unique high vacuum insulation technology to keep good insulation performance
What is the purpose of the product?
Store and filling cryogenic liquid.
What benefits will you get from product?
Store cryogenic liquid in good condition and avoid evaporation in large amount
Use
Widely used in petrochemical, coal chemical, chemical, medicune, environmental protection, steel, power plant, medical, food, petroleum, electronics, gas and other related industries.
Advantages
Primary advantages
Why should I buy this product?
What makes this product different to competitor products?
More than 20 years' experience in cryogenic equipment field
Stable performance and updated technical craft
Provide one - stop supply chain services of overall solutoins
Our service
The goods are made of best materials, with first class workmanship, brand new, unused and correspond in all respects with the quality, specifications and performance as stipulated in contract. The goods will give satisfactory performance for a period of 12 months starting from the date of delivery when correctly mounted and properly operated.
Payment method
TT transfer and LC are both acceptable.
Export cases
Main markets
Germany, France, Netherlands, Russia, Kazakhstan, Indonesia, Singapore, Malaysia, India, Thailand, Vietnam, the Philippines, Australia, the USA, Mexico, Bolivia, Saudi Arabia, Oman
If you need it, come and contact CIMC ENRIC！
>>
