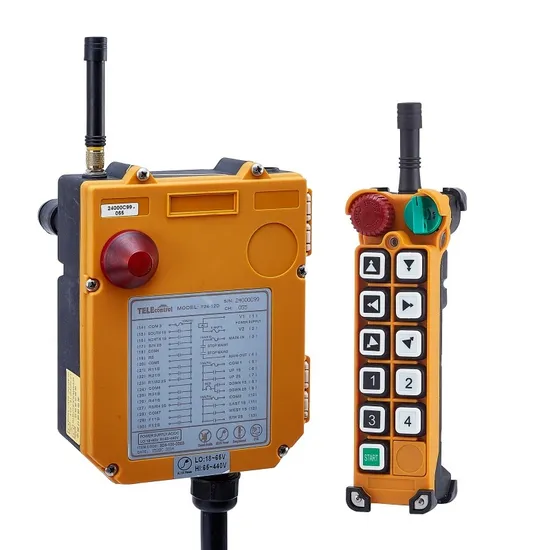

Telecontrol Uting F24-10d Industrial Radio Remote Control Crane Wireless Controller

Product Description

Telecontrol Uting F24-10D 10 Double Speed Wireless Industrial Crane Radio Remote Control
Product Specifications : 12V UHF : The Receiver power supply 12V AC DC . Frequency UHF 425~446MHz . Arrow buttons
24-48V UHF : The Receiver power supply 24-48V AC DC . Frequency UHF 425~446MHz . Arrow buttons
100-440V UHF : The Receiver power supply 100-440V AC DC . Frequency UHF 425~446MHz . Arrow buttons 11 operation buttons (10 double-speed buttons+ 1 START)
2. 1 standard mushroom-head rotating emergency stop button
3. 15 control contactors
4. With battery voltage warning device, and the power supply will be cut off during low power.
5. Safe switch key is to prevent from the unauthorized user.
6. Program the button function by computer interface.

F24-10D Transmitter Parameters
Material			Glass-Fiber PA
Enclosure protection class			IP65
Frequency range			UHF: 425-446 MHz
Transmitter power			≤10dBm
Transmitter power supply			2 AA alkaline batteries (not included)
Safety code			32 bits (4.3billion)
Temperature range			-40ºC-+85ºC
Control distance			up to 100 meters (it is available to customized long distance up to 200m)
Size			186x61x51mm
Weight			265g (without battery)
F24-10D Receiver Parameters
Material			Glass-Fiber PA
Enclosure protection class			IP65
Frequency range			UHF: 425-446 MHz
Receiver sensitivity			-110dBm
Receiver power supply			48/220/380V (optional)
Safety code			32 bits (4.3billion)
Temperature range			-40ºC-+85ºC
Cable length			1.65m (Other length can be customized)
Output contactor capacity			8A sealed relay output (with AC 250V/10A relays, 10A fuse)
Size			210x162x107mm
Weight			1220g

---
