Automatic Pet PP Bottle Blow Molding Machine

Product Description

Automatic PET PP bottle Blow Molding Machine
Full-automatic blow molding machine use FESTO parts It's widely to produce all kinds PET bottles. It can produce 0.1L -2L bottle with 2 or 4, 6 cavity mold. It's the best choose for the carbonated, mineral, pesticide, cosmetics, wide-mouth and water, oil and other packing container making company.
MACHINE FEATURES:
1. Machine use of advanced PLC control system, stable in performance, automatic preform feeding.
2. Strong penetrability and good and swift distribution of the heat by letting the bottles rotate by itself and revolute in the rails simultaneously in the infrared preheater
3. High adjustability to enable the preheater to preheat preforms in shapes by adjusting the light tube and the length of the reflecting board in the preheating area, and eternal temperature in the preheater with an automatic thermostatic apparatus.
4. High safeties with security automatic-locking apparatus in each mechanical action, which will make the procedures turn into a state of safety in case of a breakdown in certain procedure.
No contamination and low noise with the air cylinder to drive the action instead of the oil
Pump.
6. Air route design is divide into two parts,
7. Ideal effect of the chilling with the chilling system
8. Low rejection rate: Less than 0.3percent

	ITEM	UNIT	HY-A2	HY-A4	HY-A6
Machine	Clamping force	Kn	1500	2000		2500
	Clamping stroke	mm	230	230		230
	Stretching stroke	mm	370	370		370
	Bottom stroke	mm	70	70		70
	Number of cavities	Cavity	2	4		6
Container	Max. container volume	ltr	2L	2L		1.5L
	Max Neck diameter	mm	50	50		50
	Max .container diameter	mm	200	200		200
	Max. container height	mm	330	330		330
	Theoretical output	bph	1600-2000	3200-4000		4000-5000
Electrical System	Total power	KW	30	40		50
	Heating power	KW	28	38		48
	Power supply	380V/50HZ
	Power consumption	KW/H	15 0.5L	22 0.5L		28 0.5L
Air system	Operating pressure	Mpa	0.8	0.8		0.8
	Low pressure consumption	L/min	600 0.5L	1000 0.5L		1300 0.5L
	Blowing pressure	Mpa	3.0	3.0		3.0
	High pressure consumption	L/min	1000 0.5L	2000 0.5L		3000 0.5L
Machine size	Main machine(L×W×H)	cm	200*170*180	350*170*180		460*170*180
	Preform auto-loader	cm	115*95*185	115*95*185		115*95*185
	Machine weight	Kg	2000	3000		4000

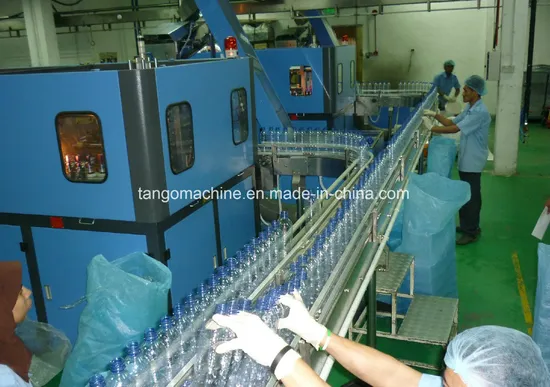

At client workshop
Electricity list brand
We also have semi-auto type blow molding machine
Our company and certificate

---
