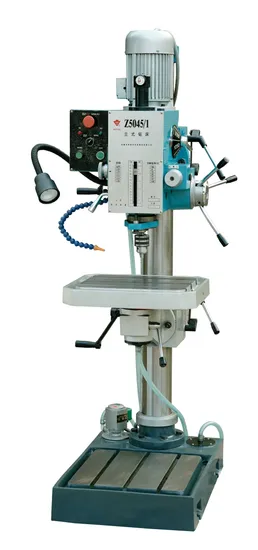

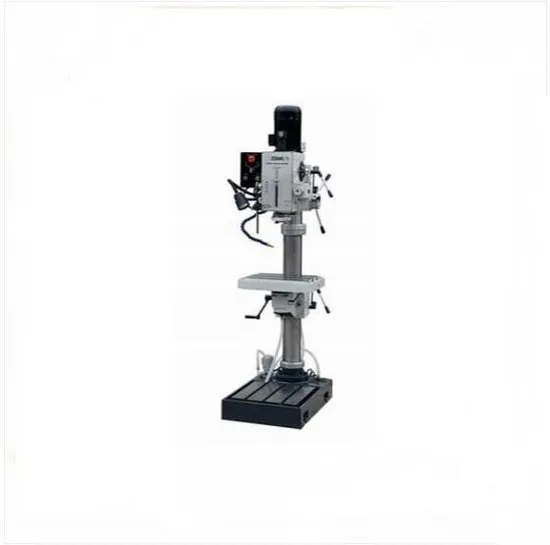

Z5032 series: spindle is not auto-feedingZ5032/1 series: spindle is auto-fedding1) Drilling, milling and tapping2) Head swivels 360 degree horizontally3) Headstock and Worktable up & down perpendicularly4) Super high column5) Precision micro feed6) Positive spindle lock7) Distinct auto device for releasing tools, operate easily8) Geared drive, lower noise
| Specification | Z5032/1 Z5040/1
Z5045/1 | Z5032 Z5040 Z5045 |
| Max.drilling capacity | Φ32mm/Φ40mm/Φ45mm(1-1/4"/1-5/8"/1-3/4") |
| Spindle taper | MT3/MT4/R8 |
| Spindle travel | Φ130mm(5-1/8") |
| Step of spindle speed | 6 steps |
| Range of spindle speed 50Hz | 80-1250rpm |
| 60Hz | 95-1500rpm |
| Step of spindle auto-feeding | 6 steps | / |
| Range of spindle auto-feeding amount | 0.06-0.30mm/r | / |
| Min.distance from spindle axis to column | 290mm(11-3/8") |
| Max.distance from spindle nose to worktable | 725mm(28-1/2") | 700mm(27-1/2") |
| Max.distance from spindle nose to stand table | 1125mm(44-1/4") |
| Max.travel of headstock | Φ250mm(10") |
| Swivel angle of headstock | 360° |
| Max.travel of worktable bracket | Φ600mm(23-5/8") |
| Worktable size of avaliablity | 380×300mm | 730×210mm |
| Swivel angle of table horizontally | 360° |
| Table leaned | ±45° | / |
| Size of stand worktable of avaliability | 417×416mm |
| Motor Power | 0.75KW/1.1KW/1.5KW |
| speed of motor | 1400rpm | 1400rpm |
| Net weight/Gross weight | 440kg/490kg | 470kg/530kg |
| Packing size | 1850×750×1000mm | 1850×950×1000mm |
| Loading amount/20" container | 18pcs | 12pcs |
Complete service by free of charge within 13 months after B/L date Technical service will be given forever at any time. Any questions during operation, can contact us freely by email, or contact on line by Skype, WhatsApp, etc. Also can talk face to face during fairs. You will get response within 20 hours.
