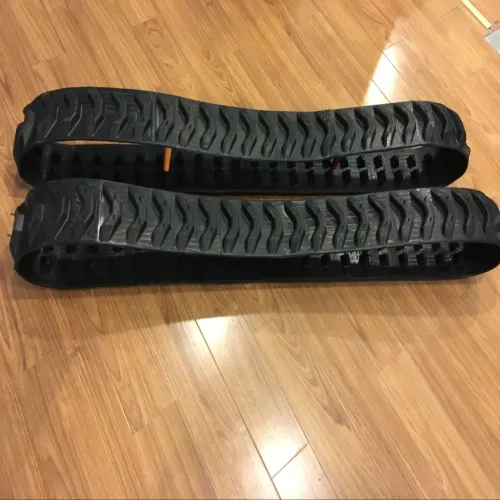

Small Rubber Tracks 150-65-42 for Crawler Robot Undercarriage

Product Description

Commodity: Rubber Track for robot or small machine
150mm(width)*65mm(pitch length)*42(links)

Specifications:
1.Characteristics of rubber track:
1).Less damage to the ground surface
2).Low noise
3).High running speed
4).Less vibration;
5).Low ground contack specific pressure
6).High tractive force
7).Light weight
8).Convontional type or interchangeable type rubber track
9).Application:robot,excavator, bulldozer, dumper, crawler loader, crawler crane, carrier vehicle, agriculture machinery, paver and other special machine
10). Warranty: guarantee one year under normal use
Parameters:

Width*Pitch length(mm)	Number of Links	Width*Pitch length(mm)	Number of Links	Width*Pitch length(mm)	Number of Links
130*72	28-53	300*52.5K	72-84	400*72.5KW	68-92
150*60	28-49	300*52.5KW	72-92	400*74	68-76
150*72	29-40	KB300*52.5	72-92	400*75.5K	74
170*60	30-40	KB300*52.5N	72-98	B400*86	52-55
180*60	30-40	JD300*52.5N	72-98	400*90	42-56
180*72	30-58	300*53K	80-84	Y400*142	36-37
180*72K	30-37	300*55	70-86	400*144	36-41
B180*72K	34-51	300*55.5K	76-82	Y400*144K	36-41
B180*72A	30-51	300*71K	72-55	420*100	50-58
H180*72	30-50	300*109N	25-42	450*71	76-88
190*60	30-40	K300*109	37-41	DW450*71	76-88
190*72	34-39	300*109WK	35-42	450*73.5	76-84
200*72	34-47	B300*84	78-52	450*76	80-84
200-*72K	37-47	T300*86K	48-52	450*81N	72-80
230*48	60-84	320*52.5	72-98	450*81W	72-78
230*48K	60-84	B320*52.5	68-98	KB450*81.5	72-80
230*72	42-56	320*54	70-84	K450*83.5	72-74
230*72K	42-56	B320*86	49-52	B450*84	53-56
230*96	30-48	320*90	52-56	B450*86	52-55
230*101	30-36	320*100	38-54	450*90	58-76
250*47K	84	320*100W	37-65	KU450*90	58-76
250*48.5K	80-88	Y320*106K	39-43	T450*100K	48-65
250*52.5K	72-78	350*52.5	70-92	K450*163	38
250*72	47-57	350*54.5K	80-86	485*92W	74
B250*72	34-60	B350*55K	77-98	500*90	76-82
B250*72B	42-58	350*56	80-86	500-92	72-84
E250*72	37-58	350*75.5K	74	500*92W	78-84
250*96	35-38	350*90	42-56	500*100	71
250*109	35-38	350*100	46-60	K500*146	35
260*55.5K	74-80	350*108	40-46	600*100	76-80
Y260*96	38-41	350*109	41-44	600*125	56-64
260*109	35-39	Y370*107K	39-41	700*100	80-98
280*72	45-64	400*72.5N	70-80	750*150	66
Y280*106K	35-42	400*72.5W	68-92	800*125	80
300*52.5N	72-98	Y400*72.5K	72-74
300*52.5W	72-92	KB400*72.5K	68-76

Sprcoket wheel:
Adjustment wheel:
Other samll size we can supply

SIZE	WEIGHT/link	SIZE	WEIGHT/link
130*72	0.36	WD300*72	0.99
150*60	0.52	B300*84	2.88
150*72	0.55	T300*86	3.13
170*60	0.48	300*109KW	3.38
180*60	0.56	K300*109	3.56
180*72	0.64	300*109N	3.32
180*72K	0.87	300*109W	3.21
H180*72	0.77	320*52.5	1.69
190*60	0.59	320*54	1.81
190*60	0.59	B320*84	2.95
190*72	0.72	B320*86	2.99
200*72	0.84	B320*86SB	2.99
200*72K	1.07	B320*86C	3.01
230*48	0.87	B320*86Z	3.12
230*48K	1.06	B320*86CM	3.01
230*72	1.09	B320*86R	2.99
230*72K	1.34	T320*86	3.22
230*96	1.77	T320*86MB	3.3
230*101	1.92	T320*86SB	3.27
250*47	1.11	T320*86C	3.25
250*48.5	1.13	T320*86Z	3.53
250*52.5	1.04	320*90	2.85
250*52.5K	1.31	320*100	2.67
250*72	1.17	320*100W	3.01
B250*72	1.03	320*106	3.63
250*96	2.21	330*79	1.42

2. Production
All track production equipment is designed on site by qualified engineers according to stringent criteria in terms of quality and productivity. The whole team works hard to improve manufacturing processes in order to ensure performance and reliability of the tracks
3.The characteristics of rubber tracks
1. Rubber tracks cause less damage to roads than steel tracks, and less rutting on soft ground than steel tracks
2. A benefit to equipment operating in congested areas, rubber tracks make less noise than steel tracks
3. Rubber tracks permit machines to travel at a higher speed than steel tracks
4. Rubber tracks insulated machine and operator from vibraion, exteding the service life of machine and decreasing operator's fatigue

4.The notices of using rubber tracks
1. Adjust the tension of the rubber crawler so that the height, the variable range is 10-20mm when the machine is lifted. Readjust when the tension decreases. (Be careful because the rubber crawler may come off if the tension is too low).
2. Avoid projection from the frame around the rubber crawler, especially on its inner circumference. (Rubber crawlers are easily deformed; If it comes into contact with the frame, an accident such the rubber being cut can occur).
3. Avoid sharp projections when traveling.
4. Avoid turning too fast on concrete roads with a high coefficient of frction because this can cause accidents such as cutting the rubber.
