Quick Change Roller Single Facer Corrugator Cassette Type

Product Description

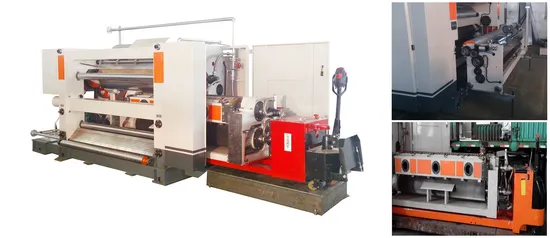

Multi-cassette Positive Pressure Single Facer Corrugator 1) SF-D FMulti-cassette Positive Pressure Single Facer Corrugator Machine adopt negative pressure design, helps the flute paper to press evently and closer on surface of corrugating roller, to have perfect forming and even gluing on flute tip, better laminating with line paper to single faced cardboard.
2) Quick change corrugator roller in 15 munites, while replacing corrugating roller, the whole complete roller set with cassette to delivery into the machine matched and fixed by hydraulic system on base of machine.
3) Corrugating roller, pressure roller and gluing roller adopt high stability air bag control system, with pneumatic control buffer effect.
4) Gluing width motorized to match paper width, idle running motor for gluing roller to avoid glue dry. Gap between gluing roller and doctor roller adjust by eletrical, digital read out.
5) Moveable type gluing unit, convenient to clean and maintain.
6) Simple operation control system, touch screen with colorful displays operation state, easy operation.
7) Build-in pre-conditioner with proportional spraying device, to control flute paper temperature and moisture.
3/5/7-layer Corrugated Cardboard Production Line 1) WJ-I/II/III 3/5/7-layer Corrugated Cardboard Production Line consists of the following machines, Electrical Shaftless Mill Roll Stand, Single Preheater, Fingerless type Single Facer, Overhead Conveyor Bridge, Duplex Preheater, Duplex Gluer, Double Facer, Lift-down Thin Blade Slitter Scorer, NC Cut-off, Right-angle Conveyor & Stacker, etc.
2) Kraft Paper Reel to be corrugated and glue by Corn Starch Gum, continuously produce, slit, crease & cut to 3/5-layer Corrugated Cardboard Sheet, and then conveyor, stack and output.
3) The production line has rational structure design, advanced producing flow, high efficiency, strong batch adjustability, easy operation, etc. good work conditions.
4) It is the ideal and perfect equipment for corrugated carton box factories.

Max Effective Width	1100~2200mm
Max Paper Roll Diameter	1500mm
Max Paper Roll Weight	3000kg
Corrugating Roller	Φ280~405mm, 48CrMo alloy steel, hardness HRC58°-60°
Min Slitting Width	150mm
Cutting Length	500~9999mm
Design Speed	100~200m/min
Heating Method	Steam Heating
Economic Working Speed	80~160m/min

---
