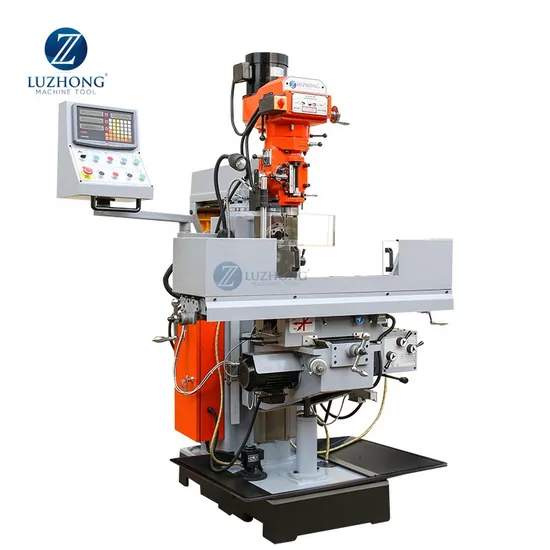

Cheap Vertical Milling Machine ZX6350T Taladradora Y Fresadora Drill Machine

Product Description

China high qulity ZX6350T manual drilling and milling machine combind
Product Description
Product Parameters
The main performance characteristics:
1.Gear transmission for vertical/horizontal milling head
2.X /Y/Z axis auto feed
3.Headstock swivel +/-45°
4.Guide way with sparking quenching
Product main technical parameters:

Specifications	Units	ZX6350T
Max. drilling dia.	mm	50
Max. end milling width	mm	100
Max. vertical milling dia.	mm	32
Distance from spindle nose to table surface	mm	100-530
Spindle taper	mm	MT4
Spindle speed range	rpm	253-4000(V), 32-1320(H)
Spindle travel	mm	120
Table size	mm	1120X280
Table travel	mm	630x240x430
Table Longitudinal feed range	mm/min	15.1-266.5(6 steps)
Cross feed range		15.1-266.5(6 steps)
Vertical milling motor	kw	1.5
Main motor power	kw	2.0/2.4
Overall dimensions	mm	1400x1300x2100
Machine weight	kg	1300/1400

Detailed Photos
Company Profile
FAQ
1:How can I choose the most suitable machines ?A: Please tell me your specifications ,we can choose the best model for you , or you can choose the exact model .You can also send us the products drawing ,we will choose the most suitable machines for you .
2: What's your main products of your company?
A: We specialized in all kinds of machines ,such as CNC Lathe Machine ,CNC Milling Machine ,Vertical Machining Center ,Lathe Machines ,Drilling Machine ,Radial Drilling Machine ,Sawing Machine ,Shaper machine and so on . 3: Where is our factory located? How can I visit there?
A : Our factory is located in Tengzhou City ,Shandong Province,277500 China. You are warmly welcomed to visit us. 4. What is your trade terms?
A : FOB, CFR and CIF all acceptable. 5: What's the Payment Terms ?A : T/T ,30% initial payment when order ,70% balance payment before shipment ;Irrevocable LC at sight . 5: What's the MOQ?
A: 1 set .(Only some low cost machines will be more than 1 set )

---
