Hanbs Single Spindle CNC Lathe Machine with High Rigidity Performance

Product Description

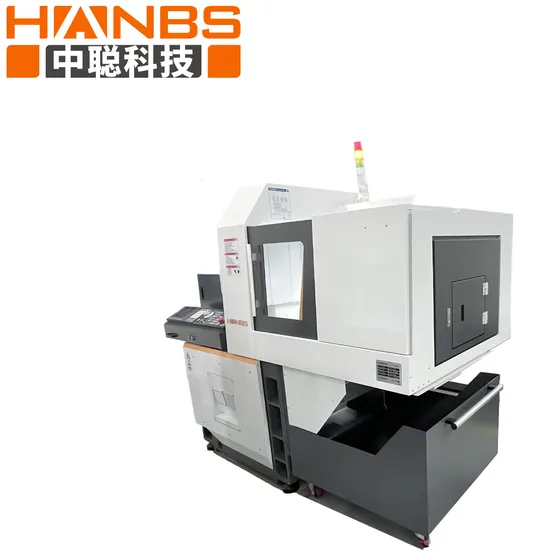

Hs-320 Single Spindle CNC Lathe Machine with High Rigidity Performance
High Precision Machining:
The design of Swiss-type lathes makes them ideal for machining long and slender workpieces, maintaining high precision along the entire length of the workpiece. The workpiece is supported by a guide bushing, reducing vibration and deformation, which enhances machining accuracy and surface quality. Efficient Production:
While a single-spindle design may not be as efficient as a twin-spindle, it still enables continuous production, especially suitable for medium and small batch production. An automatic bar feeder can enable long periods of unattended operation, improving production efficiency. Multi-process Integration:
Capable of performing multiple operations (e.g., turning, milling, drilling, tapping) in a single setup, reducing time and errors associated with transferring workpieces between different machines. Equipped with a multifunctional turret that allows for flexible switching between different machining operations.
Product Photoes
High Flexibility:
Highly adaptable, allowing for flexible tool and machining program configurations based on different machining needs. Suitable for multi-variety, small-batch production, quickly responding to changes in production demands.
Reliability and Stability:
Simple design and stable mechanical structure result in low failure rates and easy maintenance. Stable machining performance ensures reliable production over the long term.
The feeder of the HS-320 is a little different from the other models, the others are on the side of the machine, but it is inside the machine
Product Information

	Project
Processing references	Maximum machining diameter	Φ20mm
	Maximum machining length	190mm
	Maximum axial bore diameter	Φ10mm
	Maximum axial work wire size	M8
	Maximum spindle speed	10000rpm
	Radial maximum bore diameter	Φ7mm
	Radial maximum bore tapping size	M6
	Radial power head maximum rotation speed	ER11:10000/ER16:8000
	Rated speed of radial power head	ER11:8000/ER16:6000
	Maximum workpiece removal length	100mm
Tool dimension	Number of knives installed	6
	Tool (turning tool)	12X12
	sleeve	Φ25.0 X 4
Clip head guide sleeve	Spindle spring collet	TSUGAMI B0205CCR
	Power head collet	ER11,ER16
	Guide bushing	TSUGAMI BS-20#-B
Feeding speed	Z1/Y-axis feed velocity	30m/min
	X1	20m/min
Electric motor	Spindle drive power	2.5/3.7KW
	Power head drive power	1KW
	For cutting fluid	0.4KW
	Cooling of spindle	0.075KW
	Lubricating oil	0.01KW
Others	Spindle center height	1060mm
	Barometric flow	0.7mpa 0.5m³/min
	Main circuit breaker capacity	40A
	Input power	9.3KW
	Weight	2.6T
	Overall dimensions	2250X1200X1850mm

The Best Sample
Factory
Certifications
Shipping and Packing

Q&A Q1: What is the machining accuracy of this single-spindle Swiss-type CNC lathe?
A: Our single-spindle CNC lathe offers high precision and repeatable positioning accuracy, suitable for applications requiring precise dimensional control and surface quality. The specific accuracy depends on the machining materials and process parameters, typically meeting stringent engineering requirements.
Q2: Which types of materials can this machine process?
A: Our single-spindle Swiss-type CNC lathe can handle various materials, including metals (such as steel, aluminum, copper), plastics, and some composite materials. This versatility makes it suitable for a wide range of industrial production needs.
Q3: How efficient is this machine in production?
A: Our single-spindle Swiss-type CNC lathe offers high production efficiency, capable of completing multiple operations in a single setup, significantly reducing machining cycles. Features such as automatic bar feeders and high-speed tool change systems further enhance production efficiency.
Q4: Is operation and programming complex for this machine?
A: We have designed our single-spindle CNC lathe with an intuitive and user-friendly interface, equipped with advanced programming capabilities to simplify operation and programming tasks. We also provide training and technical support to ensure quick adaptation and proficiency.
Q5: What are the maintenance and operating costs of this machine?
A: The single-spindle Swiss-type CNC lathe has lower maintenance and operating costs due to its simple yet robust design, reducing downtime and repair expenses. Regular preventive maintenance ensures long-term reliable operation of the equipment.
Q6: Do you provide after-sales service and technical support?
A: Yes, we offer comprehensive after-sales service and technical support, including remote diagnostics, scheduled maintenance, and spare parts supply. Our commitment is to ensure optimal production efficiency and cost-effectiveness for our customers.
Q7: How is the energy consumption of this machine?
A: Our single-spindle Swiss-type CNC lathe incorporates advanced energy-efficient technologies, such as energy-saving motors and control systems, effectively reducing energy consumption and meeting modern environmental standards.
Q8: Is installation and training included?
A: We provide comprehensive installation services and include operation and programming training. Our professional team ensures proper installation and helps customers quickly acquire operational skills.

---
