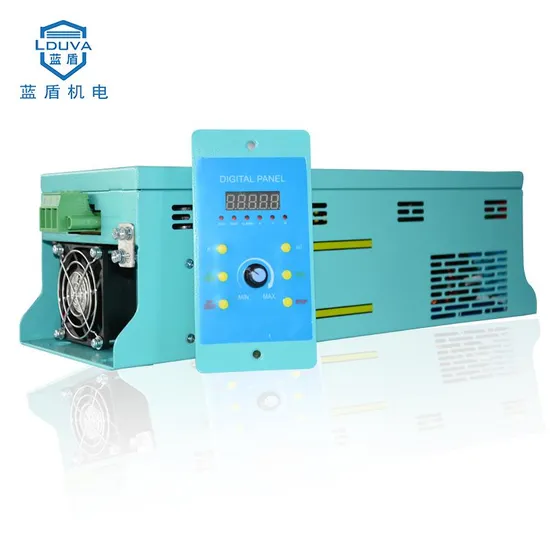

Best Selling High Speed UV Machine Power Supply for UV Lamp

US$860.00-1,100.00 1 Piece (MOQ)

Basic Info.

Model NO.
U-EB801100
Power Wiring
50/60Hz
Output Current
6 - 8A(< 9A)
Electric Current
15 - 20A
Working Voltage
1200 - 1500V
Output Line Length
< 30m
Line Standard
4cm²/Wire Gauge
Product Size
L390*W225*H250(mm)
Installation Dimension
L370*W160(mm)
Transport Package
Wooden Case
Specification
10kw
Trademark
UVTANG
Origin
Dongguan, China
HS Code
8543709990
Production Capacity
7 Sets/Week

Product Description

Best Selling High Speed UV Machine Power Supply for UV Lamp
Maximum output power 15kw
Rated lamp voltage 1300-2000v
Rated lamp current 7-13A
Input voltage 380VAC
Input power frequency 50-60HZ
Input link terminal L2 L2 L3 + E
Power adjustment range 20% - 100% Infinitely adjustable
Response time (millisecond) 8MS (Standby to full load output)
power 90% - 96%
Output link line allows maximum length 30meters
Adjustment box size 16.2mm(L)*88mm(W)*60mm(H)
Ambient temperature 10 - 40
environment humidity 30%-60%
Power Factor >96%
Input load Three phase
Weight 19KG
Q1:How soon can I receive the quotation?
A: For most projects, once we understand your needs, we can provide you with a quotation within 48 hours.
Q2:Can I customize the solution?
A: Yes, we design and build each project according to the needs of individual customers.
Q3:What is the delivery time for mass production?
A: Within 10-15 working days after receiving 100% payment, a 3-day delay is allowed.
The delivery date of large machines needs to be negotiated.
Q4:What is your delivery period?
A: We accept EXW, FOB, etc. You can choose the most convenient or cost-effective one.
Q5:How to settle the payment?
A: 50% of the total amount shall be paid in advance by wire transfer, and the remaining 50% shall be paid before the
delivery price is shown in the USD price, and the customs shall be borne by the customer. All unestablished international
customers have prepaid. When the purchase order is received, a proforma invoice will be sent via email, which includes
the freight and bank information used for prepayment.
Q6:How to order us?
A: Send inquiry to us-------receive quotation-------negotiate order details-------confirm order-------sign contract-------payment
------Mass production-------The goods are ready------Delivery--------Further cooperation.
Q7:How do you ensure our quality?
A: The machine is guaranteed for 1 year. Damage caused by man-made or natural disasters is not covered by this warranty.
After the warranty period, the company can still provide technical assistance, but a service fee is required.
