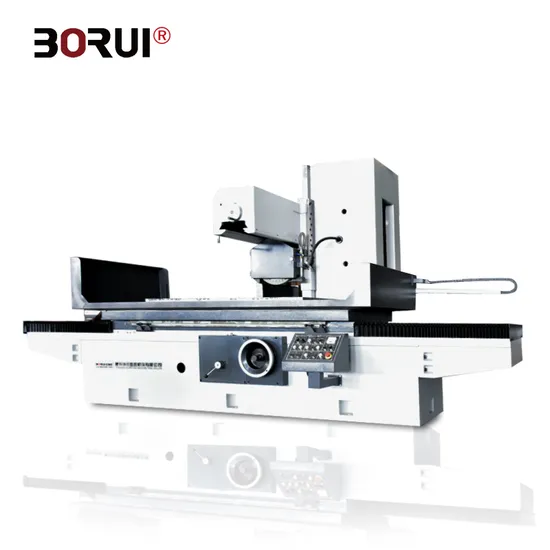

M7170 Economic Flat Surface Manual Feed Grinder Grinding Machine for Steel

Product Description

M7170 Economic Flat Surface Manual Feed Grinder Grinding Machine For Steel
Product Description
STRUCTURAL FEATURES:
The machine tool adopts the t-type layout form, the guide rail on the column is equipped with a drag plate, the middle position of the guide rail is equipped with a vertical feed mechanism, the transmission accuracy is high, the interchangeabil- ity is good, the cross joint is connected in the transmission process, can compensate the center error of the lead screw and the reducer shaft. Closed hydraulic system is adopted for the movement of the worktable. The front and rear feed can be manually fed, the hydraulic feed can be automatically fed, and the lead screw can be fed automatically intermittently driven by a variable frequency motor. Adopt high strength cast iron foundation, grinding head spindle adopt bobbin or high rigidi- ty sleeve structure, the machine overall rigidity is strong, the quality is stable, the operation is stable.
Product main technical specifications:

Model	Table size(WxL) mm	Max.size to be ground mm	Max.load capacity (include permanent magnetic chuck) kg
M7130A	300×1000	300x1000X400	470
M7130B	300x1000	300×1000X800	900
M7130C	300x1000	300X1000X1200	1170
M7140	400x1000 400x1600 400×2200	400x1000X400 400x1600X400 400×2200X400	630 1000 1380
M7150A	500x1000 500x1600 500×2200	500×1000×500 500×1600×500 500×2200×500	700 1240 1410
M7160	600x1000 600x1600 600×2200	600x1000×400 600×1600×400 600×2200×400	850 1150 1500
M7170	700x1250 700x1600 700×2200	700×1250×500 700x1600×500 700×2200×500	1100 1400 1800
M7180	800×1600 800×2200 800×3000	800×1600×500 800×2200×500 800×3000×500	1600 2000 3000
