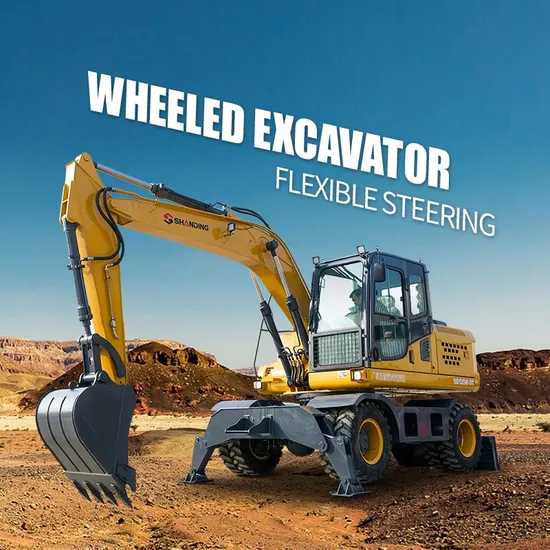

CE Certified 13.5 Ton Wheel Excavator /Mini Digger/Mini Excavator/Small Wheel Excavator

US$8,000.00-46,600.00 1 Piece (MOQ)

Basic Info.

Model NO.
SD135W
Type
Wheel Excavator
Usage
Special Excavator, Marine Excavator, Mining Excavator
Bucket
Shovel
Transmission
Hydraulic Transmission
Drive Type
Internal Combustion Drive
Bucket Capacity
0.1~0.5m³
Size
Medium-Sized
Certification
CE, ISO9001: 2000
Condition
New
Engine
Xinchai
Main Pump
Hlpp32-Zjc (Korea)
Main Valve
Taifeng
Swing Motors
Comer Two-Speed Walking
Operating Mode
Hydraulic Lever
Model No
SD135W
Operating Weight
13500kg
Track Type
Wheel
Max Climbing Ability
35
Max. Bucket Digging Force
28.7kn
Max. Arm Digging Force
14.4kn
Overall Size
4600X1650X2260 mm
Cylinder
Three Cylinder, Water Cooling
Chassis Width
1060 mm
Swing Motor
Comer
Transport Package
Wooden Packing
Specification
13.5TON
Trademark
SHANDING
Origin
Shandong, China
HS Code
8429521200
Production Capacity
10pieces Per Week

Product Description

CE Certified 13.5 Ton Wheel Excavator /Mini Digger/Mini Excavator/Small Wheel Excavator
MAIN PARAMETERS:
Brand SHANDING
Model SD135W-9T
Operating mode Steering wheel
Operating weight 13500kg
Bucket capacity 0.75cbm
Bucket width 700mm (Any size can be customized)
Engine YUCHAI , 92kw/2000r/min
Turbocharged four-wheel drive
Pump Shimadu SGP1A27A9H9-R308C (gear pump )
Replaceable plunger pump
Valve EATON CMJ8JB4N400C ( USA )
Walking motor JK IS0291900 (Germany)
Rotary motor JK (Germany)
Cylinder Four cylinder, Water cooling
Walking speed 35km/h
Track type Tyre 900
Closed cab With cold and warm air conditioning
Climb ability 35ยบ
Bucket digging force 47.7kn
Arm digging force 41.1kn


ADVANTAGES:
OPTIONAL ACCESSORIES:
OTHER PRODUCTS:
DESCRIPTION SD75W SD80W SD90W SD160W SD40W-8
OPERATING WEIGHT 7000KG 7000KG 7500KG 13500KG 4000kg
OVERALL SIZE 6000*2050*2800MM 6050*2120*2900MM 6400*2120*2900MM 8000*2400*3300MM 4530*1620*2700MM
ENGINE MODEL XINCHAI 490 TURBO YC4DK65TURBO YC4DK65TURBO Cumins(TIII) ZN490
RATED POWER 48KW 48KW 48KW 93KW 34KW
MAIN PUMP Shimadzu Shimadzu Shimadzu KAWASAKI FUTAI
MAIN VALVE Parker Parker EATON HF HUSCO
DRIVE TYPE FOUR WHELL DRIVE FOUR WHELL DRIVE FOUR WHELL DRIVE FOUR WHELL DRIVE FOUR WHELL DRIVE
TYRE TYPE ENGINEERING TYRES ENGINEERING TYRES ENGINEERING TYRES ENGINEERING TYRES ENGINEERING TYRES
TYRE SIZE 750-16 750-26 825-16 1000-16 725-16
BUCKET CAPACITY 0.28M3 0.28M3 0.3M3 0.7M3 0.1M3
