| US$23,000.00-30,000.00 | 1 SET (MOQ) |

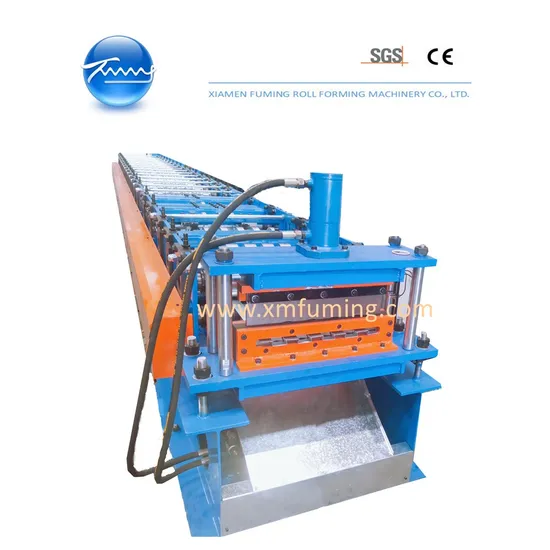

| ROLL FORMING MACHINE FOR YX16 DECORATIVE PANEL | |
| Material Specification | |
| Thickness | 0.8mm to 1.0mm |
| Material | GI |
| Yield strength | 235MPa |
| Width | 600mm |
| Machine Components | |
| 5Ton*600mm Simple Decoiler | |
| Type | No power |
| Load capacity | Max.5Tons |
| Coil Inner-diameter | 510±30mm |
| Coil width | Max.600mm |
| Coil outer-diameter | Max.1500mm |
| Option for Decoiler | 5Ton*600mm Hydraulic Decoiler |
| Roll Forming Machine | |
| Driving system | Gear/Sprocket |
| Forming stages | 26 stages |
| Roller material | 45# steel, hard chrome coated |
| Shafts Diameter | Φ75mm |
| Motor to drive | 7.5KW |
| Line speed of rollformer | Approx. 18m/min |
| Hydraulic Post Cutting Device | |
| Cutting type | Slug breaker |
| Punching & Cutting tool material | Cr12, heat treatment |
| Hydraulci pump motor | 3KW |
| PLC Control System | |
| Function | Control quantity, punching and cutting length automatically |
| PLC | Siemens |
| Touch screen | Siemens |
| Inverter | Delta |
| Encoder | Omron |
| Cut-to-length tolerance | ≤±2mm |
| Control Voltage | 24V |
| Product Rack | 3 units, un-powered |
