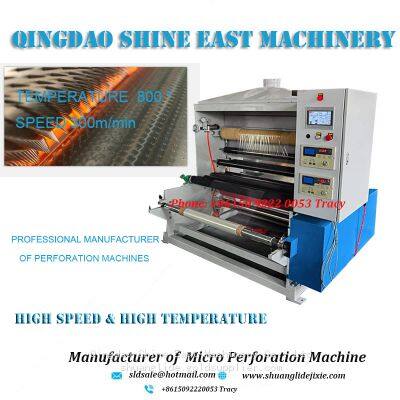

Micro Perforation Machine
§ For perforating flower and vegetable packing films.
Perforation device features :
o Equipped with an electrostatic removing device to eliminate electrostatic problems.
o Equipped with controller to ensure constant operating temperature at all times.
o Hot pin is steel or stainless steel.
Available Material :
o PP, CPP, BOPP, HDPE, LDPE, PET,POF,EVA,medical tape and single layer film.
Optional Equipment :
o PLC.
o Paper core cutting machine.
o Special hot pin roller (size, distance & type).
Specifications :
| SYD-1500
|
|
|
Perforation Speed
| 150 m/minute
|
Product Width
| 150 - 1500 mm
|
Shaft Width
| 1600 mm
|
Material Diameter
| 600 mm (Max.)
|
Porduct Diameter
| 420 mm (Max.)
|
Rewinder Core Diameter
| 3"
|
Machine Dimensions (L * W * H)
| 3.14 * 1.95 * 1.94 m
|
Packing Dimensions (L *W * H)
| 3.34 *2.15 * 2.14 m
|
Net Weight
| 2600 kgs
|
Gross Weight
| 3200 kgs
|
* Specifications are subject to change without notice.Different requirement, different specification.
|
· Design of perforation rollers and perforating unit as per customer’s requirement is available to our company.
· Needles in perforation rollers can be arranged in different patterns like linear pattern, crossed pattern and diamond pattern.
· Supporting Nylon or PU. based rollers are manufactured at our company for perforating machines.
· Needle density up to 70 needles/cm2 can be obtained.
· All of our rollers can be supplied as a single unit, or as a series of pattern-matching inter-locking units for lengthier applications.
· Lengthy Rollers are often replaced at a very high cost, so we convert it into pinned segments that can be modified to fit any machine. The locating holes on each roller match precisely, so there are no interruptions in pattern and, by using this method, should only one roller be damaged in process, only that unit needs repair or replacement, rather than the complete unit .
· Heat-treated and the best quality pins are used for hot perforation as well as cold perforation.
· Rollers are made up of high graded GM. or brass according to the material to be perforated.
· With many years of experience in precision drilling, our highly skilled staff take pride in producing these quality parts with absolute accuracy.
>>
