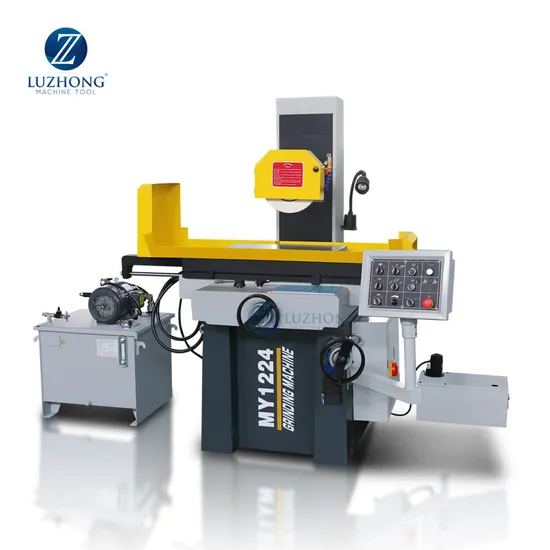

High Precision Hydraulic surface MY1224 Metal grinding machine with price

Product Description

High Precision Hydraulic surface MY1224 Metal grinding machine with price Product Description
The main performance characteristics:
1. The structure of the machine tool is reasonable, large machine tool bed weight, excellent stability, using the cross saddle structure, good rigidity, has the advantages of beautiful appearance and convenient operation.
2. Horizontal movement of working table (before and after) by servo motor drive, precision ball screw drive, to ensure accuracy, accurate positioning, in accordance with the procedures of automatic feeding, automatically and fast forward and rewind functions.
3. Working table vertical (or so) movement, the use of a V a flat guide, and the artificial precision shovel flowers, the use of hydraulic transmission, stable operation.
4. The grinding head up and down movement driven by a servo motor, which can achieve precise positioning accuracy, automatic feed and fast lifting function.
5. The Guangzhou CNC system GSK96 and two axis NC, according to the actual processing conditions free programming, with pulse wheel, X and Z axis feed can be free to switch freely.
6. Machine adopts full enclosed casing, can completely cover the whole of the working area, effectively prevent the splash of the cooling liquid and iron filings, and according to the requirements of clients connected ceiling spray dust removal device. (optional)
7. The characteristics of the CNC grinding machine is realize three-axis full automation, the second axis plane grinder while reducing the labor intensity of the operator, but also a single stand-alone operation, three axis automatic surface grinder, a worker can be 3 - 5 machines are operating at the same time, greatly reduce the labor cost, especially when the batch processing, the benefit is more remarkable.
Application:
Applicable to all kinds of processing machinery, auto parts, fixture, magnetic steel, mould parts processing industry.
The machine tool can be made of grinding steel, iron, ceramics and non-ferrous metal parts.
Product Parameters
Product main technical parameters:

Specifications						Units	MY1224
workbench	Worktable size (L * W)					mm	600×300
	Max. travel of table					mm	630×320
	Table T slot (slot number x slot width)					mm	1×14
Grinding head	The grinding wheel size (o. d * w * i. d.)					mm	Φ300×30×Φ76.2
	Distance spindle center line to working table					mm	520
	Grinding wheel speed				50HZ	r/min	1450
					60HZ	r/min	1680
The amount of feed	Table longitudinal (left and right) speed					m/min	3-20
	Table transverse (front and rear) feed handwheel feed		Continuous (stepless)			mm/min	600
			Intermittent (stepless)			mm/times	0-6
			Handwheel per turn			mm	4.0
			Handwheel per lattice			mm	0.02
	The vertical (up and down) feed handwheel feed			Handwheel per turn		mm	2.0
				Handwheel per lattice		mm	0.01
	Grinding head up and down is fast lifting speed (approximate value)					mm/min	360
Hydraulic system	Hydraulic motor					kw	2.2
	working pressure					Mpa	4
	Fuel tank capacity					L	100
	Maximum flow rate					L/min	20
Motor power	Spindle motor					kw	2.2
	Cooling motor					W	40
	Elevator motor					W	120
working accuracy	he process surface of the base level of the parallel degree					mm	300:0.005
	Surface roughness					μm	Ra0.32
Machine weight		Net weight				kg	1400
		Gross weight				kg	1530
External size (L * w * h)						mm	1960×1480×1850
Packing size (L * w * h)						mm	2000×1640×2020

Detailed Photos
Company Information
FAQ
1:How can I choose the most suitable machines ?
A: Please tell me your specifications ,we can choose the best model for you , or you can choose the exact model .
You can also send us the products drawing ,we will choose the most suitable machines for you .
2: What's your main products of your company?
A: We specialized in all kinds of machines ,such as CNC Lathe Machine ,CNC Milling Machine ,Vertical Machining Center ,Lathe Machines ,Drilling Machine ,Radial Drilling Machine ,Sawing Machine ,Shaper machine and so on .
3: Where is our factory located? How can I visit there?
A : Our factory is located in Tengzhou City ,Shandong Province,277500 China. You are warmly welcomed to visit us.
4. What is your trade terms?
A : FOB, CFR and CIF all acceptable.
5: What's the Payment Terms ?
A : T/T ,30% initial payment when order ,70% balance payment before shipment ;
Irrevocable LC at sight .
5: What's the MOQ?
A: 1 set .(Only some low cost machines will be more than 1 set )

---
