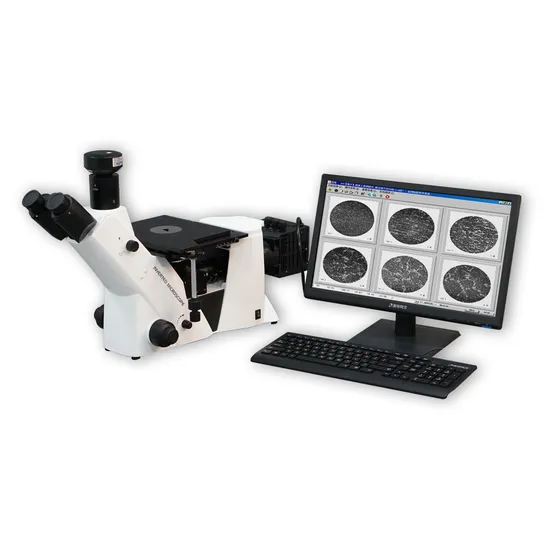

Digital Invert Metallurgical Microscope for Metallographic Structure Analysis

Product Description

The newly developed MDS400 inverted metallographic microscope which is newly developed and manufactured. It combines observation methods such as bright field, dark field and polarized light which is widely used in metals, minerals, electronics and other fields.
Features
1. Bright and dark field observation
2.Large field of view eyepiece, the field of view can reach 23mm, the observation is more flat and comfortable.
3. Two-speed conversion observation tube, 100% observation; 20% observation, while 80% photography.
4.Ultra-large three-layer mechanical moving stage to make your sample selection more extensive.
5.Polarized observation attachment for simple polarized light observation
6.Long working distance infinity flat field objective
7.Long working distance infinity flat field dark field objective
Specifications

Optical system	OTICS infinity chromatic aberration correction optical system
Magnification range	50×~1000×
eyepiece	10X large field of view, high eye point flat field eyepiece, field of view Φ22mm (23mm optional)
Objective lens	Long working distance infinity flat field objective lens: 5×/10×/20×/40×/50×(S)/80×(S)/100×(S)
	Long working distance infinity flat field bright and dark field objective lens: 5×/10×/20×/50×/80×
Observation tube	Hinged three-eye observation tube, 45° tilt, 48-76mm pitch adjustment, two-speed conversion
Objective lens converter	Internal positioning four or five hole converter
Coarse and fine focusing device	Coarse micro-coaxial focusing, coarse adjustment with elastic adjustment
Stage	Three-layer mechanical moving stage, area 210×180mm, moving range 50×50mm, vernier scale 0.1mm
Lighting system	12V/50W halogen lamp (wide voltage input: 100V ~ 240V), LED lighting
Polarizing device	Polarizer
Camera interface	1×/0.75×/0.5×C-Mount interface
Digital camera	Can be configured with CANON, NIKON, OLYMPUS and many other digital cameras
Metallographic analysis system	Professional metallographic analysis rating software
Digital camera system	DV/TP series digital camera system

Metallographic microscopic image acquisition and analysis software (professional metallographic analysis rating software)
Based on the national inspection standard, the software has developed more than 100 kinds of software function modules. Users can select inspection items according to their needs and complete the inspection with the help of this software. The imported CCD camera converts the optical image from the microscope into a video signal, and inputs the sample image under the microscope into the computer through the image acquisition card/digital camera, and uses the software to perform various processing and measurement on the digital image, and finally the image. And the measurement results are printed out, and the disc and the measurement data can be backed up by the disc recorder.
1.General system:
General image processing functions: image acquisition, data backup, depth of field expansion, grain boundary reconstruction, image stitching, image calculation, filtering, image annotation, image segmentation and processing, and accurate printing.
2, professional analysis system:
★ Rating: Based on inspection standards, there are more than 200 software function modules in more than 100 categories.
Automatic rating: automatically obtain the analysis result; auxiliary rating: can draw and analyze the result parameters; compare rating: compare the captured image with the standard library, and manually judge the result.
★Report: Create the entry interface on demand, automatically generate report documents, and provide hold and print functions.
★Geometry measurement: Provides a variety of measurement tools and measurement methods such as lines, rectangles, circles, polygons, angles, etc., which can complete measurement work such as length, area and angle.
★ View Gallery: You can choose to view all the metallographic maps included in this software.
★ Fixed double printing: Multiple images can be loaded at one time, processed, set up and printed, and report files suitable for various industry special requirements.
★Offline Jigsaw: Splicing pictures taken in multiple sub-areas, there are two ways: "automatic" and "manual".
★ Dynamic measurement; no need to collect pictures, you can directly and dynamically measure on video images, which is more convenient and practical than static measurement.

---
