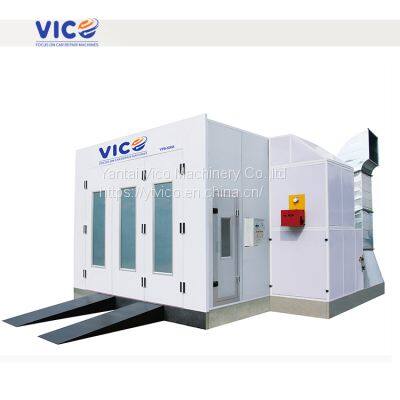

| Painting booth description | One of the hottest sale booths for export, very nice performance and good price |
| Outer dimension:(mm) | 7000*5300*3300mm |
| Inner dimension:(mm) | 6900*3900*2650mm |
| Main door size: | 3000mm(W)*2700mm(H), side small door 680mm*1800mm |
| Appearance color | Red/ Blue / White grey/ Orange |
| Frame system | Frame retardant polystyrene insulation board:50mm thickness, galvanized steel assembled roof. Aluminum alloy front door frame and galvanized steel fixed room frame. The floor is assembly formed by corrosion-resistant rectangular tube with 3 rows of grids and 2 rows of checkered plates. Bottom with glass filters. Two units drive on ramps. |
| Air circulation system | 2*4kw double channels centrifugal outer-motor ventilating machines, air flow:25000m3/h, exhaust duct is formed from superior galvanized steel sheet and flange; On load air speed:0.38m/s; Air exchange rate:320 times/h |
| Exhaust | None. (Optional 1 set centrifugal fan, model YDW 5.5KW blower capacity 15000 m3/h) |
| Filter system | High-efficiency imported glue-spreading cotton (VF-600) ceiling filter Basement bottom grills with bottom glass filters system. |
| Heating system | RIELLO G10 burner, Max. Calorific value:180,000kcal/h. Exchanger Argon arc welded SUS304 stainless steel Max. Temperature :80℃； Temperature rise rate:5-8min(20-60℃)； |
| Lighting system | Ceiling with two lines of lighting box, each line 4 units. total with 24pcs of 36w LED lamps. Illuminance:800Lux |
| E-controlling system | Adopt superior electronic components, main circuit has multi-protection. Function: Lighting switch, heating time setting, normal temperature painting, constant temperature painting, drying switch, emergency stop switch, cumulative time etc. |
| Total power | 10KW |
| Electric power supply | 3PH, 220V/380V/415V, 50Hz/60Hz |
