Durable Hydraulic Automatic Earth Cement Concrete Hollow Block Making Press Machine Qt10-15 Low Price

Product Description

Product Description
QT10-15 block production line 3D VIEW

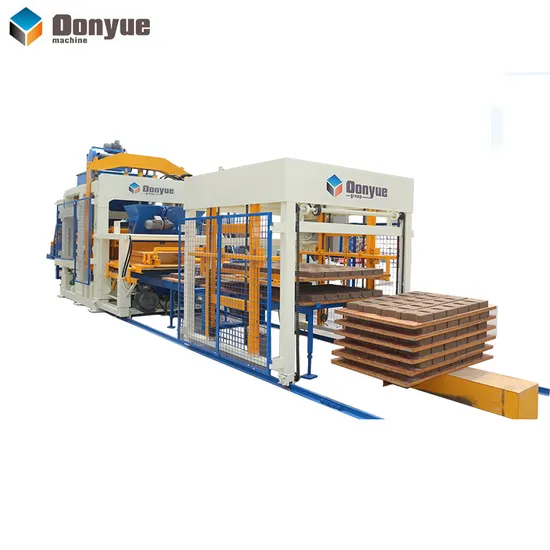

2. Durable Automatic Cement Concrete Block Making Machine Qt10-15
(1) Full automatic and hydraulic automatic block making machine , can produce all kinds of bricks,
and just change the moulds, such as the solid bricks, hollow blocks, paver blocks and so on.
(2) German Siemens motors
(3) Japan Mitsubishi PLC
(4) Omron travel switch
(5) The moulds: We adopt the heat treatment technique to increase the lifespan of the moulds
(6) Certificates: SGS/CE/ISO9001 2008
(7) Mould heat treatment & carburization technology
(8) Strong High-Strength Steel Structure
3. Cement Concrete Block Machine Qt10-15 Block Mold Machine each part detals
1) Three bin batching plant
function: This is the starting point of the Production process. It consists of three loading bins and
one weighing bin. It also contains belt conveyers to convey materials from loading bins to weighing
bin. Batching and weighing is done by PLC control. We can load three different types of material into
the loading bin.
2) JS750 MIXER
Function:All the ingredients are mixed in this mixture machine. The mixing time and speed is controlled
by PLC. The inbuilt water pump adds water to the mix automatically, as per requirement.
3) Germen Siemens motor and Janpnese Mitsubish PLC
4) Stacker
4 .Technical characteristics of Cement Concrete Block Machine Qt10-15 Block Mold Machine :
1). Automatic block production lines, includees a cluster cars, steam curing cellar of block production
line , are of high degree of automation .It can bring the fully-automated production process of batch charging, stir forming , transmission and curing, palletizing and packing into practice.
2). our machine have passed Europe CE and ISO9001 standard.we use Germany SIEMENS motors,Japanese MITSUBISHI PLC control system
3).Use three same size oil cylinder,will work at the same time,to insure the same density and high
quality of the blocks.
4).Use 360°revoling method to make the material more uniform.
5).Use the heat treatment technial to deal with the mould,so the useful life of the mould is more
longer.
6).Install the cooling pump to cool down the oil ,so to insure the normal work of the Hydraulic
System.
7).Install the waste recycling tank,could reduce the waste of materials
5.General notice
1). Customized color is available based on previous notice.
2). The third party inspection is available.
3). If needed, the seller can help the buyer to handle shipping and insurance.
4). Marking and package shall be arranged according to applicable international
requirements.
5). Guarantee: Our block machine has been taken under guarantee by the seller from
the date of commissioning within 12 months on the premise of regular use of the buyer.
An Acceptance Act will follow to inspect the application of the equipment.
6). Installation & commissioning is available based on the clients' requirement.

Product Parameters

Size(LxWxH)	Pcs/Mould	Pcs/ Hr
400X200X200	10	1800-2100
240 X115 X53	54	11435-16200
200X100X60	35	6300-8400
200X163X60	24	4320=5760

QT10-15 Main technical parameters

Dimension of host machine	3800×2300×3550mm	Host machine power	51.2KW
Moulding area	1025×810mm	Vibration force	90-110KN
Moulding period	15-20S	Mixer model	JS750
The size of the pallet	1300×900×30mm	General water Consumption	12T/every day
Weight of the host machine	11.5T	Voltage	380V
