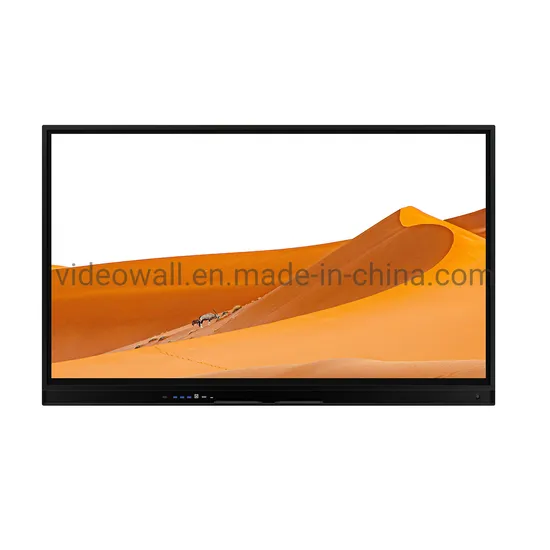

Handwriting Recogonition OCR 75inch touch screen monitor smart white boards classroom interactive whiteboard

Product Description

Handwriting Recogonition OCR 75inch touch screen monitor smart white boards classroom interactive whiteboard
Detailed Photos
Product Description
Latest Android 11 Operating System,
Amlogic 311D2 powerful chipboard
Inspiration series basic configuration (RAM4G +32G ssd) , PRO series is RAM 8G+128G
Dual Operating System (OS):Embedded with latest Android 11 chipboard, and be expanded to Windows System ( Users just need to slot-in OPS computer). And users can switch between Android and Windows easily with just one quick click on menu.
Windows OPS computer: RAM 4G/8G, storage 128G/256G
All size 65" 75" 85" 86" 98" 110" available Built-in 48 Mega pixel camera and 8 arrays microphone
Compatiable with Zoom, Skype, Meeting etc video conference app, can start video conference on DS IFPD with just one click.
(note: Inspiration Pro Series has camera and microphone, Inspiration do not have)Wireless Screen Miracast function: This means users can project laptop, mobile phone, tablets to the smart board without cable, without projector. Just one click on the wireless screen dongle (transmitter) to project contents to the IFPD.
It supports to project 4 device to the IFPD screen simultaneously. Can be 4 laptops, 4 mobile phone or 4 tablets or mixed device.
USB Type C function -USB Type C port (in front panel ) to include in short is a connector which can quick charge your device and also can transfer data at a super high speed 10Gbps.
Powerful Whiteboard functiontext OCR function- When teachers or presenter writing on interactive screens with pen or hand, the hand writings will change to typing letters Shape recognition function- similar like text OCR function, users drawing in whiteboard , then it will automatically recognize the shape to a standard drawing, instead of hand writing. Say if teacher draw a circle which is not so round, smart board will smartly change it to a very round circle. Powerful Whiteboard functionPlay videos in whiteboard & making annotation at same time- Teachers can directly open videos in whiteboard, and making annotation in the same interface. Edit PDF documents: directly open a PDF documents in whiteboard, and education users can edit PDF and make annotations on it.
Powerful Whiteboard functionShare mobile phone pictures/videos to IFPD, more efficient for meeting- if users want to show mobile phone videos ,images to the smart board, just one step , scan QR code on the smart board, then can share contents to the interactive screen. Open browser and search internet in Whiteboard- When teachers use whiteboard,but want to search internet, then can open the browser directly in whiteboard , the searching result will appear in the right side of whiteboard.Switch to other input signals- the smart IFP can be connected to different input/output signals in whiteboard like HDMI, VGA, DP, users can change to other channels with one click in whiteboard menu.Product Parameters

Specification	Type		Parameters
Panel	LCD size		65"
	Panel standard		A Level
	Light source		LED
	Resolution		3840 x 2160pixels
	Brightness		350cd/m²(typ.)
	Contrast ration		1100:1,1200:1,4000:1,5000:1(typ.)
	Pixel pitch		0.496 (W) x 0.372(H)
	Frequency		60Hz
	Viewing Angle		178°(H)/178°(V)
	Life span		30,000hrs(min.)
	Response time		8ms
	Color saturation		70%
	Visual area		1428.48 (H)mm x 803.52(V)mm
	Display Colors		1.07B (8-bit + Hi-FRC)
Android System	Processor	CPU	A73*4 + A53*4 (4 Core+4 Core)
		GPU	G52*8(8 Core)
		Working frequency	2.28GHZ
		Number of cores	8 Cores
	Memory		DDR4: 4GB/eMMC:32GB
	System version		Android11.0
	Chip solution		Amlogic A311D2
	WiFi		2.4G/5G
	Bluetooth		5.0
Power	Voltage		Rated AC 100-240V~Max 90-264V~50/60Hz
	Max. power consumption		TBD
	Standby power consumption		TBD
	Speaker		2 x 15W(max)
	Power supply (AC) input		100-240V
	Power switch		Rocker Switch
Environment	Working temperature		0ºC~40ºC
	Storage temperature		-20ºC~60ºC
	Working humidity		10%~90% No condensation
Input Interface	RS232		1
	TYPE-C		1
	Rj45 IN		1
	DP TOUCH		1
	DP		1
	HDMI IN		2
	HDMI TOUCH		1
	MIC IN		1
	USB2.0		2
	USB3.0		2
Output Interface	RJ45 OUT		1
	HDMI OUT		1
	Earphone/Line-out		1
	Coax OUT		1

Specification	Type	Parameters
OPS(Optional)	USB	USB2.0 x 2;USB3.0 x 2
	LAN Interface	1
	HDMI OUT	1
	LINE-OUT	1
	MIC-IN	1
OPS DC	12V-18V 5A	60W
Key	6 keys with IR reception	Sensor/IR/POWER/Source/Home/Record/ChiLock/Settings
Front Interface	USB3.0	3
	TYPE-C	1
	FRONT HDMI Touch	1
	HDMI IN	1
Structure	Net weight	TBD
	Gross weight	TBD
	Bare dimension	1484.6*919.9*88.6mm
	Packing dimension	1630*220*1050mm
	Shell material	Aluminum alloy frame, sheet metal back cover
	Shell color	Black
	Width of frame(T/B/L/R)	16.8/67.2/16.8/16.8mm
	VESA hole site	4-M8 Screw hole 600*400mm
Language	OSD	CN,EN etc
Touch parameter	Touch specifications	Non-contact infrared sensing technology, support 20 points writing
	Glass	4MM, Physical tempered Mohs level 7
	Glass transmittance	>88%
	Frame material	Aluminum alloy frame,PCBA
	Touch accuracy	≤1mm
	Touch depth	3±0.5mm
	Input mode	Opaque object (finger, pen, etc)
	Theoretical hits	Same position 60 million times above
	Light resistance	Incandescent lamp (220V, 100W), with a vertical distance of more than 350mm and solar Illumination from sunlight up to 90,000 Lux
	Power supply	USB(USB power supply)
	Supply voltage	DC 5.0±5%

Installation Instructions
Packaging & Shipping
Our AdvantagesWhy should I buy from us?Firstly, top industry suppliers: DS's raw materials are sourced from top brands in the industry including LG, SAMSUNG, AUO large size LCD panel companies.Secondly, strict quality control: DS strictly abides by 5 quality inspection processes, from pre-production raw material factory inspection, warehousing inspection, to in-production quality inspection, complete machine acceptance inspection, and pre-shipment inspection. The strict multiple quality inspection processes ensure that each machine delivered to customers is a 100% qualified product.Third, good technical support and after-sale support. Any of issues raised by clients will be acted within 24 hours. Solutions are given to clients with max 48 hours.4 reasons to buy from DS tech.Fourthly, DS has more than 10 years in OEM service. And we received good comments from our customers.FAQ
Are you a factory?Yes, we are a factory locates in Shenzhen China. We mainly do OEM orders of interactive touch panels and LCD screens. Our factory have about 125 workers( peak season about 180 person). R&D team and engineers 13 persons.Can you send a sample to me before bulk order?Yes. DS supports sample order. and low MOQ 1 piece, clients can buy 1 set to test before place bulk order. Can you make the touch panels according to our specifications?Yes. DS is an interactive touch panel OEM factory, and provides OEM services including: LOGO (brands) customization, functions customization, software customization and package customization. Clients can send the specification and requirements to our sales team, our R&D engineers will evaluation possibilities and provide a solution for clients. What's the available size of interactive flat panel? Interactive flat panels standard size 55" 65" 75" 85" 86" and 98". Do the classroom interactive flat panels have free Apps for teaching? DS interactive flat panels for school all are pre-installed with free apps, including digital whiteboard, wireless miracast, WPS, Chrome,Firefox browser, Zoom, Skype, Microsoft Meeting etc. Can I have my brand logo labeled? Yes. We provide free Logo on smart board with MOQ 10pcs. And we will set your logo as booting logo when turning on the machine.What accessories are included in the package? DS interactive flat panel standard package include: interactive screen*1, wall-mount bracket*1, power cord*1, Remote control*1, WIFI antenna, HDMI cable*1, Touch USB cable*1. And optional parts (which is charged additionally) include: Mobile trolley, wireless screen dongle, OPS slot-in computer.

---
