Product Description
Product Description
welding wire packing
Abrasion-Resistant Flux Core Wire:

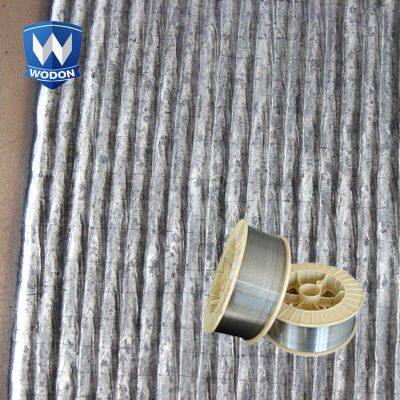

Our flux core welding wire, available in diameters of 2.8 mm, 3.2 mm, or 4.0 mm, is packed in drums ranging from 100 to 250 kg, without any joints. We guarantee excellent performance with no cleaning slag, minimal welding spatter, a smooth surface, high welding efficiency, and a transition coefficient above 0.9.
Categories
| Introduction
|
Wear Plate Welding Wire
| Wire for single layer, double layers, and multiple layers
|
Repairing Welding Wire
| Coal grinding roller hardfacing welding wire, cement mill hardfacing welding wire, squeeze roller hardfacing welding wire, coal mine middle trough repairing welding wire, roller hardfacing welding wire, steel slag grinding, star wheel repairing welding wire, and other various repairing welding wires
|
Gas Shielded Welding Wire
| Various gas shielding repairing welding wires (repair all kinds of wear parts), heat resistance welding wire, grate bar and single tooth roller repairing welding wire, impact-resistant welding wire, and various welding wires containing special elements (customized as required)
|
Introduction：
1. Smooth wire feeding, stable arc, uniform diameter
2. Less spatter and less smoke during welding, with above 90% hardfacing efficiency
3. Each drum packed with one whole piece of welding wire, without any joint, no broken arc phenomena during welding to improve production efficiency
4. Developed 108 kinds of flux-cored wear-resistant welding wires suited to the metalwear-resistant field, satisfying the wear-resistant requirements of many parts under various working conditions
5. The base plate and the resistant overlay are metallurgically bonded. After welding, the wear-resistant layer does not fall off due to uniform stress relief
6. We can provide qualification certificates, product data sheets, hardfacing technology, hardfacing layer composition, hardness test reports, etc.
Our Advantages
1. Chemical Composition: High carbon high chromium
2. Hardness: HRC58-65
3. Good Performance: no clearing slag, low welding spatter, smooth surface, high welding efficiency, stable filling rate, etc.
4. welding wire without any joints.
5. Production Capacity: 8000 tons per year
6. Short Delivery Time: Generally 7 days
7. We have many experienced professionals to research and develop welding wires according to customers' specified chemical compositions.
8. We can recommend proper welding wires and provide technical solutions based on working conditions.
9. on site inspection and third party inspection are available.
10. As an ISO9001:2008 approved manufacture, our mission is to improve our management system and provide high quality products continuously.
Wodon abrasion resistant high temperature resistant flux cored welding wire
|
Chemical Composite
[%]
| C
| Cr
| Mn
| Mo
| Nb
| W
| V
| Si
|
3.0-5.0
| 20-28
| 0.3-2.0
| 0.5-1.5
| 2-4
| 0.5-1.5
| 0.5-1.5
| 0.1-1.5
|
Hardness
| 58~65 HRC
| Performance
| No slag, low welding spatter
No need for shielding gas
Smooth surface
High welding efficiency
|
Temperature
Resistance
| Max. 900 °C
|
Wear
Resistance
| High
| Application
| Suitable for wear resistant parts of high temperature surfacing welding
|
Wodon Wear-Resistant High Alloy Steel Welding Wire Parameter Table
Model
| Hardness (HRC)
| Main Ingredients
| Application
|
HD161
| 58-65
| C, Cr, Mn, Si
| Suitable for hardfacing of ultra-thin wear-resistant plates
|
HD161+
| 58-65
| C, Cr, Mn, Si
| Suitable for hardfacing of ultra-thin wear-resistant plates
|
HD181
| 58-65
| C, Cr, Mn, Si
| Suitable for single-layer hardfacing of wear-resistant plates
|
HD30
| 55-63
| C, Cr, Mn, Si
| Suitable for multi-layer hardfacing of wear-resistant plates
|
Wodon Gas Shielded Hardfacing Welding Wire Parameters
Model
| Welding Rod Diameter (mm)
| Hardness (HRC)
| Main Ingredients
| Application
|
D114
| 1.6
| 50-55
| C, Cr, Mn
| For hardfacing hammer head, hammer plate, and other high impact parts
|
D172
| 1.2, 1.6
| ≥40
| C, Cr, Mo
| For hardfacing bucket gear, mining machinery, and others
|
D212
| 1.2, 1.6
| 245 (HB>170)
| C, Cr, Mo
| For hardfacing the surface of wear parts, such as gear, digger, mining machinery etc.
|
D256
| 1.6
| 45-50
| C, Mn
| For hardfacing high manganese rail, bulldozer, and other wear parts under impact
|
D313
| 1.6
| 55-63
| C, Cr
| For hardfacing continuous casting roller
|
D322
| 1.6
| 53-60
| C, W, Mo
| For repairing die and toughening tool and mechanical parts with high wear performance
|
D405
| 1.6
| 53-60
| C, Cr, Mo, W, V
| For hardfacing hot rolling roll
|
D430
| 1.6
| 35-40
| C, Cr
| For hardfacing general corrosion resistant parts
|
Model
| Welding Rod Diameter (mm)
| Hardness (HRC)
| Main Ingredients
| Application
|
D502Mo
| 1.6
| 55-63
| C, Cr, Mo, Si, Ni
| For hardfacing heavy wear parts
|
D518
| 1.6
| 40-50
| C, Cr, Mo, Ni
| For hardfacing continuous casting roller
|
D688
| 12, 1.6
| 50-58
| C, Cr
| For hardfacing heavy wear parts
|
D788
| 12, 1.6
| 50-60
| C, Cr
| For hardfacing heavy wear parts
|
D788A
| 12, 1.6
| 50-60
| C, Cr
| For hardfacing heavy wear parts, single layer welding only
|
D888
| 12, 1.6
| 58-65
| C, Cr
| For hardfacing heat resistant wear parts
|
D995
| 1.6
| 58-65
| C, Cr, Nb, W, V
| For welding by severe abrasive wear parts
|
D688
| 4.0
| 50-62
| C, Cr
| For hardfacing heavy wear parts
|
Steel Mill Roller Welding Wire Parameters
Model
| Welding Rod Diameter (mm)
| Hardness (HRC)
| Main Ingredients
| Application
|
D430
| 2.4, 3.2
| 35-45
| C, Cr
| For hardfacing common corrosive components
|
320H
| 3.2, 4.0
| 45-55
| C, Cr
| For hardfacing continuous casting roller
|
224
| 3.2, 4.0
| 50-60
| C, Cr, Mo, W
| For hardfacing hot rolled billet roller
|
224B
| 3.2, 4.0
| 40-50
| C, Cr, Mo, W
| For hardfacing hot rolled billet roller
|
414N
| 3.2, 4.0
| 40-50
| C, Cr, Mo
| For hardfacing continuous casting roller
|
414-0
| 3.2, 4.0
| 40-50
| C, Cr, Mo
| For hardfacing continuous casting roller
|
Cement Squeeze Roller Welding Wire Parameters
Model
| Welding Rod Diameter (mm)
| Hardness (HRC)
| Main Ingredients
| Application
|
HB-JYG1#
| 2.8
| 55-63
| C, Cr, Mo
| Used in base layer
|
HB-JYG2#
| 2.8
| 55-63
| C, Cr, Mo
| Used in buffer layer
|
HB-JYG3#
| 2.8
| 55-63
| C, Cr, Mo
| Used in pattern layer
|
Vertical Cement Mill Welding Wire
Model
| Welding Rod Diameter (mm)
| Hardness (HRC)
| Main Ingredients
| Application
|
HB100
| 2.8, 3.2
| 58-63
| C, Cr, Mo
| Suitable for repairing coal grinding mill, grinding disc, cement vertical mill
|
HB100L+
| 2.8, 3.2
| 58-63
| C, Cr, Mo
|
HB100+
| 2.8, 3.2
| 58-63
| C, Cr, Mo
|
HB350
| 2.8, 3.2
| 58-63
| C, Cr, Mo, Nb
|
HB650
| 2.8, 3.2
| 58-63
| C, Cr, Mo, Nb
|
After-Sales Service
• Professional Support: Our after-sales service team has extensive experience in hard-facing products and their applications, and can quickly respond to customer inquiries and issues, typically resolving them within 12 hours of notification.
• Equipment Operation Support: The team is also skilled in operating hard-facing equipment and can assist customers in resolving equipment-related issues, ensuring smooth equipment operation and correct product use.
Frequently Asked Questions
Q: Are you a trading company or a manufacturer?
A: We are a manufacturer with 3 factories, an internal sales department, and a specialized inspection and technical department, allowing us to independently produce and offer high-quality products and services.
Q: What is your delivery time?
A: If the product is in stock, delivery time is 5-10 days; if out of stock, delivery time is 15-20 days, depending on the order quantity.
Q: Do you provide samples? Are they free or chargeable?
A: Yes, we provide free samples to allow customers to better understand the product's performance and quality.
Q: What are your payment terms?
A: Payment terms are 30% prepayment, with the balance paid after the bill of lading copy is issued. We offer flexible payment options including FOB, CIF, CFR, etc.
Contact Us
If you have any questions or need more information about Wodon Super Wear-Resistant Steel Plates, please feel free to contact us. We are dedicated to serving you.
Company Profile
Jiangsu Wodon Wear Resistant New Material Co., Ltd.
Jiangsu Wodon Wear Resistant New Material Co., Ltd. (China Wodon) is a manufacturing factory specializing in the development and production of wear resistant materials. We are headquartered in Jiangsu. There are over 500 staff, including 60 experienced R&D engineers. Our main products include: chromium carbide overlay (CCO) wear plates, flux cored hardfacing welding wires, etc. With independent intellectual property rights and a number of patents, it has a strong R&D and debugging team, which can provide customers with a streamlined service.Since its inception, with the huge investment and independent technology research and innovation, Wodon has been taking the lead in providing premium quality CCO wear plates, hardfacing welding wires as well as excellent repairing technique, all of which win trust and acceptance from our clients worldwide. Meanwhile, the company also employs many experts and professors in the wear resistant industry as the company's technical consultant to ensure strong technical strength and production capacity, we are dedicated to providing quality and cost-effective wear solutions that completely fulfill the requirements of clients.
