Pipe Plough with High Quality Farm Implement (1LYX series)

Product Description

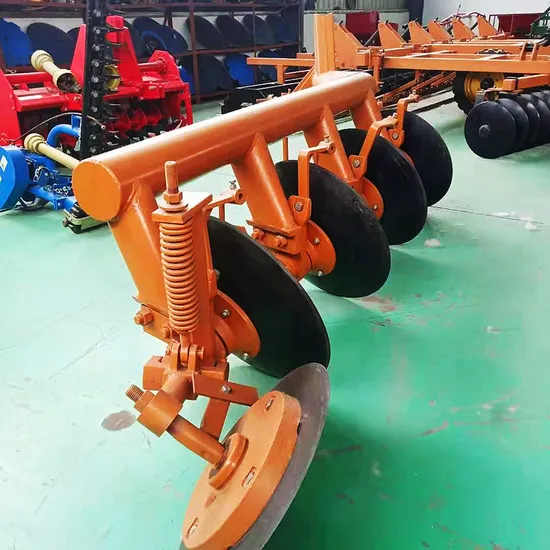

1LYX series pipe disc plough
1LYX series pipe disc plough are mainly used for tillage on dry cultivated or fallow land, especially on high yield manure land, wheat and rice stubble fields. They have many good features, such as excellent pass ability and penetration, small farming resistance, easy operation. Our production of plow conform to optimal parameter strictly, so the plows can satisfy the agricultural requirements well by fine cultivation.
The pipe disc plough's frame is a single round pipe,it is easy to assemble. And it's strong . Its working width and depth all can be adjusted and each plough body's height can be regulated. The working width can be adjusted by the suspension.They can be matched with the wheeled tractors and crawler tractors.
Main specifications:

Model	Unit	1LYX-230	1LYX-330	1LYX-430	1LYX-530
Working width	mm	600	900	1200	1500
Working depth	mm	250~300
NO. of disc		2	3	4	5
Size of disc	mm	660*6
Total weight	kg	360	450	540	640
Matched Power	hp	40-50	55-80	70-100	90-120
Overall dimensions(L*W*H)	cm	1650*1150*1200	2300*1440*1200	2950*1730*1200	3600*2020*1200
Linkage		Three-point mounted
The items selectable		Scraper

The advantages of the 1LYX series pipe disc plough: The plow frame adopts high-quality steel pipe as the main body and is all welded.
2,The disc blades of our disc plows choose 65 Mn steel or boron steel, the disc blades have been heat treated and tempered,they are more break-proof, wear-resistant,specially toughness.
3,The 1LYX disc plow has a rear wheel .The plate-type rear wheel of the plow may effectively balance the side direction force and make it work stable.
4,Scraper:Less soil attachment and better ploughing.

---
