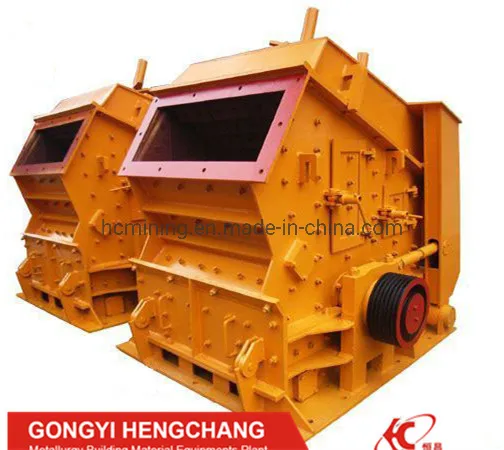

Stone Making Plant Fine Size Crusher

Product Description

1. Product Introduction of Stone making plant fine size crusher
PCX series high-efficient impact fine crusher is also known as the third generation of fine crushing machine, which have reached the leading level by its performance. Currently it is the most efficient and reliable stone crushing machine, especially for the medium and fine crushing of abrasives, refractoriees, cement, quartz sand, steel sand, slag powder, cooper ore, iron ore, gold ore, concrete aggregate, asphalt aggregate and other hard, brittle materials. It is a type o f highly efficient, energy-saving stone crushing and the sand making equipment, which can save 50% energy compared to the traditional crushing machines.
2.Product Application of Stone making plant fine size crusher
It is used in each king of medium degree of hardness solid material, in cement industry, limestone in broken bits, paste, chamote, and so on mix material.
3.Working Principle of Stone making plant fine size crusher

When the Impact Crusher works, the motor drives the rotor rotate of the Impact Crusher with high speed, on the rotor where installed the hammers. When the materials get into the area which the hammers affect, under the impact function of the hammer at a high speed, the materials are thrown to the impact device above the rotor continuously. And then the materials are rebounded from the impact liner to the area where the hammers effects for being re-crushed. The materials from large to small all to be crushed at the impact chamber repeatedly. The process won't stop till the material are crushed to the required size and then discharged from outlet of the Impact Crusher.
4.Technical Data of Stone making plant fine size crusher

Type	PCX0804	PCX0808	PCX1010	PCX1212	PCX1414	PCX1616	PCX1818
way-in size(mm)	400x185	550x330	1000x350	1200x450	1500x500	1600x550	1800x800
max.feed size(mm)	≤120	≤180	≤180	≤180	≤190	≤190	≤190
material-out size(mm)	≤5	≤5	≤5	≤5	≤5	≤5	≤5
discharge gap adjustment width	5-20	5-20	5-20	5-20	5-20	5-20

5.Main Features of Stone making plant fine size crusher
(1). Original creation: Special structure and excellent performance.
(2). Higher efficiency
(3). Lower consumption
(4). High performance price ration
(5). Simplifying corollary equipment
6.Our service
1) Installation and guidance
When the machine arrives at your company, we will dispatch our technicians to your company to guide the installation and commissioning at site. User should pay for the following fees air tickets, boarding and lodging and traffic in client's factory.
(2)Technical training
We provide free technical training service to your stuff. Training content contains the main work principle of machine, operating regulations, maintenance methods and steps, safety, etc.
(3)Warranty:
Three guarantees of our product quality, warranty for one year (not include man-made damaged). We will maintain the machine for free for the quality problem. If the damage is caused by your improperly operation, the cost of the maintenance burden by you. we also provide you the life-long follow-up service.
7.Our copmany
Gongyi Hengchang Metallurgy Building Material Equipments plant is a professional manufacturer specializing in the production of mineral beneficiation equipments, sand and stone crushing equipments, briquetting equipments, coal preparation equipments, drying and calcining equipments, cement plant equipments and compound fertilizer equipments.
8.FAQ:
Q: Are you trading company or manufacturer ?
A: We are factory.
Q: How long is your delivery time?
A: Generally it is 5-10 days if the goods are in stock. or it is 15-20 days if the goods are not in stock, it is according to quantity.
Q: What is your terms of payment ?
A: 30% advanced payment by T/T, balance paid before shipment.
Why Choose Us?
1.We are true Manufacturer.
2.****** Assessed Gold Supplier.
3.Inspected by the Inspection Institution of ISO CE Certification.
4.100% QC inspection Before Shipmeng.
5.Best Quality & Best Service with Competitive price
9.Contact us
If you want to know more details, please contact me!!
Website:http://hcmining.en.made-in-china.com

Amanda

---
