100% Solar Air Conditioner Split System 48V DC Inverter/24 Hours 18000BTU 24000 100% Solar Air Conditioner/ Wall Split Air Condition

Product Description

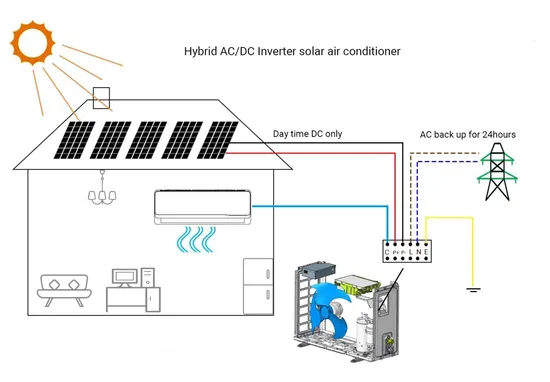

100% Power Saving Ac Solar Split Solar Powered Air ConditionerProduct DescriptionHybrid ACDC air conditioner can work without battery, it works with unstable solar panel DC power at day time.
At night or rainy days it automatically get grid AC power. It's mainly used for school classroom, hospital, restaurant, shops, office…
Solar air conditioner DC specification

Model	Capacity	Solar DC voltage	DC Current	Input Power request
SAC-12K WiFi	12000btu 1.5HP 1Ton	80V-380V	</=10A	940(190-1270) W
SAC-18K WiFi	18000btu 2.0Hp 1.5Ton	80V-380V	</=10A	1400(220-2100) W
SAC-24K WiFi	24000btu 3.0Hp 2.0Ton	80V-380V	</=10A	1790(300-3200) W

Full Specification of air conditioner

Model	Unit		SAC-12K	SAC-18K	SAC-24K
Climate Type	Tropical</= 58ºC		T3/T1	T3/T1	T3/T1
Application area		m2	12-20	20-30	30-42
Power Supply	AC Power	Ph-V-Hz	1Ph 208V-240V/50-60HZ	1Ph 208V-240V/50-60HZ	1Ph 208V-240V/50-60HZ
	DC Power (PV in Series)	V	80-380V	80-380V	80-380V
	DC Power Current	A	</=10A	</=10A	</=10A
Adviced Solar Panel		Pcs	(3-4)*330W in series	(3-6)*330W in series	(3-8)*330W in series
Rated Cooling	Capacity(T1)	W	3510(900-3900)	5070(1200-6000)	6450(1800-7900)
		BTU	12000(3000-13300)	17300(4100-20400)	22000(6100-27000)
	Power input(T1)	W	940(190-1270)	1400(220-2100)	1790(300-3200)
	Capacity(T3)	W	2910	4290	5130
		BTU	9900	14700	17500
	Power input(T3)	W	1050	1630	1940
Rated Heating	Capacity	W	4100(1000-4500)	6100(1200-6800)	7800(1800-9100)
		BTU	14000(3000-15300)	20800(4100-23000)	26600(6100-31000)
	Power input	W	1170(190-1700)	1770(220-2500)	2290(300-3500)
T1 EER (W/W)/ (BTU/W)		/	3.75/12.75	3.60/12.35	3.60/12.30
T3 EER (W/W)/ (BTU/W)		/	2.75/9.45	2.65/9.00	2.65/9.00
COP (W/W)/ (BTU/W)		/	3.50/11.95	3.45/11.75	3.40/11.60
Dehumidification capacity		L/h	1.3	1.7	2.5
Compressor	Model	/	WHP04200	WHP05600	5RD198
	Type	/	2xRotary Inverter	2xRotary Inverter	2xRotary Inverter
	Brand	/	Highly	Highly	Panasonic
Indoor fan motor	Model		BLDC-15W	BLDC-45W	BLDC-45W
	Speed(Turbo/Hi/Mi/Lo)	r/min	1300/1200/1100/950	1050/950/850/750	1350/1250/1150/1000
Indoor air flow(Turbo/Hi/Mi/Lo)		m3/h	540/485/435/350	980/880/740/620	1290/1180/1070/900
Indoor noise level (Turbo)		dB(A)	≤42.5	≤46	≤50
Indoor unit	Dimension(W×H×D)	mm	840×205×295	1080×330×237	1080×330×237
	Packing (W×H×D)	mm	920×290×360	1140×300×382	1140×300×382
	Net weight/Gross weight	Kg	9.0/12.5	15.0/18.5	15.0/18.5
Outdoor fan motor	Model	/	BLDC-40W	BLDC-55W	BLDC-75W
	Speed	r/min	880	880	850
Outdoor air flow		m3/h	2100	2200	3300
Outdoor noise level		dB(A)	≤52	≤55	≤58
Outdoor unit	Dimension(W×H×D)	mm	802×564×323	802×564×323	900×700×337
	Packing (W×H×D)	mm	910×622×405	910×622×405	1006×755×418
	Net/Gross weight	Kg	33.5/37.5	37/42.0	50/54.5
Refrigerant type		/	R410A	R410A	R410A
Max Design pressure		MPa	4.3/1.5	4.3/1.5	4.3/1.5
Refrigerant copper pipe	Gas side/Liquid side (inch)	inch	3/8 1/4	1/2 1/4	1/2 1/4
	Max. refrigerant pipe length	m	15	20	25
	Max. difference in level	m	8	10	10
Drain pipe size		mm	16	16	16
Refrigerant connction copper pipe length		m	3	4	4
Connection wire length		m	4	5	5
Electronic Expansion Valve		/	Yes	Yes	Yes
Loading QTY 40" Hq/ 20"GP		Sets	200/85	160/75	115/50

Company ProfileTopEnergy is a company which vision is build renewable energy source system all over the world.
By creating a new life style for human beings, it promotes the society and human to step into an erea of energy conservation and pollution reduction.
Depand on the persistent pursuit and deep understanding of green energy. We have a suit of comprehensive industrial chains integrating the R&D, design and manufacturing of solar products. We are committed to providing OEM&ODM service to brands worldwide.
In order to deliver green energy with technological wisdom, since its foundation, TopEnergy has cooperation with well-known domestic and foreign technical experts and manufactory. On this basis, we have provided powerful intelligent support for the enterprise's sustained and healthy development.
Our Advantages
1. Customized Solar Panel in different size, voltage, shape solar panel.
2. Accept ODM and OEM order
3. Before sales consult and after sales service technical support.
4. Technical support on help customer lauched new and unique item.
5. Overseas agent technical and price support.
6. Installation guild line
Certifications
Packaging & Shipping
1. Packing: professinal packing suitable for long way transportation by sea,air, land.
2. Shipping: TopEnergy have well cooperated shipping company according to different shipping way.And will be glad to offer shipping service according to customer's requirement. FAQ1. Who are we?We are a professional manufacture and exporter for Solar Panel, Solar Lamp, Storage Battery which located at Shenzhen, Guangdong, China, around 20 minutes far from Shenzhen North high speed train station.
2. What service we can provide?
We have a suit of comprehensive industrial chains integrating the R&D, design and manufacturing of solar products.
We are committed to providing OEM&ODM service to brands worldwide.
3. How can we guarantee quality?Always a pre-production sample before mass production. Always final Inspection before shipment.
4. How can you protect my designs and my brands?
We won't display your designs and brands to other customers, and won't display them in the internet, show, sample room etc, and we can also sign a confidentiality and non-disclosure agreement with you and our sub-contractors.
5. Why should you buy from us not from other suppliers? (Our advantages)
TopEnergy is a professional manufacturer and exporter with over 20 productions lines of Solar Panel, Solar Lamp, Storage Battery in China.
We supply full-line one-stop purchase in Solar product with the most cost-effective price.
All our products are tested before being shipped, ensuring that our customers receive only the best products.
6. What's your company's main method of payment
We accept T/T bank transfer. PayPal, West Union, L/C at sight.7. Do you have any contacts?Shenzhen TopEnergy Co.,LTD
JinFanghua Industrial Area, Maantang Community, Bantian Street, Longgang District, Shenzhen, Guangdong, China

---
