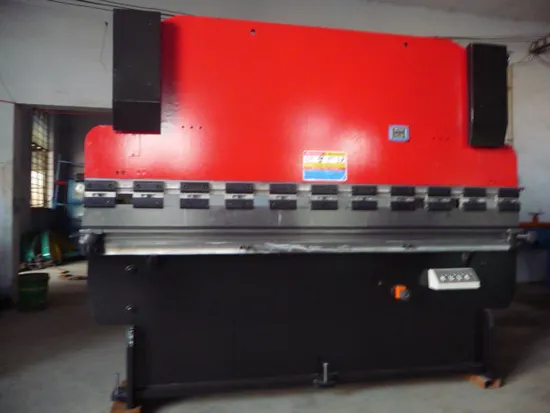

Heavy - Duty Hydraulic Press Brake for Industry

Product Description

Unlock unparalleled precision and experience the future of bending with our groundbreaking hydraulic press brake CNC bending machine. This engineering marvel is a powerhouse of innovation, featuring a cutting-edge precision backgauge and a robust servo motor, all enveloped in comprehensive safety protection for seamless and immaculate performance. Revel in the superior convenience offered by its rapid clamp system, ball screw, and linear guide system-meticulously designed to elevate both efficiency and accuracy. Constructed from premium components sourced from the world's most renowned regions, including Germany, the USA, Holland, and Italy, this machine exemplifies superior craftsmanship and reliability. Tailor your operations with the customizable bend thickness and length, perfectly aligning with your unique needs and enhancing your production capabilities.
Product Parameters Discover the marvel of innovation with the WC67Y/K press brake. This extraordinary machine offers advanced servo motor control and an impressive capacity to store up to 100 programs, each accommodating up to 25 bends-designed to elevate your operations to new heights. Immerse yourself in an extensive tool library and tool program feature, enhanced by an automatic bending angle program that propels productivity forward. Experience increased ram and backgauge speeds for unmatched bending and positioning accuracy. Constructed with a high-rigidity structure using ANSYS software, it offers unwavering reliability and precision. The inverter-controlled motors for the backgauge ensure exceptional positioning accuracy. Explore a variety of optional punches and dies, such as the Multi-V die, radius die, and gooseneck die. Simplify programming with the E21 system controller, effortlessly managing the X axis (Backgauge) and Y axis (Ram stroke). Hydraulic overload protection through an overflow valve and a foot switch with an emergency button provide utmost safety and peace of mind.

Type	Nominal Pressure	Worktable Length	Column spacing	Throat Depth	Slide Stroke	Max Open	Motor Power	Dimensions
	KN	(mm)	(mm)	(mm)	(mm)	(mm)	(KW)	(mm)
WC67Y- 40t/2200	400	2200	1775	250	100	320	5.5	2300×1500×2000
WC67Y- 40t/2500	400	2500	1975	250	100	320	5.5	2600×1500×2000
WC67Y- 63t/2500	630	2500	2095	250	120	360	5.5	2600×1600×2300
WC67Y- 63t/3200	630	3200	2570	250	120	360	5.5	3300×1600×2300
WC67Y- 80t/3200	800	3200	2565	320	120	360	7.5	3300×1700×2300
WC67Y- 80t/4000	800	4000	3165	320	120	360	7.5	4100×1700×2300
WC67Y- 100t/3200	1000	3200	2560	320	120	360	7.5	3300×1800×2400
WC67Y- 100t/4000	1000	4000	3165	320	120	360	7.5	4100×1800×2500
WC67Y- 125t/3200	1250	3200	2550	320	120	360	7.5	3250×1920×2450
WC67Y- 125t/4000	1250	4000	3450	320	120	360	7.5	4100×1920×2500
WC67Y- 160t/3200	1600	3200	2540	320	180	440	11	3300×1600×2600
WC67Y- 160t/4000	1600	4000	3140	320	180	440	11	4100×2000×2600
WC67Y- 160t/6000	1600	6000	4740	320	180	440	11	6100×2000×2600
WC67Y- 200t/3200	2000	3200	2540	320	250	530	11	3300×2100×2800
WC67Y- 200t/4000	2000	4000	3140	320	250	530	15	4100×2100×2900
WC67Y- 200t/5000	2500	5000	3120	400	250	530	15	5100×2100×3000
WC67Y- 250t/4000	2500	4000	3120	400	250	560	18.5	4100×2200×3500
WC67Y- 250t/5000	2500	5000	3920	400	250	560	18.5	5100×2200×3500
WC67Y- 250t/6000	2500	6000	4720	400	250	560	18.5	6100×2200×3500
WC67Y- 300t/5000	3000	5000	39100	400	250	560	22	5100×2600×4000
WC67Y- 300t/6000	3000	6000	4710	400	250	560	22	6100×2600×4000
WC67Y- 300t/7000	3000	7000	5620	400	250	560	22	7100×2600×4400
WC67Y- 350t/6000	3500	6000	5100	400	250	560	30	6100×2600×4200
WC67Y- 350t/7000	3500	7000	5620	400	250	560	30	7100×2600×4500
WC67Y- 400t/4000	4000	4000	3100	400	300	620	30	4100×2700×3800
WC67Y- 400t/6000	4000	6000	4280	400	320	630	30	6100×2800×4200
WC67Y- 500t/5000	5000	5000	4100	400	320	630	37	5100×3000×4400
WC67Y- 500t/6000	5000	6000	4820	400	320	630	37	6100×3000×4700
WC67Y- 500t/7000	5000	7000	5620	400	320	630	37	7100×3000×4900
WC67Y- 600t/6000	6000	6000	4820	400	320	630	45	6100×2965×4700
WC67Y- 600t/7000	6000	7000	5620	400	320	630	55	7100×2965×4900

Type	Nominal Pressure	Worktable Length	Column spacing	Throat Depth	Slide Stroke	Max Open	Motor Power	Dimensions
	KN	(mm)	(mm)	(mm)	(mm)	(mm)	(KW)	(mm)
WE67K-40t/2200	400	2200	1775	250	175	320	5.5	2300×1500×2000
WE67K-40t/2500	400	2500	1975	250	175	320	5.5	2600×1500×2000
WE67K-63t/2500	630	2500	2095	250	175	360	5.5	2600×1600×2300
WE67K-63t/3200	630	3200	2570	250	175	360	5.5	3300×1600×2300
WE67K-80t/3200	800	3200	2565	320	175	360	7.5	3300×1700×2300
WE67K-80t/4000	800	4000	3165	320	175	360	7.5	4100×1700×2300
WE67K-100t/3200	1000	3200	2560	320	215	360	7.5	3300×1800×2400
WE67K-100t/4000	1000	4000	3165	320	215	360	7.5	4100×1800×2500
WE67K-125t/3200	1250	3200	2550	320	215	360	7.5	3250×1920×2450
WE67K-125t/4000	1250	4000	3450	320	215	360	7.5	4100×1920×2500
WE67K-160t/3200	1600	3200	2540	320	215	440	11	3300×1600×2600
WE67K-160t/4000	1600	4000	3140	320	215	440	11	4100×2000×2600
WE67K-160t/6000	1600	6000	4740	320	215	440	11	6100×2000×2600
WE67K-200t/3200	2000	3200	2540	320	215	530	11	3300×2100×2800
WE67K-200t/4000	2000	4000	3140	320	215	530	15	4100×2100×2900
WE67K-200t/5000	2500	5000	3120	400	215	530	15	5100×2100×3000
WE67K-250t/4000	2500	4000	3120	400	215	560	18.5	4100×2200×3500
WE67K-250t/5000	2500	5000	3920	400	215	560	18.5	5100×2200×3500
WE67K-250t/6000	2500	6000	4720	400	250	560	18.5	6100×2200×3500
WE67K-300t/5000	3000	5000	39100	400	250	560	22	5100×2600×4000
WE67K-300t/6000	3000	6000	4710	400	250	560	22	6100×2600×4000
WE67K-300t/7000	3000	7000	5620	400	250	560	22	7100×2600×4400
WE67K-350t/6000	3500	6000	5100	400	250	560	30	6100×2600×4200
WE67K-350t/7000	3500	7000	5620	400	250	560	30	7100×2600×4500
WE67K-400t/4000	4000	4000	3100	400	300	620	30	4100×2700×3800
WE67K-400t/6000	4000	6000	4280	400	320	630	30	6100×2800×4200
WE67K-500t/5000	5000	5000	4100	400	320	630	37	5100×3000×4400
WE67K-500t/6000	5000	6000	4820	400	320	630	37	6100×3000×4700
WE67K-500t/7000	5000	7000	5620	400	320	630	37	7100×3000×4900
WE67K-600t/6000	6000	6000	4820	400	320	630	45	6100×2965×4700
WE67K-600t/7000	6000	7000	5620	400	320	630	55	7100×2965×4900

Type	Nominal Pressure	Worktable Length	Column spacing	Throat Depth	Slide Stroke	Max Open
	KN	(mm)	(mm)	(mm)	(mm)	(mm)
WE67K-500t/5000	5000	5000	4100	400	320	630
WE67K-500t/6000	5000	6000	4820	400	320	630
WE67K-500t/7000	5000	7000	5620	400	320	630
WE67K-600t/6000	6000	6000	4820	400	320	630
WE67K-600t/7000	6000	7000	5620	400	320	630
WE67K-700t/8000	7000	8000	5300	400	320	630
WE67K-700t/10000	7000	10000	5300	400	320	630
WE67K-800t/8000	8000	8000	5300	400	320	630
WE67K-1000t/10000	10000	10000	5300	400	320	630
WE67K-1000t/12000	10000	12000	5300	400	320	630
WE67K-1200t/12000	12000	12000	5300	400	320	630
WE67K-1200t/14000	12000	8600	5300	400	320	630

FAQ Q1: What is our main product?
A1: Our company specializes in sheet metal processing machinery, including press machines, bending machines, shearing machines, CNC plasma cutting machines, rolling machines, punching machines, hydraulic ironworker, and welding equipment.
Q2: When can I get the price?
A2: We usually offer the quotation within 8 hours. For urgent offers, please contact us.
Q3: What is the Trade Term?
A3: We accept Ex-work factory, FOB Dalian, CNF, or CIF, as per your requirement.
Q4: How long is our Production leading time?
A4: It depends on the type of equipment. We often deliver the goods within 35 days.
Q5: What is the Payment term?
A5: By T/T before shipment or by L/C at sight.
Q6: During shipping, if there is a damage to products, how do you get replacement?
A6: We will investigate the cause of damage, claim insurance, and send replacement. The responsible party will cover the cost.
Q7: What are your terms of packing?
A7: Packing includes export-worthy packages suitable for container transportation, such as wooden cases, iron pallets, and plastic film.
Q8: Do you test all your goods before delivery?
A8: Yes, we have 100% test before delivery.
Q9: Where is your factory located?
A9: Our factory is located in Dalian, Liaoning province.
Q10: What is your warranty?
A10: Warranty is 24 months after commercial running or 18 months from the date of shipment, subject to the earlier expiry.
Q11: Can you arrange third-party pre-shipment inspection?
A11: Supplier's pre-shipment inspection is final;
third-party inspection is at buyer's cost.
Q12: Can we do our OEM logo?
A12: Yes, for products with drawings supplied by you, we can apply your logo.

---
