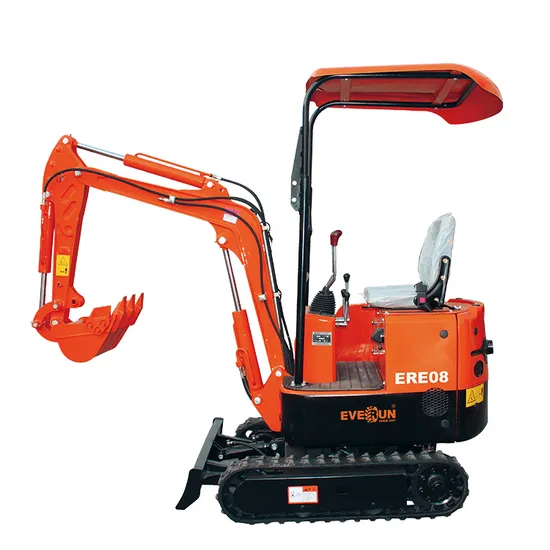

Everun Mini Digger 0.8ton Ere08 Small 800kg Hydraulic Crawler Excavator with Timely Service
| Model | ERE08 |
| Brand | EVERUN |
| Operating Weight | 800kg |
| Digging bucket capacity | 0.025cbm/120kg |
| Engine | KOOPKD192) |
| Rated power | 9.2kw |
| Main pump | SAISIDA |
| Pump flow | 16L/min |
| Displacement | 6.8ml/r |
| Swing motor | SJ-TECH (MP-1-160) |
| Traveling motor | KERSEN (OMS-2450) |
| Arm digging force | 8.5KN |
| Bucket digging force | 9.6KN |
| MAIN DEMENSIONS |
| Overall dimension( L x W x H) | 2770x896x1490 mm |
| Total length of track | 1230mm |
| Platform ground clearance | 380 mm |
| Platform back turning radius | 784 mm |
| Chassis width | 896 mm |
| Track width | 180 mm |
| Chassis ground clearance | 132 mm |
| Track height | 320 mm |
| OPERATING RANGE |
| Max. Digging depth | 1650 mm |
| Max. Vertical digging depth | 1376 mm |
| Max. Digging height | 2610 mm |
| Max. Dumping height | 1850 mm |
| Max. Digging radius on ground | 2560 mm |
| Min. Rotation radius | 1200 mm |
| Max. Upgrade height of bulldozer blade | 165 mm |
| Max. Digging depth of bulldozer blade | 170 mm |
| Boom Deflexion (Left/ Right) | 75°/ 45° |
| Tail Swing Radius | 1125mm |
| Front Min. Swing Radius | 1720mm |
