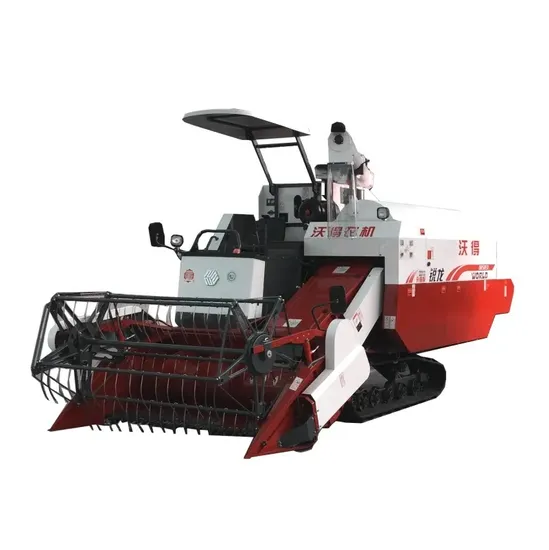

| Model | 4LZ-6.0P |
| Type | Self-propelled Rubber Track Combine Harvester |
| Feeding Capacity (KG/s) | 6 |
| Main Standard Configuration | |
| Working Dimension L*W*H (mm) | 5150*2620*3030 |
| Ground Clearance(mm) | 360 |
| Travelling Speed(km/h) | 0.9-6.5 |
| Work Efficiency (Ha./Hr) | 0.5-0.7 |
| Total Loss | Less than 2.0% |
| Total Imputity | Less than 1.5% |
| Total Breakage | Less than 1.5% |
| Diesel Engine | |
| Model | Changchai 4G33-TC |
| Type | Vertical, Water-cooling, 4*4 strokes Direct Inject, Turbocharger |
| Rated Power/Rotating Speed | 102HP/2700rpm |
| Fuel Consumption(kg/hm2) | 17~29 |
| Fuel Capacity (L) | 130 |
| Gear Box& HST | |
| Gear Box | Hydraulic Gear Box ZKB85 |
| HST | 45CC |
| Rubber Track | |
| Size (mm) | 550*56*90 |
| Length of Ground Contact (mm) | 1810 |
| Average Contact Pressure(kpa[kgf]/cm2) | ≤18Kpa |
| Header Platform &Conveyor Trough | |
| Grain Lifter | Divider |
| Cutting Width (mm) | 2200 |
| Size Reel Bat Dia. × Length (mm) | ∮900×2028 |
| Adjust means of Reel Bat | Constant speed by hydraulic control |
| Conveyor Trough | Widen Conveyor Trough with Reverse Lever |
| Thresher& Separating Unit | |
| Threshing Type | Axial Flow, Beat Bar |
| Thresher Rotor | ∮620*2000 |
| Rotating Speed | 662/732 |
| Air Blow | Eccentric Fan, 3 Blow Forces |
| Area of Sieves (Low and Up Sieves) (m2) | 1.645 |
| Grain Tank | |
| Augers | Seed Augers, Impurity Augers, Unload Augers |
| Grain Tank | 1.6m³ |
| Grain Unloading | 360 Degrees Discharging Pipe |
| Others | |
| Cabin/Sun-roof | Sun-roof |
| Alarms | Water Temperature, Battery, Oil, Grain Tank, Jam of 2# Auger |
| Crops | Rice ,Wheat ,Rapeseed |
