Product Description
Product Description

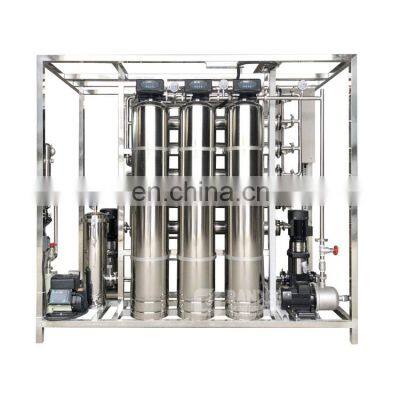

Water Refilling Station Machine / RO Water Treatment System Plant Product DescriptionRO Water Treatment System: Final equipment will be confirmed according to original water quality report 1, Water inlet: 1,500L/H as underground water2, Water output: 1,000L/H purified water3, Flow Chart of the Line:Raw water tank→ Raw water pump→Silica Sand Filter→Active Carbon Filter→Precision Filter→Reverse osmosis system→Ozone Generator→Pure water tank Working Process:1. Raw water pump-- provide the pressure to quartz sand filter/active carbon filter.2. Quartz sand filter--get rid of turbidity, suspended matter, organic matter, colloid, ect.3. Active carbon filter--Remove the color, free chloride, organic matter, harmful matter, ect.4. Softener resin --exchange "ions" of calcium and magnesium with the most common and easiest method.5. Micron filter--prevent large particles, bacteria, viruses into RO membrane, accuracy is 5um,6. High pressure pump--Provide the high pressure to RO membrane ro.7.RO system-- main part of the plant. The RO membrane's desalting rate can reach 99%, removing over 99% ions.8.UV sterilizer-In the UV disinfection process, water is purified as it runs through a stainless steel chamber that contains a special UV- producing lamp. Machine show Main technical parameter:Water treatment system:Material: SS304/316Source of waterCapacityWater pumpFilter mediaRO membranceRiver/well/spring/lake/sea/tap water/underground water / mountain water2-100T/HCNPGrundfosQuartz sand/active carbon/sodium ion/hollow fiber filterFilmtec dow/USA hydranautics/USANaturally oxygen-rich waterPure waterRO waterMineral waterSpring waterUltrafiltrationReverse osmosisReverse osmosisUltrafiltrationUltrafiltrationAutomatic control systemFloat ball/solenoid valve/pneumatic butterfly valveFilling waterWe can make water purification system as per difference water qualityTypes of waterMineral water pure water spring water RO water oxygen-enriched water alkaline water,etc Process flow chart of water treatment sytemRelated productWater filling machine The machine is mainly used for producing PET bottled mineral water, pure water and non-carbonated drink, and washing, filling ,screwing is integrated in one unit, short the water contacting with outside, improve the sanitation condition, production capacity and conomic benefit. Blowing Machine with different options 1. Semiautomatic Blowing Machine for 800BPH-2000bph from 0.2-2.5L bottle with 2 or 4 cavities.2.Full automatic blowing machine from 2 cavity, 4 cavity, 6 cavity, 8 cavity, 9 cavity,etc from 2500BPH to 12000BPH for 500ml bottle. Automatic PVC sleeve labeling machine Capacity: 100-350bottles/min can be chosenLabel material: PVC PET OPS, etcBottle material: PET PE PP GlassBottle Diameter: 28 ~ 120mmBottle Height: 15~320mmBottle shape: round, square, ellipse, rectangularLabel length: 30~250mm(max) Automatic PE film shrink packing machine Flow: Feeding→ pushing bottles→ film covering and sealing→ shrinking→ coolingSpeed: 8-12packages/minPower (rated/real): 26kw / 16kwMax. packing size: 420*300*350mm(LxWxH)Max. sealing size: 650mm Company InformationProject casesOur exhibitionWorkshop deatilsOur teamFAQQ1: How to find suitable machine or complete beverage production line?A1: Looking for beverage filling machine in www.grandeemachine.en.china.cn •Enquiry: Contact us by email, phone call, fax, Instant Messenger (Trade manager, Skype, WhatsApp, Wechat) and let us know your requirements • Discussion: Specify the items and what are you exactly looking for. Q2: Are you a trading company or a manufactory?A2: We are the manufacture of water/beverage filling machine and water treatment system over 10 years.We just not only sell drinking water machines and other related equipment , Quality is our culture. We have rich experienced engineers with technicians working team , providing good and after-sales service term , professional salesman terms . Q3: Do you have technical support after we purchased your machines?A3: We will arrange our professional technical to go aboard to your factory, they will help you and teach you how to install and maintenance the machines which you purchased. Or help you to fix machine when it has problems. Q4: If you buy our machines, can you offer us wear-out spare pats?A4: We provide our high quality machine 2 years guarantee , and we will also offer you 2 years wear-out spare parts for free. Once your machines broken or doesn't work within 2 years and you can't solve it, firstly, we will try to help you to find problems from your words description by phone or other communication tolls. Secondly, if the phone solutions still not work, our engineers will go to your factory to solve it. Meanwhile, they will teach you the related experiences for fixing. Why choose Grandee machinery
>>
