Metal Sheet Guillotine Shearing Machine for Steel Plate Shearing

Product Description

Product Description - This device suit to shear various material by different need, main suit to shipbuilding, car made, steel made, switch appliance, contain made, machinery made and light manufacturing and so on. As the major support of shipbuilding and equipment made, and replacement of large hydraulic guillotine shearing machine in time, to suit new requirement, that is very important.
- The device use one-piece steel sheet welded structure, and use vibration age treatment to release internal stress, with good rigidity and stability.
- Hydraulic driven, accumulator return, working is stable, low noise. Through electric system and hydraulic system cooperate in harmony, to get the ideal shearing performance.
- The controller adopts E21S/ DAC360, provides a complete solution for shearing machine

Product Parameters

Model	Sheet thickness	Sheet width	Strokes	Back gauge	Shearing angle	Motor
QC11Y 6*2500	6mm	2500mm	16-35min-1	20-600mm	0.5-1.5	7.5kw
QC11Y 6*3200	6mm	3200mm	14-35min-1	20-600mm	0.5-1.5	7.5kw
QC11Y 6*4000	6mm	4000mm	10-30min-1	20-600mm	0.5-1.5	7.5kw
QC11Y 6*5000	6mm	5000mm	10-30min-1	20-800mm	0.5-1.5	11kw
QC11Y 6*6000	6mm	6000mm	8-25min-1	20-1000mm	0.5-1.5	11kw
QC11Y 8*2500	8mm	2500mm	14-30min-1	20-600mm	0.5-2	11kw
QC11Y 8*3200	8mm	3200mm	12-30min-1	20-600mm	0.5-2	11kw
QC11Y 8*4000	8mm	4000mm	10-25min-1	20-600mm	0.5-2	11kw
QC11Y 8*5000	8mm	5000mm	10-25min-1	20-800mm	0.5-2	15kw
QC11Y 8*6000	8mm	6000mm	8-25min-1	20-1000mm	0.5-2	15kw
QC11Y 12*2500	12mm	2500mm	12-25min-1	20-600mm	0.5-2	18.5kw
QC11Y 12*3200	12mm	3200mm	12-25min-1	20-600mm	0.5-2	18.5kw
QC11Y 12*4000	12mm	4000mm	8-20min-1	20-600mm	0.5-2	18.5kw
QC11Y 12*5000	12mm	5000mm	8-20min-1	20-800mm	0.5-2	22kw
QC11Y 12*6000	12mm	6000mm	6-20min-1	20-800mm	0.5-2	30kw
QC11Y 16*2500	16mm	2500mm	12-20min-1	20-800mm	0.5-2.5	22kw
QC11Y 16*3200	16mm	3200mm	12-20min-1	20-800mm	0.5-2.5	22kw
QC11Y 16*4000	16mm	4000mm	8-15min-1	20-800mm	0.5-2.5	22kw
QC11Y 16*5000	16mm	5000mm	8-15min-1	20-1000mm	0.5-2.5	30kw
QC11Y 16*6000	16mm	6000mm	6-15min-1	20-1000mm	0.5-2.5	37kw
QC11Y 20*2500	20mm	2500mm	10-20min-1	20-800mm	0.5-3	30kw
QC11Y 20*3200	20mm	3200mm	10-20min-1	20-800mm	0.5-3	30kw
QC11Y 20*4000	20mm	4000mm	8-15min-1	20-800mm	0.5-3	30kw
QC11Y 20*5000	20mm	5000mm	8-15min-1	20-800mm	0.5-3	37kw
QC11Y 20*6000	20mm	6000mm	6-15min-1	20-1000mm	0.5-3	45kw
QC11Y 25*2500	25mm	2500mm	8-15min-1	20-800mm	0.5-3.5	37kw
QC11Y 25*3200	25mm	3200mm	8-15min-1	20-800mm	0.5-3.5	37kw
QC11Y 30*2500	30mm	2500mm	6-12min-1	20-1000mm	0.5-4	37kw
QC11Y 30*3200	30mm	3200mm	8-12min-1	20-1000mm	0.5-4	45kw

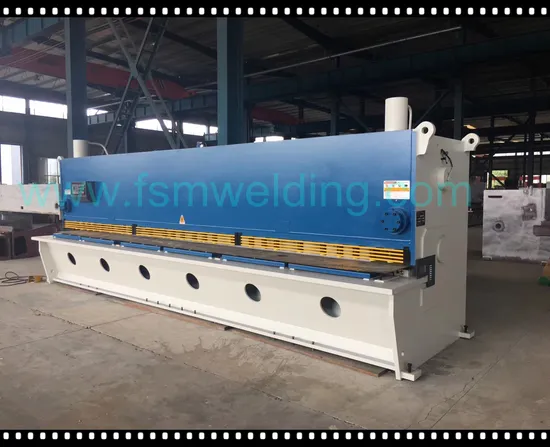

Detailed Photos 16*6000 Guillotine shearing machine
10*6000 Guillotine shearing machine
20*6300 Guillotine shearing machine Company Profile Friendship Machinery is a world leader in automatic welding machine for steel fabrication field and industrial pipeline construction projects, providing an extensive range of equipment for a variety of project applications.
Our main products: CNC plasma & fiber laser cutting machine, H&I beam production line, T beam welding line, box column beam welding line,welding manipulator, welding positioner, welding turning roller (welding rotator), membrane pipe-panel production line,tube to tube welding machine, tube to sheet welding machine, shearing machine, press brake machine, hydraulic iron workers, CNC drilling machine, which are widely used in many industries like aerospace, petrochemical, metallurgy, shipbuilding, chemical equipment, boiler pressure vessels, steel structure construction, etc.

FAQ 1. Where is your factory located ?
Friendship Machinery CO., LTD (FSM) is located in Wuxi, Jiangsu, and about 40mins from Shanghai if take railway.
2. How can you guarantee your product quality?
From raw material purchase to production, FSM has strict restriction. And we will provide 1 year warranty time for all the products. ISO 9001 and CE certification can be provided.
3. How long is one order production time?
After you place a order, the production handling time is about 25-30 days. It will subject to our factory production schedule.
4. Can you accept special order?
Yes, we have our own R&D center , and our engineer can provide machine drawing according to your requirement.
5. Are your engineers available for oversea project ?
Yes, our engineers can be delegated aboard for machine installation and debugging.
6. How can you make sure the deal safe?
You can pay by TT/ LC. Making the world a better place is our company's beautiful vision, we will be your trusted partner.

---
