Full Automatic 5 gallon 20L 15L Spring mineral water bottling line / filling machine / production plant
Product Description
Brief introduction :
QGF-450 5 gallon drinking water filling machine is mainframe for produce 5 gallon barreled water. It consists of frame, water tank, pipeline, water pump, air tank, transmission machine, electric machine, can finish empty barrel washing , filling , capping through several washing , fit quantify filling and auto capping. The whole working process was control by PLC, realize stability washing effect, accurate filling capacity and perfect capping effect.
Machine picture:

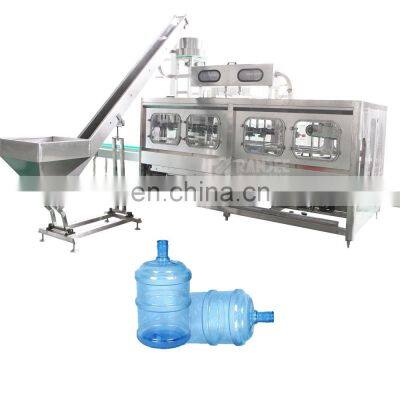

QGF-450 5 Gallon / 20liter water filling line with washing system
|
No.
| Machine name
| Model
| Size(mm)
|
1
| Automatic decapper
| BG-1
| 850x650x1800
|
2
| Automatic interior brushing machine
| STN-3
| 1300*800*2140
|
3
| Automatic exterior brushing machine
| STW-3
| 1550*1100*2140
|
4
| QGF-450 main washing filling capping machine
| QGF-450
| 5300×1580×2000
|
5
| Light checker
| DJ-1
| 300×700×1000
|
6
| Shrinking machine
|
| 900x700x1200
|
7
| Feeding conveyor belt
| Plastic chain
|
|
8
| Products outlet conveyor
| SUS304
|
|
9
| Roller conveyor
| SUS304
| 2m
|
10
| Laser / ink jet printer
| 20W
| 340*220*100
|
Details
| De-capping machine:
This decapping machine is designed for 3 & 5 gallon bottle
in water production line.
It's used to pull out the cap of recycling bottle before rinsing.
|
Automatic outside brushing machine:
The machine is used for cleaning barrel outside before filling process.
It's used for allround cleaning the bottle, significantly
improves cleaning efficiency.
|
|
| Automatic up-loader:
Automatically push the prepared empty bottle into the filling machine, put the bottle into the holder inside the washer station. |
5 Gallon Water Bottle Filling Machine:
This filling machine for PET bottle integrates the functions of rinsing, filling and capping together. Based on advanced technology overseas and designed according to the filling processing demands of mineral water, pure water etc.
| |
| Light Checker
With two light pipes, inspect bottle water after filling function.
|
Cap Heat Shrink Machine
This cap heat shrink machine is used to shrink the plastic label on the 3& 5 gallon caps. It adopted good quality imported stainless steel, simply operation and working smoothly. | |
| Automatic barrel bagging machine:
Automatic film feeding, feed, bag, sealing once completed, save manpower, improve efficiency, and realize unmanned operation docking production line. Teflon anti-stick coating alloy thermostatic sealing knife, sealing temperature is extremely sensitive and accurate, it can be arbitrarily set, sealing wire is not easy to crack, no edges, sealing more beautiful.
|
Bottle conveyor system:
Including empty feeding system, plastic chain
full barrel conveyor system, SUS34 material
|
|
Company information
Workshop detail
Our team
Our exhibition
FAQ
Q1: How to find suitable 5 gallon water filling machine or complete 5 gallon water production line?
A1: Looking for beverage filling machine in www.grandeemachine.en.china.cn
Q2: How to start a water factory business ? What's my budget?
A2: First confirm the source water, send the water samples to your local department and get the water analysis report, then tell us how many tons or liters per your you want to make, like 2000liters/hr, 4000liters/hr, 6000liters/hr, etc, then we can know to choose which model for you, like QGF-80, QGF-120, QGF-150, QGF-300, QGF450, QGF-600,etc.
Q3: How to confirm the bottle shapes that is very attractive for your customer ?
A3: Our engineer can design 5 gallon bottle shapes with your company Logo for you.
Q4: Which kinds of machines included in one complete 5 gallon water production line?
A4: Semi auto or Automatic Decapping machine, internal and external brush washing machine, main 5 gallon washing filling capping machine, automatic labeling machine (optional) light checker, shrink tunnel, feeding bottle conveyors, bottle out conveyors.
Q5: Are you a trading company or a manufactory?
A5: We are the manufacture of water/beverage filling machine and water treatment system over 10 years.We just not only sell drinking water machines and other related equipment , Quality is our culture. We have rich experienced engineers with technicians working team , providing good and after-sales service term , professional salesman terms .
Q6: Do you have technical support after we purchased your machines?
A6: We will arrange our professional technical to go aboard to your factory, they will help you and teach you how to install and maintenance the machines which you purchased. Or help you to fix machine when it has problems.
Q7: If you buy our machines, can you offer us wear-out spare pats?
A7: We provide our high quality machine 2 years guarantee , and we will also offer you 2 years wear-out spare parts for free. Once your machines broken or doesn't work within 2 years and you can't solve it, firstly, we will try to help you to find problems from your words description by phone or other communication tolls. Secondly, if the phone solutions still not work, our engineers will go to your factory to solve it. Meanwhile, they will teach you the related experiences for fixing.
>>
