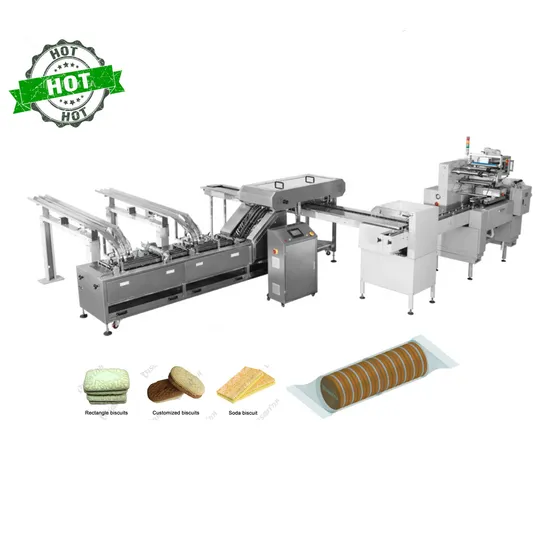

New Product Double Lane Double Single Flavor Biscuit Sandwiching Machine with Servo Drive on Edge Packing Line

Product Description

Automatic stacking counting 12 servo motors drive Two lane single flavor biscuit sandwich machine with on edge packing line Detailed Photos


Product Parameters
Product Parameter

Model	LSM221W
Product name	Double Lane Biscuit Sandwiching Machine with On Edge Packaging Line
Total power	7kw
Voltage	220V/50Hz
Dimension	7830x7000x1455mm
Net weight	1500kg
Capacity	Max.1000pcs/min.
Biscuit size	Round:Φ40-70mm Square:L(40-70)xW(40-70)mm

Biscuit On-edge packaging machine

Model	KBOE2	KBOE3
Output	20-100bags/min	20-160bags/min
Film width	450mm	590mm
Power	7kw,380/50Hz30-90mm	8kw,380/50Hz30-90mm
Height	30-70mm
Bag length	75-240mm
Bag width	30-90mm
Sealing part dimentsion	(L x W): 4020x1260mm
Feeding conveyor	(L x W): 4000x673mm
Films material	Any heat sealing film like paper/PE, OPP/PE, OPP/AL/PE, etc

Biscuit Sample
Products Feature: (1). PLC for simple operation including machine set-up, hopper controls, speed adjustments.
(2). Cream Shapes: can handle a wide variety of shapes, including round, square, rectangle.
(3). 12 servo motors drive the machine performance is much more accurate and stable.
(4). Easy to operate: Simple adjustments for machine speeds, cream volume.
(5). Sanitary design with stainless steel for food contact parts, including cream stencil and interchange faster.
(6). Separating cream holding tank and feeding system.
(7). Electric eye mark detector No biscuit no cream system.
(8). Temperature metering device installed the cream stencil and convenient change-over stencil design for different cream shapes.
(9). Every cream hopper with independent motor and reducer.
(10). Mobile cream hopper can cleaning while finish working separately.
(11).Stainless steel gear pump, connection tubes between cream hopper and stencil are jacket design.
(12).Scrap trays are provided for simple scrap collection and machine cleaning.
Production Flow Chart

Packaging & Shipping
Packaging and shipping for biscuit sandwich machine:
The normal package is film wrapping first then wooden box packaging. If export to european countries,the wooden box will be fumigated.
If container is too tigher,we will use pe film for packing or pack it according to customers special request.
Shipment: Within 30 working days from the date of receipt the down payment.
Usually by sea, but can also according to customer requirements.
Company Profile
Foshan Lison Machinery Co., Limited
Foshan Lison Machinery Co., Limited is a company focus on biscuit machine and packaging machine research, manufacture, selling and after-sales service.
Our product including: Biscuit production line from A to Z, Biscuit sandwiching machine with flow packing machine, Biscuit sandwiching machine with on-edge packaging machine, Biscuit sandwiching machine with rows multiplier, Chocolate depositing machine.
We had exported our products to Europe, America, Middle-East, Africa and Asia countries.
Our missionsTo keep bringing the maximum benefits to our customers.Our StrategiesTo provide high quality, best service and creative products and have a priority to meet our customer's demand with improving their competition and profitable ability.You are warmly welcome to visit us.
Exhibitions
After Sales Service
The after sales service of our biscuit sandwich machine state below:
The plant & machinery supplied by us will have a guarantee period of 15months from the date of shipment. The guarantee is given against any manufacturing defects or faulty materials. Parts damaged by operator mishandling, improper maintenance,power surges, human sabotage etc. will not be covered by our guarantee.

FAQ
1.Q: Are you manufacturer?
A: Yes, we are a biscuit machine manufacturer in China.
2.Q: How is the payment?
A: We accept 40% T/T deposit before production and 60% T/T balance before shipment.
And Western Union or L/C.
3.Q: How long is your guarantee time?
A: We have a guarantee period of 15 months from the date of shipment.
4.Q: What is the mini order quantity?
A: One set.
5.Q: What information does the quotation require?
A: --What kind of biscuit do you make? Pictures of your biscuit if you have. --Which production capacity do you prefer?
6.Q:What's your guarantee or the warranty of the quality if we buy your can filling line?
A:We offer you high quality can filling line with 1 year guarantee . we will give u spare part free in 1 year,
Long time after service. Mean while, our engineers go more than 50 countries for debugging, with rich experience.

7.Q:When can I get my can filling line after I paid?
A:We will deliver the can filling line on time as the date we agreed both side.

8.Q:How can I install my can filling line when it arrives?
A:We will send our engineer to your side as soon as you get all your can filling line ready , for testing
and teaching your technicians how to run the machines.

9.Q:What's the delivery time of can filling line?
A:30-45 days after the T/T deposit or L/C.
