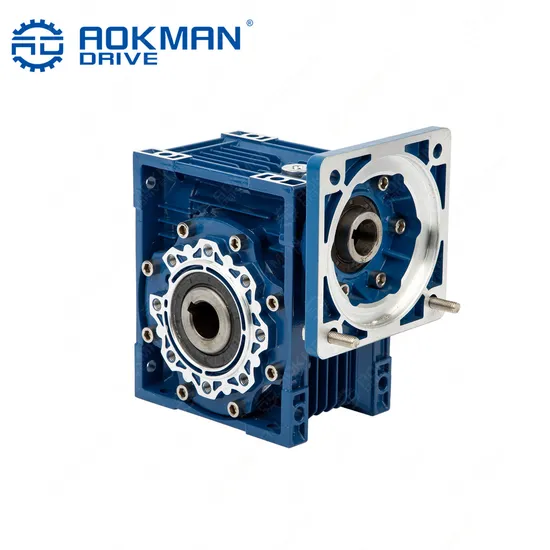

RV Series Worm Gearbox Combination From Aokman

Product Description

RV Series Worm Gearbox Combination From Aokman Product Description Product Description:
Descripyion: RV Series worm gearbox Combination
(1) High quality aluminum alloy die cast gearbox
(2) High accuracy worm gear and worm shaft
(3) Smooth transmission, low noise, easy maintenance
(4) Easy mounting and linking, high efficiency
(5) Power: 0.09-11 kW
(6) Output torque: 13-1050 N. M
(7) Ratio: 7.5-100
(8) Mounting type: Foot mounted, Flange mounted
Material:
Housing: Aluminium or HT250 cast iron.
Gear: 20CrMnTi H, high grade allo with carburization, surface hardness: 58-62HRC, center hardness: 33-48HRC
Grinding precision grade: ISO1328-1: 1995 class 5-6, surfaceness: 0.8, carburization depth: 0.6-1.5mm
Bearing: 42CrMo
Applications:
The products are widely applied in electricity, coal, cement, metallurgy, harbor, agriculture, shipping, lifting, environment protection, stage, logistic, weaving, paper making, light industry, plastics and other regions.

Mounting Type	Foot Mounted,Flange Mounted
Rated Power	0.09kw~11kw
Rated Torque	1.7kw~1760n.M
Ratio	5, 7.5, 10, ... , 100
Input Speed	50Hz or 60Hz of 4pole,6pole and 8pole Motor

The models of RV series worm gearbox:
RV25 RV30 RV40 RV50 RV63 RV75 RV90 RV110 RV130 RV150
NMRV30 NMRV30 NMRV40 NMRV50 NMRV63 NMRV75 NMRV90 NMRV110 NMRV130 NMRV150
NRV25 NRV30 NRV40 NRV50 NRV63 NRV75 NRV90 NRV110 NRV130 NRV150
Product picture:
Structure:
Packing & Delivery:
Our company :
Customer visiting:
FAQ:
1.Q:What kinds of gearbox can you produce for us?
A:Main products of our company: UDL series speed variator,RV series worm gear reducer, ATA series shaft mounted gearbox, X,B series gear reducer,
P series planetary gearbox and R, S, K, and F series helical-tooth reducer, more
than one hundred models and thousands of specifications
2.Q:Can you make as per custom drawing?
A: Yes, we offer customized service for customers.
3.Q:What is your terms of payment ?
A: 30% Advance payment by T/T after signing the contract.70% before delivery
4.Q:What is your MOQ?
A: 1 Set
Contact:



Address: No.1394, Hanghai Road, Zhengzhou, China
Zip Code: 450016
If you have any demand for our products please feel free to contact me.

---
