Product Details
Product Description
Product Description
Product Profile

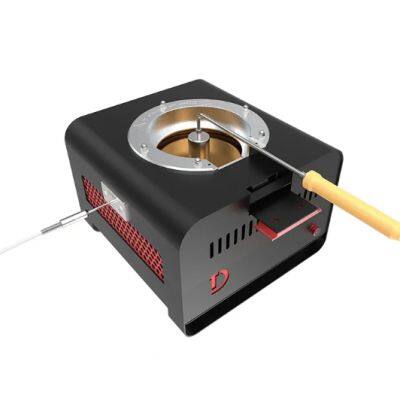

Surface temperature sensor calibrator, mainly used to calibrate various types of surface temperature sensors. such as surface cryogenic thermocouples, thermistors, film sensors, ribbon sensors. By controller and heater, intelligent touch screen control, simple and convenient; effective use range of 130 mm, with communication interface, can communicate with the computer. This product can be used as an infrared thermal camera calibration source if slightly changed.
Product features
1. Wide temperature range, multiple range options : 35~400℃ /50~500℃,/ 50~600℃
2. High calibration plane size,up to 130 mm
3. Rapid cooling, rapid stability: room temperature to 400℃ only 30 min, stable time only 8 min, equipped with a rapid cooling device to assist cooling, to achieve multiple rounds of inspection
4. Stable temperature control ±0.3℃/10 min(@300℃)
5. High resolution 0.01℃
6. Multi-stage temperature control, section PID control.
7. The measuring surface is coated with aerospace Composites for high hardness, good wear resistance and high thermal conductivity.
8. Clamshell design can be used for calibration of L elbow surface temperature sensor
9. There is a standard device Jack on the side, which can insert the standard device directly below the center of the measuring surface and effectively improve the calibration accuracy
10. RS232 communication support, communication software
Product Paramenters
Model
| DTZ-400BG
| DTZ-450BG
| DTZ-460BG
|
Temperature range
| 35℃~400℃
| 50℃~500℃
| 50℃~600℃
|
Calibration plane diameter
| 130mm
|
Homogeneity
| 0.3℃@25~100℃ ；0.7℃@100~300℃；1.2℃@300~400℃
|
Stability (10min)
| ±0.2℃@25~100℃ ±0.3℃@100~300℃ ±0.4℃@300~400℃
|
Temperature rising time
| Room temperature to 400℃,30min
|
Temperature falling time
| 400℃ to room temperature (with rapid cooling , only 45min)
|
Stability time
| 8min
|
Resolution
| 0.01℃
|
Power supply
| 220V/50HZ / 60Hz
|
Communication Interface
| RS-232
|
Sensor type
| RTD 100Ω
|
Heating furnace size
| 280(L)X270(W)X190(H) mm
|
Controller size
| 218(L)X175(W)X145(H) mm
|
Total Weight
| 12kg
|
Storage condition
| −20℃~60℃ (-4℉~140℉),5%RH~80%RH(No condensation)
|
>>
