Hot Selling Gr9 Ti-3al-2.5V Titanium Alloy Wire in China

Product Description

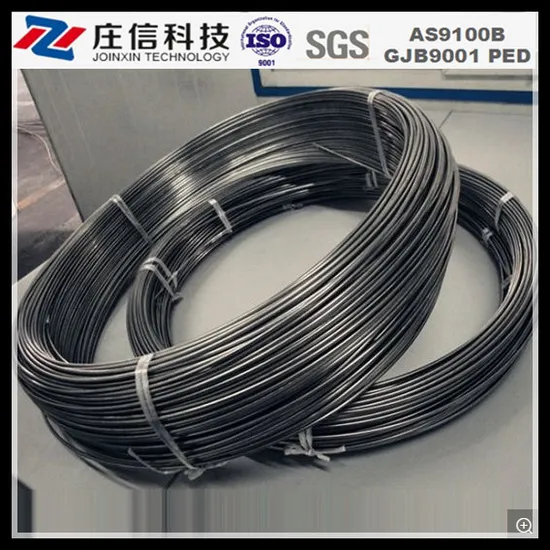

Hot Selling Gr9 Ti-3AL-2.5V Titanium Alloy Wire in China
Standard of Titanium Wire
GB/T 3623, ASTM B863
Grade of Titanium Wire
Grade1 Grade2 Grade3 Grade4 Grade5 Grade7 Grade9 Grade12 Grade23
Specifications of Titaniium Wire
Diameters from 0.1mm-3mm
Chemical Composition

Grade	N	C	H	Fe	O	Al	V	Pa	Mo	Ni	Ti
Gr1	0.03	0.08	0.015	0.2	0.18	/	/	/	/	/	Bal
Gr2	0.03	0.08	0.015	0.3	0.25	/	/	/	/	/	Bal
Gr3	0.05	0.08	0.015	0.3	0.35	/	/	/	/	/	Bal
Gr4	0.05	0.08	0.015	0.5	0.4	/	/	/	/	/	Bal
Gr5	0.05	0.08	0.015	0.4	0.2	5.5-6.75	3.5-4.5	/	/	/	Bal
Gr7	0.03	0.08	0.015	0.3	0.25	/	/	0.12-0.25	/	/	Bal
Gr9	0.03	0.08	0.015	0.25	0.15	2.5-3.5	2.0-3.0	/	/	/	Bal
Gr12	0.03	0.08	0.015	0.3	0.25	/	/	/	0.2-0.4	0.6-0.9	Bal

Tensile Requirements

Grade	Elongation(%)	Tensile Strength (Min)		Yield Strength (Min)
		ksi	Mpa	ksi	Mpa
Gr1	24	35	240	20	138
Gr2	20	50	345	40	275
Gr3	18	65	450	55	380
Gr4	15	80	550	70	483
Gr5	10	130	895	120	828
Gr7	20	50	345	40	275
Gr9	15	90	620	70	438
Gr12	18	70	438	50	345

Category	Material	Dimension(mm)	Specification
Titanium & Alloy ingots & bars	CP Ti, Ti-6Al-4V, Ti-6Al-4V Eli, Ti-3Al-2.5V, Ti-5Al-2.5Sn, Ti-5Al-2.5Sn Eli, Ti-0.05Pd, Ti-0.2Pd, Ti-6Al-7Nb, Ti-13Nb-13Zr, Ti-0.1Ru, Ti-3Al-8V-6Cr-4Mo-4Zr, Ti-6Al-4V-0.1Ru, Etc.	Standard or customized	GB/T 2965, ASTM B348
Titanium & Alloy castings			GB/T 6614, ASTM B367
Titanium & Alloy forgings			GB/T 25137, ASTM B381
Titanium& Alloy plates			GB/T 3621, ASTM B265
Titanium & Alloy strips & foils			GB/T 3622, ASTM B265
Titanium Cold rolled Ti & Alloy strip coils			GB/T 26723, ASTM B265
Titanium & Alloy wires			GB/T 3623, ASTM B863
Titanium & Alloy seamless tubes			GB/T 3624, ASTM B861
Titanium & Alloy welded tubes			GB/T 26057, ASTM B862
PM Titanium & Alloy components			GB/T 6887, ASTM B817

Titanium Production Process
Titanium Production Equipment
About Us
Why Choose Us? 53 years of titanium R&D and production experience Our products have been exported to more than 30 countries all round the world State-owned company with great credit and strong financial strength Competitive price,best service, strict quality control system and on-time delivery Related Supply Chain Service
Contact Us
XI'AN JOINXIN NEW MATERIAL TECHNOLOGY CO.,LTD
Factory Address: 22nd Floor, Kerry B, Wei Yang Dist., Xi'an 710018, PRC.

---
