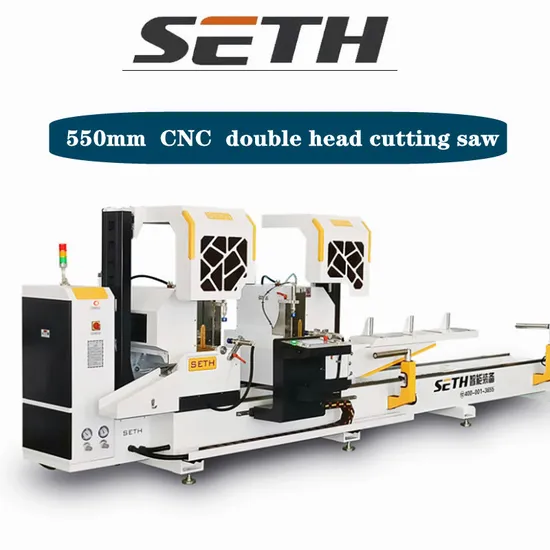

CNC Double-Head Cut off Machine out Tilting Type

Product Description

Jinan SETH Intelligent Equipment Co.ltd.
Provide advanced equipment and comprehensive solutions for doors,windows and curtain walls.
Provide competitive products and services to create maximum value for users.
Jinan SETH Intelligent Equipment Co.,Ltd.
Product Description
Equipment features:
☆ Mainly used for cutting industrial aluminum profiles, aluminum doors and Windows, curtain wall materials, also can be used for PVC and wood cutting profiles.
☆ The machine adopts numerical control technology and can complete automatic positioning cutting of different sizes of profiles.
☆ Selected high-quality aluminum carbide saw blade, outer diameter up to 500mm,550mm,600mm
high wire speed, high processing accuracy.
☆ CNC transmission adopts high standard rack and pinion, high transmission accuracy, accurate positioning, stable work.
☆ High precision spindle ensures stable rotation of saw blade and effectively improves surface quality of workpiece.
☆ Air-liquid damping cylinder to achieve uniform feed speed regulation, smooth movement.
☆ The use of micro spray cooling device.
☆ Automatic head rotation, bidirectional positioning, clamping, single head can work independently. Automatic opening and closing protective cover make operation safer.
☆ The saw blade automatically swings into 45° and 90° angles, automatically opens and closes the protective cover, so that the operation is safer.
☆ Saw blade from back to front, saw cutting profile is more safe and reliable, and saw cutting height and saw cutting width are very large.
Product Parameters

Power	380V 50HZ
Saw head motor	2×3KW/ 2840r/min
Working pressure	0.5 ~ 0.8mpa
Air consumption	60L/min
Saw length	Max4300mm MIN420mm (8200-300)
Saw width	Max 140mm
Maximum cutting slope	45°140×220mm 90°140×300mm
Sawing Angle	90°, 45°
Feed speed	stepless speed regulation 0-3m/min
Saw blade specifications	ø500 × ø30 × 4.4× Z120
Dimensions	5800×1800×1500 mm
Weight	1650 kg
Repeat constant length accuracy	≤ 0.05mm
Profile cutting Angle tolerance	±3 '
Cutting plane flatness	≤ 0.1m
Roughness of cutting surface	Ra12.5μm

Company Profile
Jinan SETH intelligent equipment co., ltd. specializes in the production of aluminum,upvc window and door machine,curtain wall and hollow glass processing machine equipment that can meet the needs of different clients, and can also be customized according to customer requirements of different grades of products.
The company has rich experience in production and more than 10 national patents and passed ISO9001,SGS,CE certifications, excellent product design and development engineers, skilled production engineers, experienced production management team and after-sales service that providing you with a strong guarantee.
our main products including aluminum&uPVC profile machining center, saw machine ,milling machine,welding machine,corner cleaning machine.corner crimping machine,punching&drilling machine.
Customer is the foundation, the company in line with the " quality first, customer first" principle, Please join hands with SETH to lead intelligence.
