Factory 12m Mobile Aerial Working Electric Hydraulic Self Propelled Scissor Man Lift

Product Description

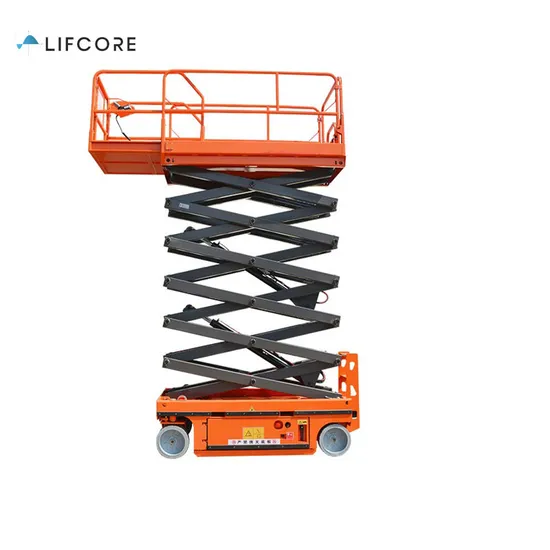

Factory 12M Mobile Aerial Working Electric hydraulic Self Propelled Scissor Man lift
The self-propelled scissor lift, also known as a self-propelled aerial work platform, operates fully automatically and is powered by batteries with hydraulic lifting capabilities. It features four non-marking rubber tires, with the front pair being hydraulic steering tires and the rear pair serving as drive tires. This scissor lift is easily maneuvered and allows for convenient operation across various job sites. Widely applied in construction, streetlight maintenance, roof repairs, and other elevated tasks, the electric scissor lift not only reduces labor expenses but also enhances work efficiency, making it the optimal choice for aerial work
Product Parameters

Model	LKJZ06	LKJZ08	LKJZ10	LKJZ12	LKJZ14
Max. Working Height	8.00m	10.00m	12.00m	14.00m	16m
Max.Platform Height	6.00m	8.00m	10.00m	12.00m	14m
Loading Capacity	320kg	500kg	500kg	320kg	320kg
Extension Load	113kg	113kg	113kg	113kg	113kg
Platform Dimension	2.27x1.11x1.11mm	2.27×1.11x1.11m	2.26×1.13×1.1m	2.29×1.13×1.1m	2.67×1.13
Overall Size (Guardrail not folded)	2.48×1.15×2.22m	2.48×1.15×2.22m	2.48×1.15×2.42m	2.48×1.19×2.55m	2.81×1.25×2.75m
Overall Size (Guardrail folded)	2.48×1.15×1.68m	2.28×1.15×1.68m	2.48×1.15×1.97m	2.48×1.19×2.10m	2.81×1.25×2.1m
Platform Extension	0.9m	0.9m	0.9m	0.9m	0.9m
Min. Ground Clearance	0.1/0.02m	0.1/0.02m	0.1/0.02m	0.1/0.02m	0.1/0.02m
Wheelbase	1.89m	1.89m	1.89m	1.89m	1.89m
Turning Radius (Inner/outer)	0/2.2m	0/2.2m	0/2.2m	0/2.2m	0/3m
Lifting/Driving Motor	24V/3.3Kw	24V/3.3Kw	24V/4.5Kw	24V/4.5Kw	24V/3.3Kw
Lifting Speed	3-5m/min	3-5m/min	3-5m/min	3-5m/min	3-5m/min
Driving Speed (Standard)	3.5km/h	3.5km/h	3.5km/h	3.5km/h	3.5km/h
Driving Speed (Lifting)	0.8km/h	0.8km/h	0.8km/h	0.8km/h	0.8km/h
Battery	4×6V/230ah	4×6V/230ah	4×6V/225ah	4×6V/200ah	4×12V/150ah
Charger	24V/30A	24V/30A	24V/30A	24V/30A	24V/30A
Max. Climbing Ability	25%	25%	25%	25%	25%
Max. Slope	2°/3°	2°/3°	1.5°/3°	1.5°/3°	1.5°/3°
Tire	Φ381×127mm	Φ381×127mm	Φ381×127mm	Φ381×127mm	Φ590×190mm
Total Weight	2040kg	2130kg	2580kg	2860kg	3600kg

Detailed Photos

Our Advantages

Features:
Sturdy steel plate platform with a slip-resistant surface for safety.
Robust steel pipe guardrail with an extendable end track to accommodate larger loads.
Maintenance-free, pivot mechanism requiring no lubrication.
Integrated lanyard attachment for added safety.
Ergonomically designed joystick controller operable from both the platform and the ground.
Low noise operation, creating a quiet work environment for operators.
Exceptional maneuverability thanks to the large corner steering system.
Easily accessible swing-out battery box and power module for convenient component maintenance.
Variable speed motor for extended battery and motor life, consuming only necessary energy for tasks.
Onboard fault diagnosis system alerts operators to potential errors.
Adequate chassis height for traversing rough terrain.
Thoughtfully designed for reliability and straightforward maintenance.
Equipped with an emergency descent safety feature.
Self-sufficient operation with no external power supply or traction needed during work.
Construction would have never been that convenient if there were no aerial work platform solutions in place.
From construction sites to offices and homes, hydraulic lifts and elevators play a pivotal role in managing the lifting requirements. Manufacturing hydraulic lifts that deliver reliability and services require extensive experience, dedication, and professionalism. Lifts and elevators have become an essential part of our lives.
From being used in businesses to homes, these lifts provide convenience, efficiency, and comfort. we are dedicated to providing our clients with the best quality lifts and elevators at highly affordable rates.

Lifcore is an independent and professional lift platform and home elevator manufacturing factory in the heart of China's manufacturing origin. We introduce ourselves as the hydraulic lift platforms supplier and take pride in serving our clients with excellent quality customized lift solutions. We are a certified and bonded business that ensures you get the best product and service experience.
What We Offer
We are the biggest hydraulic lift, and home lift Manufacturer Company, offering a wide range of scissors, lifts, residential villa home lifts, boom lifts, hydraulic lift platforms, and home elevators. Our products are conceptualized, designed, and manufactured at our own facility to ensure excellent quality at each step of the process.

---
