Dds1560 Three Phase Four Wire Power Meter

Product Description

DTS1560 Information
Zhejiang HUADU DTS1560 Series Three Phase energy meter. It is designed for high level performance and are safe and fast to install.
"TAINIHAN" have a complete range of electricity meters for different applications, the meters are quick and easy to install.
It is highly accurate, durable, reliable, lower power consumptive, Creep proof and strong overloading capability. It according to the related Chinese requirement of GB/T17215.321-2008 and International requirement IEC62053-21
DTS1560 Specifications

1	Type	DTS1560 Register
2	Display	LCD 6+2
3	Accuracy	Class 1
4	Rated Voltage (Un)	3 X 110V/220V/230V/240V/380V/400V
5	Base Current (Ib)	5A, 10A,15A, 20A or other
6	Max Current (Imax)	20A, 40A, 60A, 80A or other
7	Frequency (Hz)	50Hz Or 60Hz (±5%)
8	Starting Current (mA)	0.4% Ib
9	Power Consumption of Current	≤2W 10VA Per Phase
10	IP Class	IP51
11	AC Voltage Withstand	2KV for 1 Minute
12	Impulse Output Rate (Imp/kWh)	1600, 800 Or Other
13	Operating Temperature	-20ºC To +55ºC
14	Storing Temperature	-40ºC To +70ºC
15	Operating Humidity	≤75%
16	Storing Humidity	≤95%
17	Communication	N/A
18	LCD Display Backlight	Optional
19	Battery	N/A

DTS1560 Function in Display and monitoring
Register Display 5digits+1Decimal,
Impulse led indicator
L1 L2 L3 led indicator

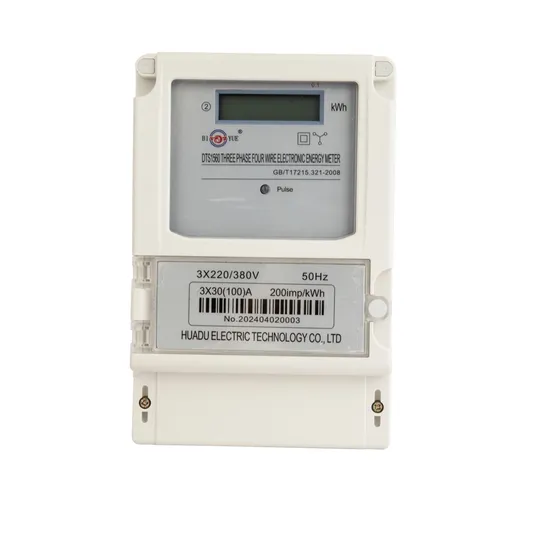

Front Side Photo
Left Side Photo
Right Side Photo
Back Side Photo
Top Side Photo
Bottom Side Photo
