Zxj-380-a Pillow Filling Machine for Cushion Toys Pet Mats

Product Description

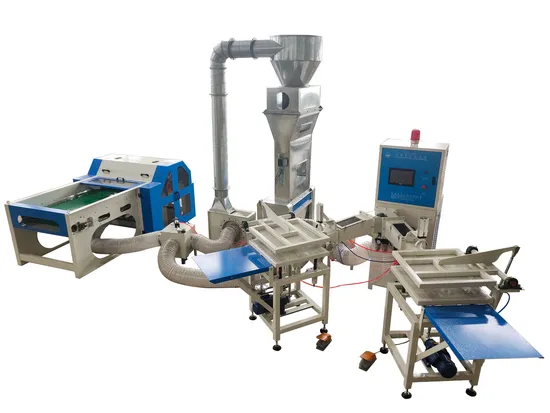

ZXJ-380-A Automatic pillow stuffing machine
Theory of operation:
Open and loosen the chemical fiber- Send the opened and loosened fiber to cotton basket by blower fan- Adjust the fix-quantity according to user's need- Load the down filler into the pillow case by blower fan, at the same time, the shaker flaps the pillow, makes it well-proportioned, plump and uneasy to change shape.
Features:
1) ZXJ-380 is the third generation Pillow Filling Machine produced in our company, and is developed firstly in China. It overcomes the disadvantage of low output and big error in fixing quantity. It is suitable for processing microfiber, common polyester fiber etc.
2) Capacity: 120kg/h
3) Error in fixing quantity: ≤ 25g per 500g pillow
4) Pressure: 380V 50hz 3 phases
5) Total power: 13kw
6)Packing dimensions (L xW x H): 2250*1590*1600mm, 1160KG, 1000KG
2230*1590*2150mm, 800KG, 650KG.

Machine name	ZXJ-380-A Pillow filling machine
Raw fibers	0.9D-3D microfiber, 6D-15D fiber
Capacity	100-150kg/h
Voltage	380V 50HZ 3 Phases

Finished products:

---
