CNC Deep Hole Internal Grinding Machine Tool

Product Description

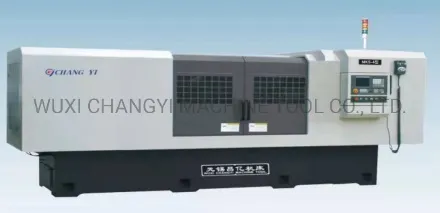

MKS-4 CNC Deep hole internal grinding machine
Main application and integral structure
1. The machine is a two axis two linkage CNC deep hole internal grinder, which can grind the internal round hole, step hole, internal cone hole, internal round end face and external round end face of the work piece. It has the functions of automatic feed, automatic rough grinding, fine grinding, automatic withdrawal, automatic dressing of grinding wheel, automatic compensation, etc.
2.The machine bed is made of wear-resistant cast iron, fixed by work piece spindle box, reciprocated by worktable and fed by grinding wheel rack.
3.It adopts programmable numerical control system, automatically carries out grinding wheel correction, compensation, automatic feeding during work piece grinding, automatically carries out intermediate correction, correction compensation, grinding compensation, fine grinding delay, automatic tool withdrawal return and other actions.
4.The feed guide rail of the grinding wheel rack and the reciprocating guide rail of the worktable adopt the high rigidity and high precision rolling linear guide rail. The machine tool is a fully enclosed protective and waterproof cover, equipped with a knapsack type electrical box and a front rotary operating platform.
5.The machine tool adopts German Siemens editable numerical control system with Ethernet interface. The main electrical components are Schneider. The electric box is equipped with special air conditioner and special lighting.
Main technical specification

S.N.	Name	Main technical specification
1	Weight of machine tool	12500(kg)
2	Overview dimension of machine tool	5300x2000x2500(mm)
3	Rated power	25.8(KW)
4	other specifications
	Motor power of work piece	4(KW)
	Motor power of internal grinding wheel spindle	5(KW)
	Motor power of end face grinding wheel spindle	9-12(KW)
	Servo motor power of X axis	2(KW)
	Servo motor power of Z axis	4(KW)
	Max. Moving speed of work table	10(m/min)
	Max. Moving speed of feeding structure	10(m/min)
	Rotation speed of work piece	50-800 stepless speed regulation(r/min)
	Rotation speed of internal grinding wheel	2000-12000stepless speed regulation(r/min)
	Rotation speed of end face grinding wheel	0-18000 stepless speed regulation(r/min)
	Max. rotation angle of work piece case	-2+4°
	Max. loading weight of work piece	300-1000(kg)
	Longitudinal stroke of work piece case	1200(mm)
	Feed stroke of grinding wheel axis	300(mm)
	Longitudinal stroke of work table	1300(mm)
	Processing scope
	Grinding inner diameter scope	20-200(mm)
	Max. Grinding depth	1000(mm)
	Processing accuracy
	inner hole roundness	0.005(mm)
	inner diameter cylindricity	0.02/200(mm)
	inner hole surface roughness	Ra0.63(um)
	Form and location tolerance of inner hole roundness	0.010(mm)

---
