2cavity Semi-Automatic Stretch Blowing/Blow Moulding Machine for Plastic Bottle

Product Description

D-R802 Semi-Automatic blow moulding machine
https://chinadoria.en.made-in-china.com/product-list-1.html
1. Model: D-R802
Description & Features:
D-R802 Stretch Blow Molding Machine is suitable to produce different shapes of PET/PP bottles/jars as well as PMMA globes(neck size below 100mm). It is applicable for blowing bottles from 100ml to 6000ml and is widely used to produce mineral water, carbonated drink, juice, and medicine, cosmetic and oil bottles etc.
The machine adopts revolving infrared pre-heat system. It ensures PET preforms be heated evenly.
The machine uses mechanical-double-arm mould clamping which ensures the mould will be closed tightly even under high pressure and high temperature.
The air system consists of two parts: pneumatic action part and bottle blow part to meet the different pressure requirements for the action and blowing. It can provide sufficient and steady high pressure for blowing large irregular shape bottles.
The machine is also equipped with silencer and oiling system to lubricate the mechanical parts of the machine.
The machine can be operated in the step-by-step mode and the semi-auto mode.
2. TECHNICAL SPECIFICATION

TYPE	ITEM	UNIT	TECHINICAL DATA
END PRODUCT	Material		PET/PP/PE/PC
	volume	L	0.05-2.5(2-cavity) 3-6(1-cavity)
	theoretical output	pcs/hr	0.05-2.5L:850 3-6L:400
	Max. length	mm	360
	Max. diameter	mm	180
MOULDING	Max.mould plate dimension(L*H)	mm	420 X 500
	max thickness of mould	mm	160-240
	clamping force	KN	180
	mould opening stroke(adjustable)	mm	200
AUXILIARY	High air pressure compressor	M3 /Mpa	≥1.2/3.0*1set
	air filters	M3 /Mpa	≥1.0/3.0*2pcs
main machine electricity	power	KW	6
	voltage/frequency	V/HZ	220/380/50-60 (3-phase)
machine size and weight	Blower dimension (L*W*H)	M	1.53*0.6*2.0
	Blower weight	T	0.6
	Infrared- heater(L*W*H)	M	1.8*0.5*1.16
	Infrared- heater weight	T	0.3

3. Spare parts of D-R802 heater

Item	Specification	Origin	Quantity
Rotating motor	0.55KW	Shanghai Yifang	1pc
self-rotating motor	40W	Dechang	1pc
air switch	60A(3phase)	Lantai Electronic	1pc
air switch	15A(single phase)	Lantai Electronic	10pcs
heating lamp	L 450mm,500W	Taizhou,China	32pcs
fan	3"	Taizhou,China	1pc
fan	5"	Taizhou,China	2pcs
startup button		China	2pcs
indicator		China	2pcs
voltage regulator	ZKD-2000	AOYI	8pcs
Temperature meter	XMTD-8000	AOYI	1pc
transducer		Yishen,China	1pc

4. Spare parts of D-R802 blower:

Item	Specification	Origin	Quantity
PLC	AG/AI59-32M	Shenzhen,China	1pc
Stretch cylinder	Φ63*50+Φ32*410	Germany	1pc
Mould-clamping cylinder	Φ100*265	Germany	1pc
Low pressure electromagnetic valve	MLH-5-1/4-B	Germany	3pcs
High pressure electromagnetic valve	YO23TD-15P2	Yongcheng,China	2pcs
High pressure filter	QSL-15F9(0.1-3.5MPa)	Yongcheng,China	1pc
atomizer		Airtac,Taiwan	1pc
Pressure-reducing valve	QTYH-15	Yongcheng,China	1pc
Emergency stop		Taizhou,China	3pcs
H/L pressure meter	0--4MPa/0---2.5MPa	Yongcheng,China	2pcs
Pressue-adjusting valve	KLA-8	Yongcheng,China	2pcs

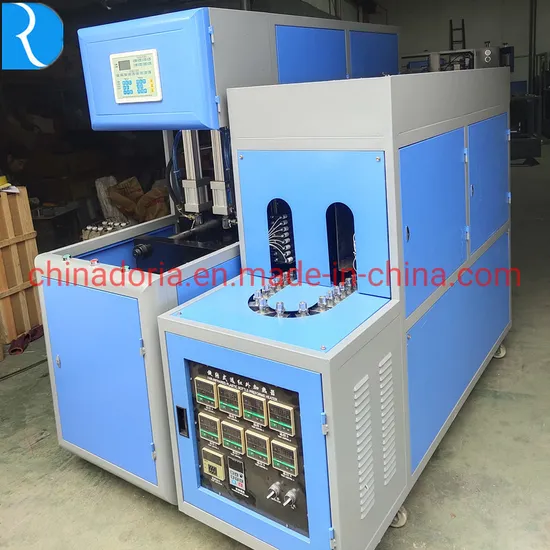

5. Picture of D-R802
6. About us:
Taizhou Doria Plastic Equipment Co., Ltd. is located the town of plastic products and mould in China, which is one manufacturer owns special production teams, advanced production equipments and rich production experience.
The main products are following: Automatic & semi-automatic blow moulding machine, PET preform, plastic injection machine, preform moulds, bottle moulds, commodity moulds and correlative products.
5gallon PET preform and commodity moulds are widely accepted by our customers.
Welcome everyone to visit us; we hope we will have good chance to cooperate!
7. Location:
No.362 Lingxiage Village
Xicheng Street, Huangyan
Taizhou, Zhejiang
China

---
