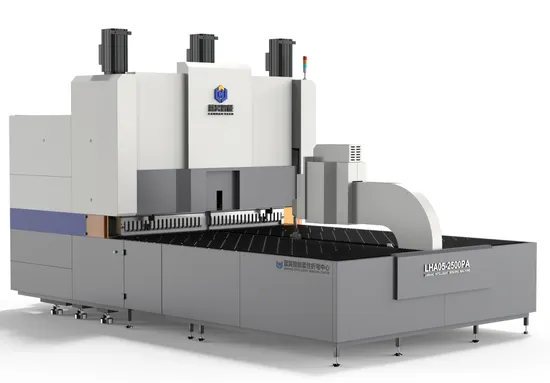

Automatic 2000 CNC Automatic Panel Bender

Product Description

LHA-PA series is a new generation of high-end panel bender created by Lanhao for bending thick plates. It adopts exclusive pneumatic pressing tool patent technology, which is suitable for bending thicker plates and can complete various sheet metal bending processes within 3mm. Disassembly and tool change are more flexible and convenient. Standard with Lanhao patent power hinge knife, through the servo control of the hinge knife expansion and contraction, no lateral shovel force, effectively avoid shovel plate, scratches
Lanhao panel bender is a premium sheet metal automation equipment designed to reduce labor costs and increase production capacity for sheet metal processing enterprises. It offers fast bending speed, high efficiency, and consistent product quality. The equipment automatically positions and bends, effortlessly achieving various bending shapes like circular arc, crushed edge, loop type, closed type, and complex forms using versatile bending dies. It has been widely applied in nearly a hundred fields, including file cabinets, tool cabinets, electrical cabinets, communication cabinets, kitchenware, furniture, ventilation, purification, refrigeration, decoration, doors, elevators, and more.
Product Parameters

LHA-PA Technical parameters
Feeding structure	Pressing arm
Work table structure	brush
System minimum accuracy	0.001mm
Max bending speed	0.2 second/time
Max feeding speed	90m/min
Max.bending width	2000mm
Max.Bending size	L 3200mm X W 1500mm
Max. Bending height (The maximum bending height after customization can reach 300mm)	170mm 300mm(customizable)
Min. Bending height	3mm
Min.arc radius	0.5mm
Rated power	380V
Motor power	79KW
Average power	About 2.8 KW
Noise	About 50 dB
Machine size	L510cm X W265cm X H330cm
Total weight	About 16 tons
User operating environment	Win7 or above system
Max. Bending thickness	UTS 515N/mm2 304 stainless steel 2.0mm UTS 410N/mm2 cold panel 3.0mm UTS 265N/mm2 aluminum panel 3.0mm
Min. Panel thickness	0.35mm
Four side forming min. Inner size	About 140mmx190mm( excluding inverted folded side)
Double side forming min. Inner size	About 140mm
Bending angle	0-180 degree
Axis	15
