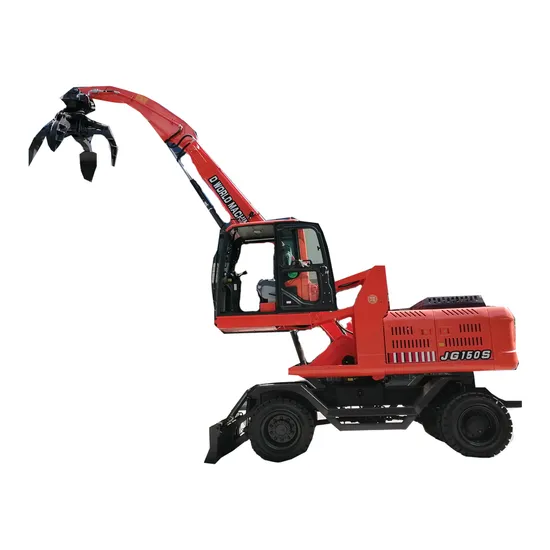

Jinggong Mobile Grabbing Crane Material Handling Wheel Excavator Grapple Digger

Product Description

We are Quanzhou Jingli Engineering And Machinery Co., Ltd.,one of the professional excavator manufacturers in China,
with 20 years of excavator manufacturing experience.
As the professional level of users is getting higher and higher, in order to meet the customer's demand for products,
Jingong Machinery constantly innovates and upgrades the products, and optimizes and improves the products from
the professional perspective of future development.
Since its establishment in 1997, Jingong has always been adhering to the business philosophy of "survive by quality,
rely on efficiency through management", put customers first, and develop and manufacture products that are popular
in the market.
Since the inception of our firm, we are highly dedicated towards providing a quality approved array of JG
Backhoe Loader Excavator that is checked before being delivered.
Our company mainly produces wheeld excavator, crawler excavator, grapple excavator, material handler, forklift,
railway machine,sugarcane combine harvester.
We provide more optional parts to complete more kinds of work.
We provide a variety of work tools such as grabs, forks, pulverizers, etc. to meet your various application needs.
In addition, a variety of fixtures are provided to optimize the performance of the machine. The auxiliary hydraulic lines
are arranged on the base of the boom, making the auxiliary hydraulic circuit easier to install, thereby reducing the time,
parts and costs required for installing work tools.

SPECIFICATIONS OF JG150L Orange Peel Grapples Steel Grab Scrap Metal Grapple
RANGE OF OPERATION			Boom length				4200mm
			Arm length				2000mm
			Maximum Digging Reach				7200mm
			Maximum Digging Depth				4800mm
			Maximum Digging Force				90KN
			Maximum Digging Height				7180mm
			Maximum Dumping Height				5080mm
			Back-end radius of gyration				2300mm
DIMENSION			(Length*width*height) travel position				7500*2460*2920mm
			Machine Height				2730mm
			Wheel base				2850mm
			Track Gauge				1960mm
			Width Of Crawler				500mm
			Width Of Platform				2460mm
			Ground clearance of counterweight				900mm
			Min ground clearance				420mm
TECHNICAL PARAMETERS			Angle of rotation				360°
			Machine weight				13500kg
			Engine model				LRM3Z-22/4BTAA3.9
			Rated Power				85KW
			Rated Speed				2200r/min
			Hydraulic system working pressure				26Mpa
			Hydraulic system flow				270L/min
			Metering gear pump				2*63ml/r
			Max Hauling force				76.5KN
			(High speed/low speed)				5/2.9km/h
			Grade Climbing ability				70%/35°
			Volume Of Bucket				0.5m3
			Revolution Overdrive Pressure				25Mpa
			Full circle swinging time				5.5s
			Fqt Fuel Quantity				≥8L/h
			Capacity Of The Fuel Tank				226L
			Hydraulic Tank Capacity				227L

---
