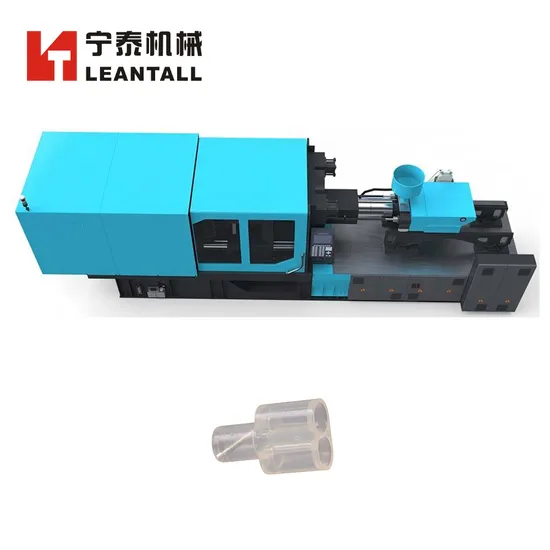

Advanced Nt180 Ton Metal Injection Molding Machine with Robot

Product Description

Product Parameters

Part	Name	Unit	NT180
Injection Unit	SCREW DIAMETER	mm	42	45	50
	SCREW L/D RATIO	L/D	21.4	20	18
	INJECTION STROKE	mm	225	225	225
	NJECTION SPEED	Mm/sec	94	94	94
	SHOT VOLUME(THEORETICAL)	CM3	312	358	442
	INJECTION WEIGHT(PS)	g	284	326	402
	INJECTION PRESSURE	Mpa	218	190	154
	INJECTION RATE	cm³/sec	130	149	184
	SCREW SPEED	rpm	210
Clamping Unit	CLAMP FORCE	Kn	1800
	OPEN STROKE	mm	435
	SPACE BETWEEN TIE BARS	mm×mm	525X465
	MAX.MOULD HEIGHT	mm	550
	MIN.MOULD HEIGHT	mm	180
	EJECTOR STROKE	mm	129
	EJECTOR FORCE	Kn	46
	EJECTOR NUMBER	N	5
Others	MAX.PUMP PRESSURE	Mpa	16
	SEVRO DRIVE POWER	Kw	22
	HEATING POWER	Kw	9.9
	MACHINE DIMENSION(L*W*H)	m×m×m	5.4*1.4*2.3
	MACHINE WEIGHT(ESTIMATE)	T	5.4

Product Description
Packaging & Shipping
Company Profile
Our Advantages
Q: Are you manufacturer or trading company? A: We are a manufacturer with extensive experience in the industry boasting decades of expertise, strategically located in the vibrant Zhejiang province. Q: What is the product range? A: Our focus is on the innovative manufacture and development of plastic injection molding machines, along with essential auxiliary equipment such as cooling towers, chillers, and more. Q: Where is your main selling market? A: We have a thriving business presence in various regions including domestic markets, the USA, Russia, Indonesia, Egypt, Turkey , Uzbekistan, Pakistan, and beyond. Q: Will you offer field installation and operator training at the buyer's factory? A: Absolutely, we will deploy our team of skilled engineers to ensure seamless field installation and comprehensive training at your facility. Q: What is the delivery time(equipment production time)? A: The production time is approximately 50 days, after mutual confirmation of order details and receipt of prepayment. Q: Do you also have source for molds and spare parts? A: Yes, we offer molds and spare parts with assured competitive quality and a reasonable price. Customization is available as per your requirements. Q: What is the standard of package? A: We use wooden case packing for auxiliary equipment and bare packing for the main plastic injection molding machine. We highly recommend full container shipment for secure delivery.

---
