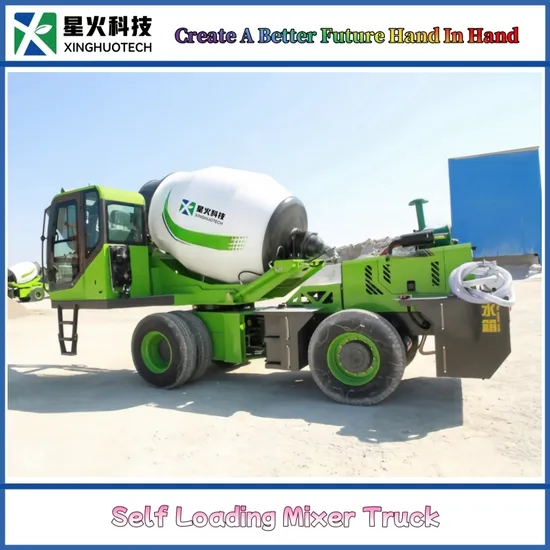

3.5 Cbm Self Loading Concrete Mixer with 4 Forward and 4 Reverse Gears

Product Description

Product Description
Experience the cutting-edge technology of our automatic feeding mixer truck! This state-of-the-art vehicle is equipped with an advanced hydraulic and electronic control system, elevating the automation of concrete mixing operations to unprecedented levels.
The sophisticated working principle of this innovative device is comprised of three core components:
Firstly, it is the automatic loading system, deftly managing the hopper's movements via the hydraulic system to effortlessly feed raw materials into the powerful mixing drum;
Next comes the powerful and efficient mixing process, where the mixing drum performs precise rotations and strategic tilts, thoroughly blending the raw materials to deliver concrete of the highest quality;
Finally, the process concludes with the highly accurate automatic unloading system. As the mixing drum reaches the meticulously set tilt angle, the concrete is expertly discharged to the designated position with impeccable precision.
Application field
In practical applications, our cutting-edge automatic feeding mixer trucks have proven their versatility and effectiveness. They consistently deliver outstanding performance in diverse environments, such as construction sites, road engineering, water conservancy engineering, tunnel construction, bridge construction, and rural construction.
1. The remarkable advantage of our automatic feeding and mixing technology is its high level of automation, dramatically cutting down on manual effort and significantly enhancing operational efficiency.
2. The assurance of uniform mixing is key to maintaining superior concrete quality. Its on-site preparation flexibility diminishes the reliance on traditional mixing plants, offering unparalleled adaptability.
3. Additionally, the system's efficiency in labor and equipment utilization translates to substantial cost savings, delivering significant economic advantages to construction enterprises.
4. In summary, this state-of-the-art concrete mixing solution, with its modern efficiency, holds vast potential and is worthy of focused attention and promotion within the industry for its transformative impact.
Product Parameters

Equipment Model	XS-1.2	XS-1.8	XS-2.0C	XS-2.6C	XS-3.5C	XS-4.0D	XS-5.5
Discharge Capacity	1.2 m³/batch	1.8 m³/batch	2 m³/batch	2.6 m³/batch	3.5 m³/batch	4 m³/batch	5.5 m³/batch
Output Capacity	5~10m³/h	8~12 m³/h	10 m³/h	11~17 m³/h	14~18 m³/h	16~20 m³/h	22~25 m³/h
Mixing Drum Capacity	1700 L	2680 L	3500 L	3580 L	4740 L	6000 L	7800 L
Drum Rotate	0º	270º	270º	270º	270º	270º	270º
Engine Model	Yunnei 490 Turbo-charged	Yuchai 4102 Turbo-charged	Yuchai 4102 Turbo-charged	Yuchai 4102 Turbo-charged	Yuchai 4105 Turbo-charged	Yuchai 4108 Turbo-charged	Yuchai 6105 Turbo-charged
Rated Power	55 KW	75 KW	75 KW	75 KW	85 KW	91 KW	92KW~132KW
Gearbox Model	ZL-265	ZL-265	ZL-265	ZL-280	ZL-280	ZL-315	ZL-428
Gearshift	4 forward 4 back	4 forward 4 back	4 forward 4 back	4 forward 4 back	4 forward 4 back	4 forward 4 back	4 forward 4 back
Fuel Tank	63 L	63 L	75 L	120 L	120 L	120 L	160 L
Water Tank	400 L	400 L	500 L	500 L	920 L	750 L	850 L
Water Supply	Time relay	Time relay	Time relay	Time relay	Time relay	Time relay	Time relay
Overall dimensions (L*W*H) mm	7300*1800*3450	7300*2650*3750	6950*2720*3850	7100*2750*4100	7600*2800*4180	8450*3000*4500	8450*3100*4580
Curb Weight (kg)	4920	6000	6300	7800	8300	9700	11200

Our Advantages
Multi-functional: Say goodbye to the need for separate concrete mixer trucks or loaders, as our self-loading mixer truck masterfully accomplishes a range of tasks-loading, mixing, moving, and unloading-all in one powerful package.
One person operation: Experience seamless control with a cab and mixing drum that rotates 270 degrees synchronously, offering bidirectional travel. It's designed for solo operation with an excellent field of view, eliminating the need for ground personnel guidance.
Easy to operate: Engineered for simplicity and ease, this mixer truck requires no complex skills or experience. The front four and rear two tires are perfectly balanced, offering flexible steering and effortless handling for any operator.
High flexibility: Thanks to its compact design, this mixer is agile enough to maneuver through narrow construction sites and intricate road conditions, making it adaptable to various construction environments.
Easy unloading: The rotating tank enables precise unloading of concrete at your chosen location, significantly enhancing unloading efficiency and accuracy.
Wide applicability: Ideally suited for extensive construction sites, rural developments, and similar projects, this mixer truck satisfies the demands of large-scale concrete construction effortlessly.
Stable and reliable: Equipped with imported main hydraulic components, the system offers unparalleled stability and reliability, ensuring smooth and consistent operation.
Detailed Photos
1-Automatic hydraulic chute: Designed for effortless operation, this feature ensures seamless concrete pouring, maximizing efficiency and precision with ease.
2-High efficiency bucket vibrator: Experience unparalleled mixing consistency and speed with our advanced vibrator system, engineered for superior performance.
3-Wear resistant bucket: Crafted with robust materials, our bucket promises unmatched durability, standing the test of time in even the most demanding conditions.
4-Four tugboats have good stability: Built for stability, our four-tugboat design guarantees a smooth ride, ensuring reliable performance on any terrain.
5-Helical mixing blade: Engineered to perfection, these blades deliver exceptional mixing efficiency, ensuring a homogeneous concrete mix every time.
6-Turbocharged engine: Boasting power and efficiency, our engine is turbocharged to deliver unparalleled performance, enhancing productivity with every drive.
7-Split weighted torque converter: This innovative converter enhances power distribution, providing optimal performance and control in variable conditions.
8-Heavy duty double brake reduction axle: Our axle design ensures robust braking power and enhanced safety, ready to tackle heavy-duty tasks with confidence.
9-High quality reducer: Built to High standards, this reducer ensures durability and reliability, offering top-notch performance in any environment.
10-Imported hydraulic motor: With precision engineering, our imported motor delivers exceptional power and efficiency, ensuring a superior operational experience.
11-Worm gear Fully sealed rotary table: For ultimate protection and smooth operation, our fully sealed table provides reliability in every rotation.
12-Luxury and Comfortable Cab: Experience unmatched comfort and style with our luxury cab, designed for the discerning operator who values both function and form.
13-Comfortable car seats: Engineered with ergonomic design, our seats offer unparalleled comfort for those long hours on the job, reducing fatigue and increasing productivity.
14-Dual tire high load-bearing design: Our dual tire system ensures remarkable load-bearing capacity, providing stability and strength for all your heavy-duty needs.
15-Automatic metering of water supply: Achieve precision in every mix with our automatic metering system, designed to ensure the perfect water-to-cement ratio effortlessly.
Company Profile
1-Adopting cutting-edge laser technology for precision sheet cutting, ensuring superior accuracy and quality.
2-Utilizing state-of-the-art robotic automatic welding equipment, guaranteeing consistency and durability in every weld.
3-The frame's anti-corrosion treatment employs advanced electrophoretic technology, offering unparalleled protection and longevity.
4-The exterior components are treated with premium electrostatic powder coating technology, providing a sleek and resilient finish.
5-Employing high-precision CNC machine tools for boring machining, ensuring meticulous detail and exceptional quality.
6-Assembly is streamlined with the use of an AGV assembly line, enhancing efficiency and precision in the manufacturing process.
Packaging & Shipping
FAQ
Q: What value-added services can your company provide?
A:(1)After receiving your message, our project consultant will contact you within two hours to understand your project requirements.We have professional technical managers who can provide 2-3 sets ofsolutions for you according to your project with pictures, videos, parameters, configurations.Our engineers can provide different configurations according to your needs. (2)During normal technical and business communication, we can also provide free updates on equipment progress, free production supervision, and offer the most cost-effective packaging and shipping solution.
Q: How to ensure product quality?
A: Our company has obtained management system certifications such as ISO9001, ISO45001, ISO14001, etc. All machines are carefully inspected and quality controlled in strict accordance with Chinese national standards and international standards. Before shipment, we will test and inspect the equipment again to ensure that every machine we deliver to our customers has good performance.
Q: How to install, operate, and use the equipment?
A: Our company can provide free installation and operation videos. We have a professional after-sales service team, and our after-sales engineers provide installation and debugging training guidance to ensure that you have no worries when purchasing and using the machine.
Q: What after-sales services can you provide?
A: Our after-sales engineers can provide online technical guidance remotely at any time; (2) Due to non-human factors, the warranty period is 12 months after leaving the factory. If the spare parts are damaged due to product quality issues during the warranty period, we provide free spare parts and provide remote technical guidance; (3) Provide paid accessory supply beyond the warranty period.

---
