PCM, VCM Production Line for Home Appliances/Color Coating Line

Product Description

The color coating unit adopts double-coating double-baking model and hot air circulation heating process.
EQUIPMENT PARAMETERS:
Material of base plate: electro-galvanized plate, hot-dip galvanized plate, hot dip Al-Zn plate, cold-rolled steel plate , Aluminum Coils etc. Raw material:cold rolled strip,GI,GL,aluminum strip Thickness of strip steel: 0.12-1.8mm, Width of strip steel: 600-1650mm Outer diameter of steel coil: φ800-2000mm Process speed: 30 - 200m/min Coating thickness : 5-25μm for the single-layer dry film on the front face (regulated as required) 5-15μm for the single-layer dry film on the back face (regulated as required) Production capacity: 30,000-300,000 Tonnes/year Energy type: electricity, natural gas, liquefied petroleum gas, etc.

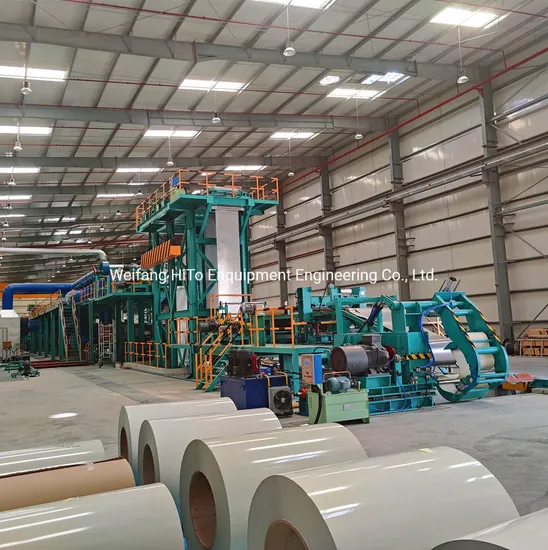

This is my company completed DUBAI Industry City color coating line project:
Process Flow of the color coating line:
We provide Pattern Printing System to produce pattern color coated steel, like the mood grain, marble/brick pattern and so on.
We offer the following services to our customers:
· Project feasibility
· Equipment design
· Installation and commissioning
· Technology transfer
· Training of operators and production personnel
· Product testing
· Downstream Equipment
· Ongoing technical support

Nominal Thickness	Allowable Deviation of Thickness in Case of the Following Thicknesses
	General Precision PT.A		High Precision PT.B
	≤1200	>1200-1500	≤1200	>120-1500
0.20-0.40	±0.05	±0.06	±0.03	±0.04
>0.40-0.60	±0.06	±0.07	±0.04	±0.05
>0.60-1.0	±0.07	±0.08	±0.05	±0.06

Factory
Recently, we have undertaken the site of the project
FAQ
Give us the connected electrical load of machine in KW
A: 850-1000 Kw
We insist all program software and HMI text should be in English language not in chinese.
A: Yes. All program software and HMI text are English language.
Can I choose a configuration
A:Yes,sure

---
