Zlp630 Work Platform for Window Cleaning / Zlp800 Cradle for Glass

Product Description

Zlp630 Work Platform for Window Cleaning / Zlp800 Cradle for Glass
Product Description
We are a factory specializing in the production of suspension platforms. Suspended platform is mainly composed by suspension mechanism, hoist, safety lock, electric control box, working platform.Its structure is reasonable and easy to operate.It can be assembled and disassembly accroding to the actual Demand.The cleaning platform is mainly used for refurbishment, decoration, cleaning and maintenance of high construction building.

Technical Parameter
Type	ZLP500	ZLP630	ZLP800	ZLP1000
Rated Load	500KG	630KG	800KG	1000KG
Platform Sise	5x0.69x1.18m	6x0.69x1.18m	7.5x0.69x1.18m	7.5x0.69x1.18m
Platform material	Aluminum Alloy type, steel type with hot galvanized,steel type with painting
Wire Rope Height	0-200m
Electrical Cable	(3x2.5+2x1.5mm2 )0-200m
Working height	0-200m
Steel rope	4pcsx100m,Ф8.3mm,Ф8.6mm,Ф9.1mm
Hoisting Machinery (Copper winding)	LTD5.0	LTD6.3	LTD8.0	LTD10.0
	1.5kwx2	1.5kwx2	1.8kwx2	2.2kwx2
	15KN	15KN	15KN	15KN
Lifting speed	9.3m/min ± 5%
Safety Lock	LSG20	LSG20	LSG30	LSG30
	20KN	20KN	30KN	30KN
	Locking Cable Angle: 3°~8°
Suspension mechanism Hot Galvanized	Front beam overhang: 1.3 m
	Support adjustable height: 1.1~1.6m
Power Source	380V/50HZ 3Phase, 220V/60HZ 3Phase , 220V/60HZ single phase
Counterweight	800kg	1000kg	1000kg	1200kg

Platform accessories
A.Features of Construction Hanging Scaffolding Zlp 800 Suspended Working Platform
1. Combination of the bottom platform
2. Convenient and reliable electric control system
3. Reasonable designed structure and Attractive appearance
4. The working height can be asjusted to customer need.
5.. The voltage and frequency can be changed according to different countries conditions.
6. The material of the suspended platform can be determined by customer: Steel material (finish treatment: power coated, hot dipping) or aluminum alloy material
7. Famous brand of galvanized stee wirel rope
8. The film of the ZLP Suspended platform is anti-corrosion( Steel material platform finish treatment is power coated or hot gavalnized could choosed; price will be different. )
B. Our CHINA ZLP800, ZLP1000, ZLP250, ZLP500, ZLP630 Suspended Platform|Cradle|Gondola|Swing Stage|Powered
Access Platform can be widely used parapet and complicated building in different height. And we can also supply customized platform to meet different requirements from customers.
1.The length of platform can be adjusted within 1M-30M.
2.The working height can be adjusted with your need.
3.The voltage can be adjusted with your need.
4.The platform materials can be adjusted with your need. 1) Aluminum alloy 2) Steel
C. Parts contains:
1. Suspended Cage: Steel or Aluminum Alloy (plastic coating or hot galvanization)
2. Suspension Mechanism: Steel (plastic coating or hot galvanization)
3. Electric hoists: LTD5, LTD6.3 or LTD8
4. Safety Lock: LSB30
5. Electric control box: Along with hoists
6. Steel wire rope: 8.3mm or 8.6mm
7. Power cable: 1.5mm²,2.5 mm², 4 mm² or 6 mm²
8. Counterweights: Cement or Cast Iron
9. Spare parts
D. Advantages of Construction Hanging Scaffolding Zlp 800 Suspended Working Platform
1. CE ISO international certificates.
2. One year guarantee time.
3. Special made can be accepted.
4. Factory direct sale.
Product detail
ZLP series Steel Suspended Platform As Fllowing:
ZLP series Aluminum Suspended Platform As Fllowing:

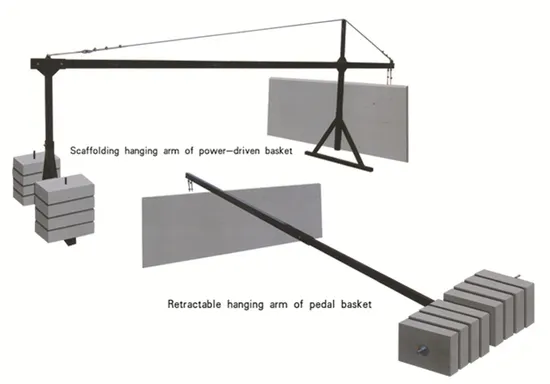

Products show Parts of Construction Hanging Scaffolding Zlp 800 Suspended Working Platform:
1. Platform(basket): Steel or Aluminum Alloy (painted or hot galvanized)
2. Suspension Mechanism: Steel (painted or hot galvanized) &Electric hoists:LTD6.3 or TD8.0&Safety Lock: LST30
FAQ
1. How much is this suspended platform?
Price will offer you immediately after telling us your requirements of loading capacity, material and voltage.
2. Are you a factory or trading company?
We are direct factory with 40,4000 square meters factory and supply qualified products with factory price.
3. What quality certificate you own for your products?
Our products own CCC, CE and ISO9001 certificate.
4. How about the price?
Please send us inquiry, a consideration solution or preferable will be sent within 24 hours.
5. Payment term?
T/T or L/C at sight.
6. Spare parts & guarantee?
If any parts get damaged because of quality within 12 months after shipping date. We will send new parts to replace right away.
7. Can you make suspended platform with our brand?
Yes.
8. Delivery time?
According to order quantity, 10-20 working days will be finished after getting the deposit.
Contact us Welcome to inquire and pay a visit to us!
1. After get your inquiry , will act within 12 hours
2. After confirming your exact requirement, we will give solution within 24 hours
3. Our salesman are all experienced and experts
4. We have strong sales support technicians team
5. We have strong manufacturing and quality control team
6. We have strong aftersale service team oversea travelling Iris Lu
Mob: 0086-13791021828 Tel /Fax: 0086-531-83821797
SHANDONG XINGDOU INTELLIGENT EQUIPMENT CO.,LTD.
JINAN TOPALL MACHINERY & EQUIPMENT CO.,LTD. (BRANCH)
Address:Eastern Industrial Park, Zhangqiu City, Shandong Province, 250200.China
Web:sdxingdou.en.made-in-china.com Web: sdxingdou.en.made-in-china.com

---
